Height-adjustable cassette for inspection opening, RKR, brass 105 | 155 | 25 | | R7

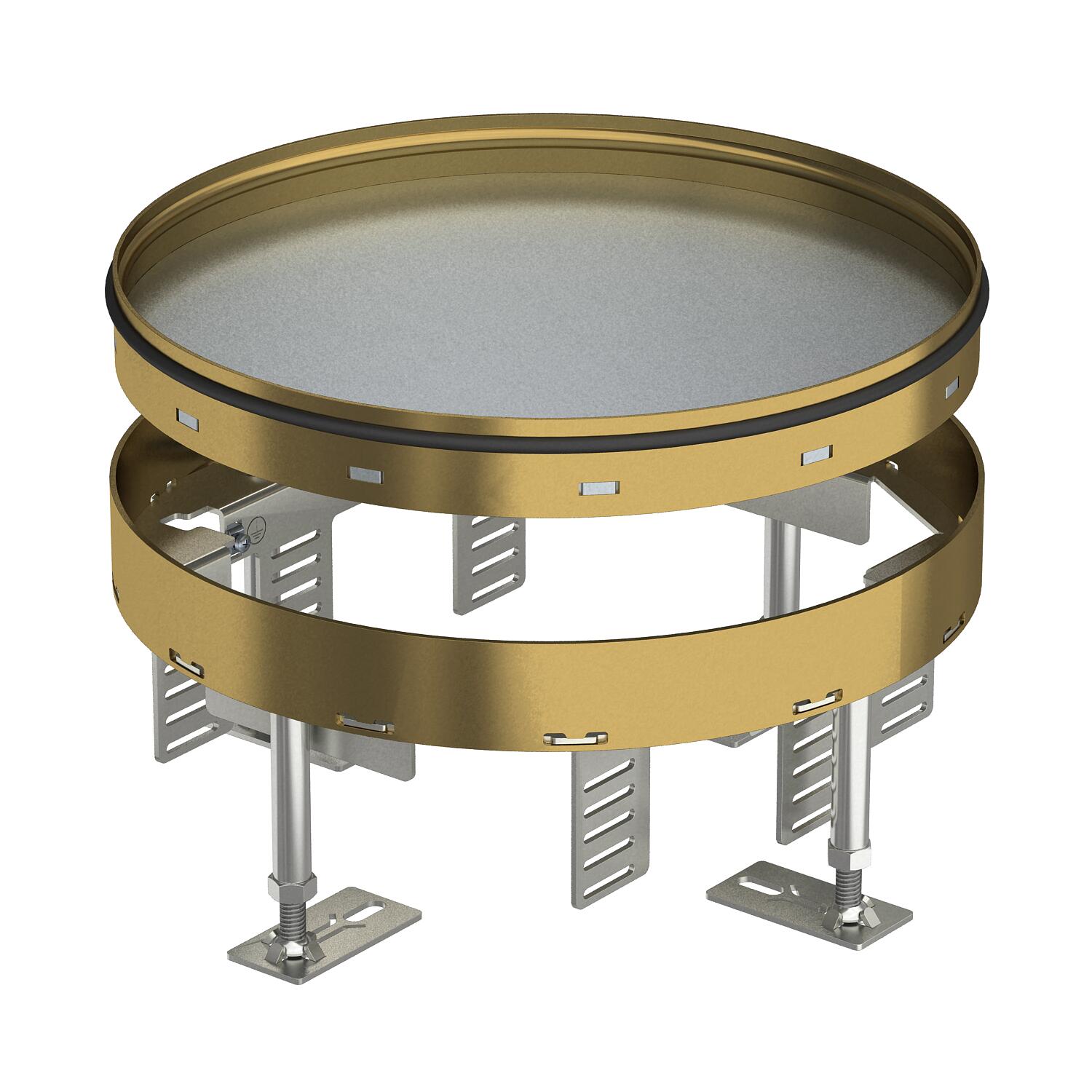

Height-adjustable cassette for inspection opening, RKR, brass

Item no. 7409104 | EAN 4012195868316

Item no. / Types	7409104 / RKR2 7M 25

Floor height, min.	105 mm

Floor height, max.	155 mm

Floor covering thickness	25 mm

Nominal size for device installation units	R7

Product description

Product description

Height-adjustable "blank" cassette for the creation of an inspection opening of nominal size R7 in dry or wet-cleaned floors for indoor use. Only suitable for smooth floor coverings.
Height-adjustable cassette as a blind cassette, 3-compartment. 2 APMT2 cover plates and 1 APMT5 cover plate can be installed. For the installation of 2 UT4 universal supports and one UT3 universal support for 7 individual installation devices with support ring/support clamp or 10 Modul 45 devices.

Technical data

Technical data

Approvals	VDE
Cable outlet version	No cable outlet
Decouplable	no
Device support to accept mounting boxes	no

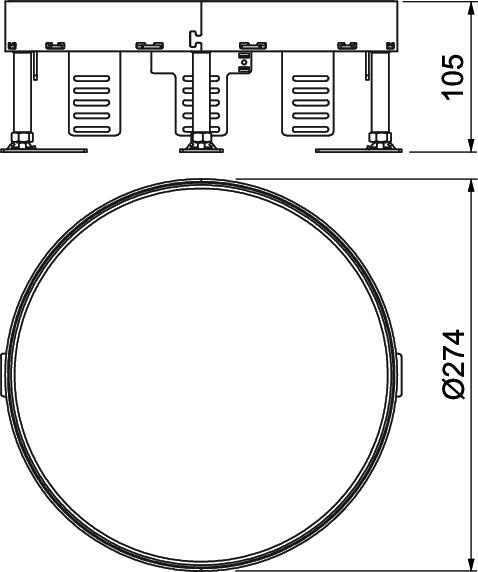

Dimension	Ø275mm
Dimension h	105 mm
Floor care	Wet
Floor covering thickness	25 mm
Floor height, max.	155 mm
Floor height, min.	105 mm
Heavy-duty version	no
Height-adjustment range, max.	155 mm
Height-adjustment range, min.	105 mm
Installation depth	105 mm
Installation diameter	275

Installation system type	UT3 / UT4
Length	274 mm
Material	Brass
Nominal size for device installation units	R7
Number of mounting boxes	3
Protection rating (IP) when unused	IP44
Protection rating (IP) when used	IP00
Protection rating IK code	IK10
Suitable for cavity floor installation	yes
Suitable for raised floor installation	yes
Version for	Round
Vertical load, large area	to 5,000 N
Vertical load, small area	to 3,000 N
Width	274 mm

All types

All types

Types	Floor height, min.	Floor height, max.	Floor covering thickness	Nominal size for device installation units	Item no.	Quantity	SSU
RKR2 7M 25	105 mm	155 mm	25 mm	R7	7409104	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Height adjustment unit RKNEV2	RK NEV2 110	7405815	PU	10 PU
Support plate 2 x type C for mounting support	MTM 2C	7407788	piece	15 piece
Mounting support for data technology connection sockets, system length 165 mm	MTU 2	7407836	piece	10 piece
Mounting support for data technology connection sockets, system length 208 mm	MTU 3	7407840	piece	10 piece
UT3 universal support, with cover plate for Modul 45® devices, system length 165 mm	UT3 45 3	7408723	piece	5 piece
UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm	UT4 45 4	7408727	piece	5 piece
