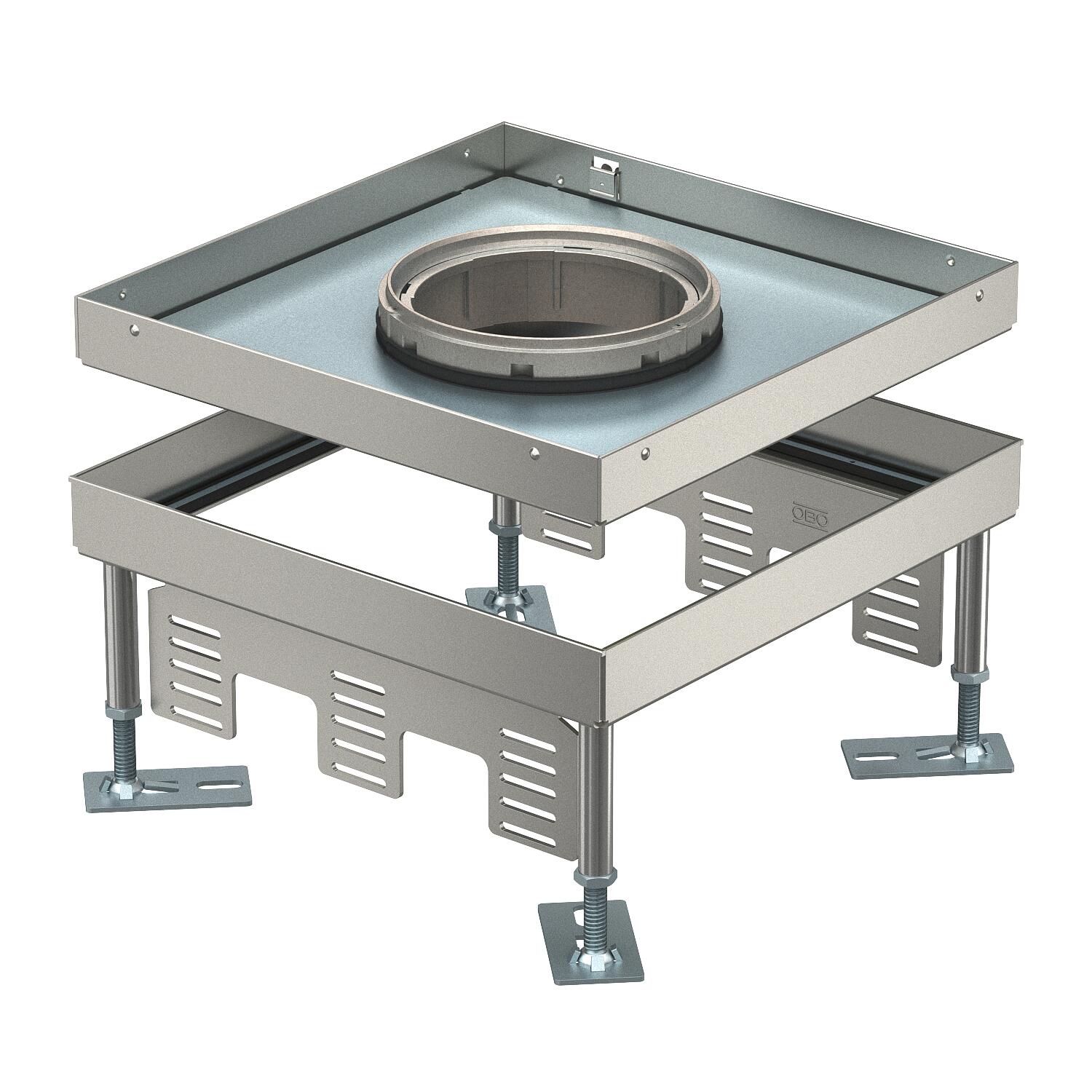

Height-adjustable cassette for tube body, RKFN, stainless steel

Item no. 7408980 | EAN 4012197278175

Lowerable tube body
9
Product description

Product description

Height-adjustable cassette for tube bodies of nominal size 9 for the installation of devices in duct systems, raised and cavity floors in interior dry or wet-care floors.


For the installation of three UT4 universal supports for nine single devices with support ring/support clamp or 12 Modul 45® devices. 3 APMT5 cover plates can be installed. The tube body is not contained in the scope of delivery.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 55
Technical data

Technical data

Approvals VDE
Cable outlet version Lowerable tube body
Decouplable no
Device support to accept mounting boxes no

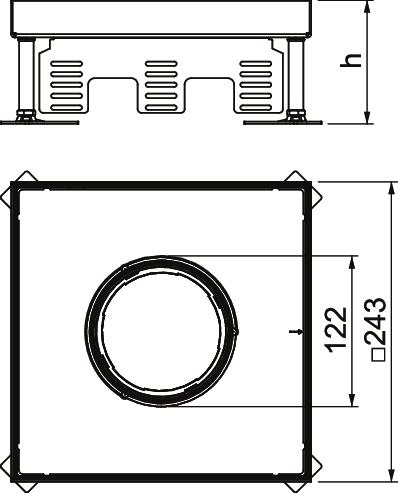

Dimension 243x243x100
Dimension h 105 mm
Floor care Wet
Floor covering thickness 20 mm
Floor cut-out / Mounting opening 244x244
Floor height, max. 150 mm
Floor height, min. 105 mm
Heavy-duty version no
Height 105 mm
Height-adjustment range, max. 150 mm
Height-adjustment range, min. 105 mm
Installation depth 105 mm
Installation system type UT4
Length 243 mm
Length of installation dimensions 244 mm
Material Stainless steel
Nominal size for device installation units 9
Number of cable outlets 1
Number of installable devices 12
Number of universal supports 3 x UT4
Protection rating (IP) when unused IP55
Protection rating (IP) when used IP20
Protection rating IK code IK10
Standard EN 50085-2-2
Suitable for cavity floor installation yes
Suitable for raised floor installation yes
Version for Square
Vertical load, large area to 10,000 N
Vertical load, small area to 3,000 N
Wide installation dimensions 244 mm
Width 243 mm
All types

All types

Types Floor height, min. Floor height, max. Floor covering thickness Dimension h Cable outlet version Nominal size for device installation units Item no. Quantity SSU
RKFN3 9 VS 20 105 mm 150 mm 20 mm 105 mm Lowerable tube body 9 7408980
1 piece
RKFN3 9 VS 25 110 mm 155 mm 25 mm 110 mm Lowerable tube body 9 7408982
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Tube body with cover plate, with handle clamp, for frame cassette and height-adjustable cassette Tube body with cover plate, with handle clamp, for frame cassette and height-adjustable cassette TUK2 GV 7428140
1 piece
Tube body with cover plate, without handle clamp, for frame cassette and height-adjustable cassette Tube body with cover plate, without handle clamp, for frame cassette and height-adjustable cassette TUK2 V 7428141
1 piece
Tube body with floor covering recess, with handle clamp, for frame cassette and height-adjustable cassette Tube body with floor covering recess, with handle clamp, for frame cassette and height-adjustable cassette TUK2 G4 7428142
1 piece
