- Product description
-
Product description

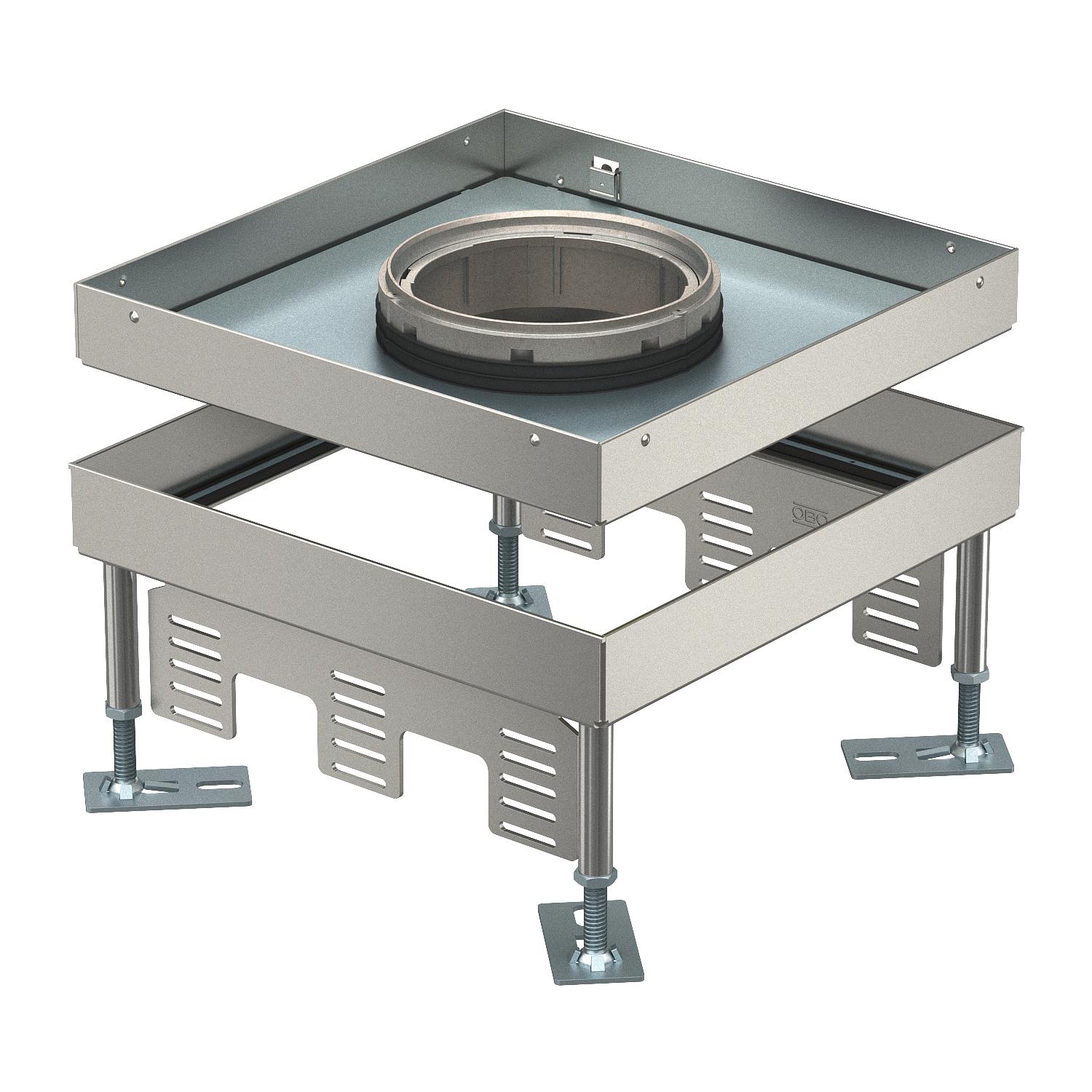

Height-adjustable cassette for tube bodies of nominal size 9 for the installation of devices in duct systems, raised and cavity floors in interior dry or wet-care floors.
For the installation of three UT4 universal supports for nine single devices with support ring/support clamp or 12 Modul 45® devices. 3 APMT5 cover plates can be installed. The tube body is not contained in the scope of delivery.
- Technical data
-
Technical data

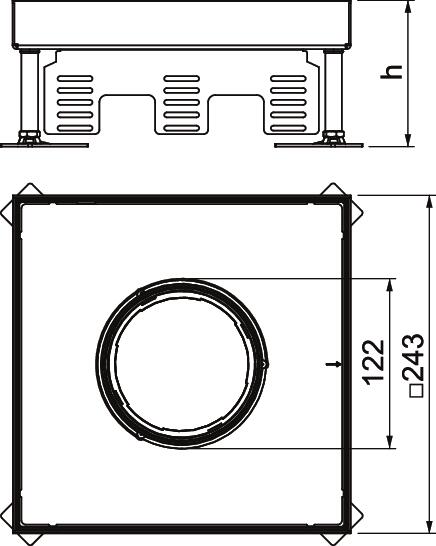

Approvals VDE Cable outlet version Lowerable tube body Decouplable no Device support to accept mounting boxes no Dimension 243x243x105 Dimension h 110 mm Floor care Wet Floor covering thickness 25 mm Floor cut-out / Mounting opening 244x244 Floor height, max. 155 mm Floor height, min. 110 mm Heavy-duty version no Height 110 mm Height-adjustment range, max. 155 mm Height-adjustment range, min. 110 mm Installation depth 110 mm Installation system type UT4 Length 243 mm Length of installation dimensions 244 mm Material Stainless steel Nominal size for device installation units 9 Number of cable outlets 1 Number of installable devices 12 Number of universal supports 3 x UT4 Protection rating (IP) when unused IP55 Protection rating (IP) when used IP20 Protection rating IK code IK10 Standard EN 50085-2-2 Suitable for cavity floor installation yes Suitable for raised floor installation yes Version for Square Vertical load, large area to 10,000 N Vertical load, small area to 3,000 N Wide installation dimensions 244 mm Width 243 mm - All types
-
All types
- Downloads
-
Data sheet RKFN3 9 VS 25 / 7408982 , 0.19MB , pdfDeclaration of conformity RKFN3 9 VS 25 / 7408982 , 0.15MB , pdfInstructions for use PF-G instructions for use , 2.00MB , pdf
