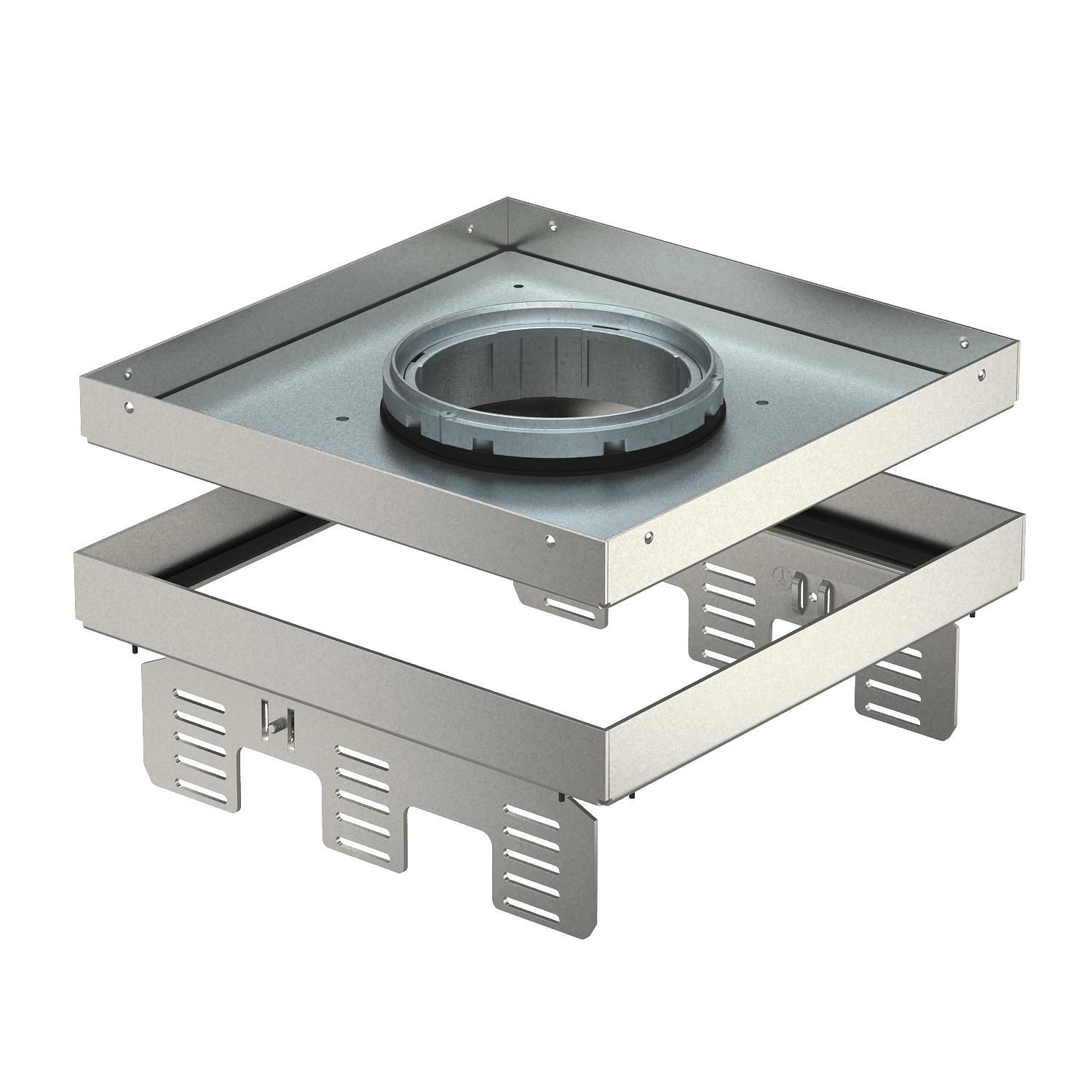

Height-adjustable cassette for tube body, RKFNUZD3, stainless steel | 105 | 20 | 90 | 9

Height-adjustable cassette for tube body, RKFNUZD3, stainless steel

Item no. 7409378 | EAN 4012195869146

Item no. / Types

Floor height, min.

Floor covering thickness

Dimension h

Nominal size for device installation units	9

Product description

Product description

Height-adjustable cassette, decoupled from the floor, of nominal size 9, for tube bodies, for the installation of accessories in dry or wet-cleaned floors for indoor use, for mounting in underfloor boxes UZD250 or UZD350, either in conjunction with a mounting lid DUG../9 or in UGD250-3/9 or UGD350-3/9. Mounting takes place using height adjustment brackets (order separately) in the aluminium frame profile of the underfloor boxes.
Height-adjustable cassette for tube body, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of three UT4 universal supports for nine single accessories with support ring/support clamp or 12 Modul 45 devices. The tube body is not contained in the scope of delivery.

Technical data

Technical data

Approvals	VDE
Cable outlet version	Lowerable tube body
Decouplable	yes
Device support to accept mounting boxes	no

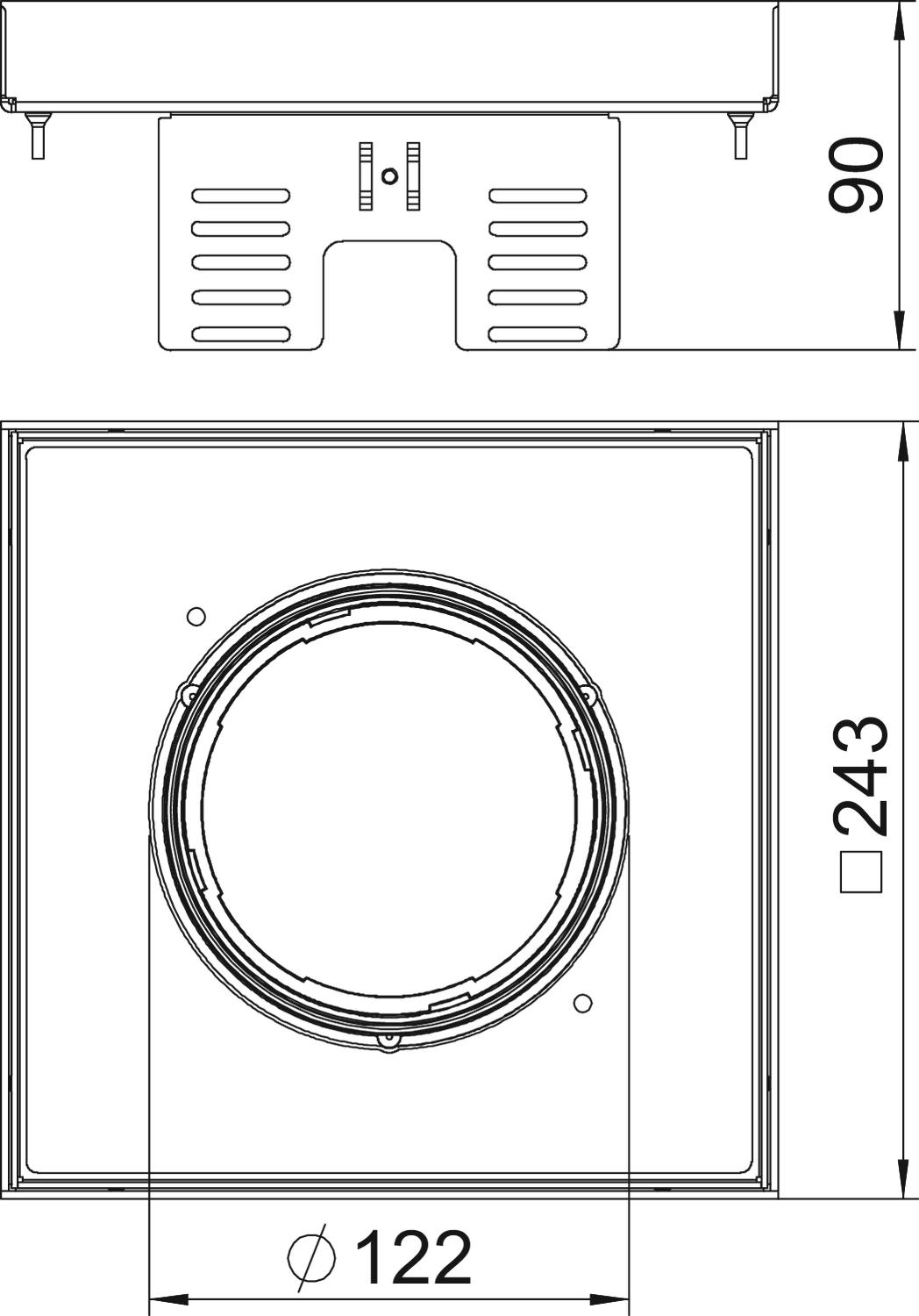

Dimension	243x243mm
Dimension h	90 mm
Floor care	Wet
Floor covering thickness	20 mm
Floor height, min.	105 mm
Heavy-duty version	no
Height	90 mm
Installation depth	105 mm
Installation system type	UT4
Length	243 mm

Length of installation dimensions	244 mm
Material	Stainless steel
Nominal size for device installation units	9
Number of cable outlets	1
Number of installable devices	12
Protection rating (IP) when unused	IP44
Protection rating (IP) when used	IP20
Protection rating IK code	IK10
Suitable for cavity floor installation	yes
Suitable for raised floor installation	yes
Version for	Square
Vertical load, large area	to 5,000 N
Wide installation dimensions	244 mm
Width	243 mm

All types

All types

Types	Floor height, min.	Floor covering thickness	Dimension h	Nominal size for device installation units	Item no.	Quantity	SSU
RKFN2UZD3 9VS20	105 mm	20 mm	90 mm	9	7409378	piece	1 piece
RKFN2UZD3 9VS25	110 mm	25 mm	95 mm	9	7409380	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Tube body with cover plate, with handle clamp, for frame cassette and height-adjustable cassette	TUK2 GV	7428140	piece	1 piece
Tube body with cover plate, without handle clamp, for frame cassette and height-adjustable cassette	TUK2 V	7428141	piece	1 piece
Tube body with floor covering recess, with handle clamp, for frame cassette and height-adjustable cassette	TUK2 G4	7428142	piece	1 piece
Support plate 2 x type C for mounting support	MTM 2C	7407788	piece	15 piece
Mounting support for data technology connection sockets, system length 208 mm	MTU 3	7407840	piece	10 piece
UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm	UT4 45 4	7408727	piece	5 piece
Height adjustment bracket for installation in UZD/UGD250-3 for one square cassette	NW 250-3 QK	7410540	piece	1 piece
Height adjustment bracket for installation in UGD350-3 for one square cassette	NW 350-3 QK	7410544	piece	1 piece
