Height-adjustable cassette with cord outlet, RKSN, stainless steel 110 | 155 | 25 | 110 | 4

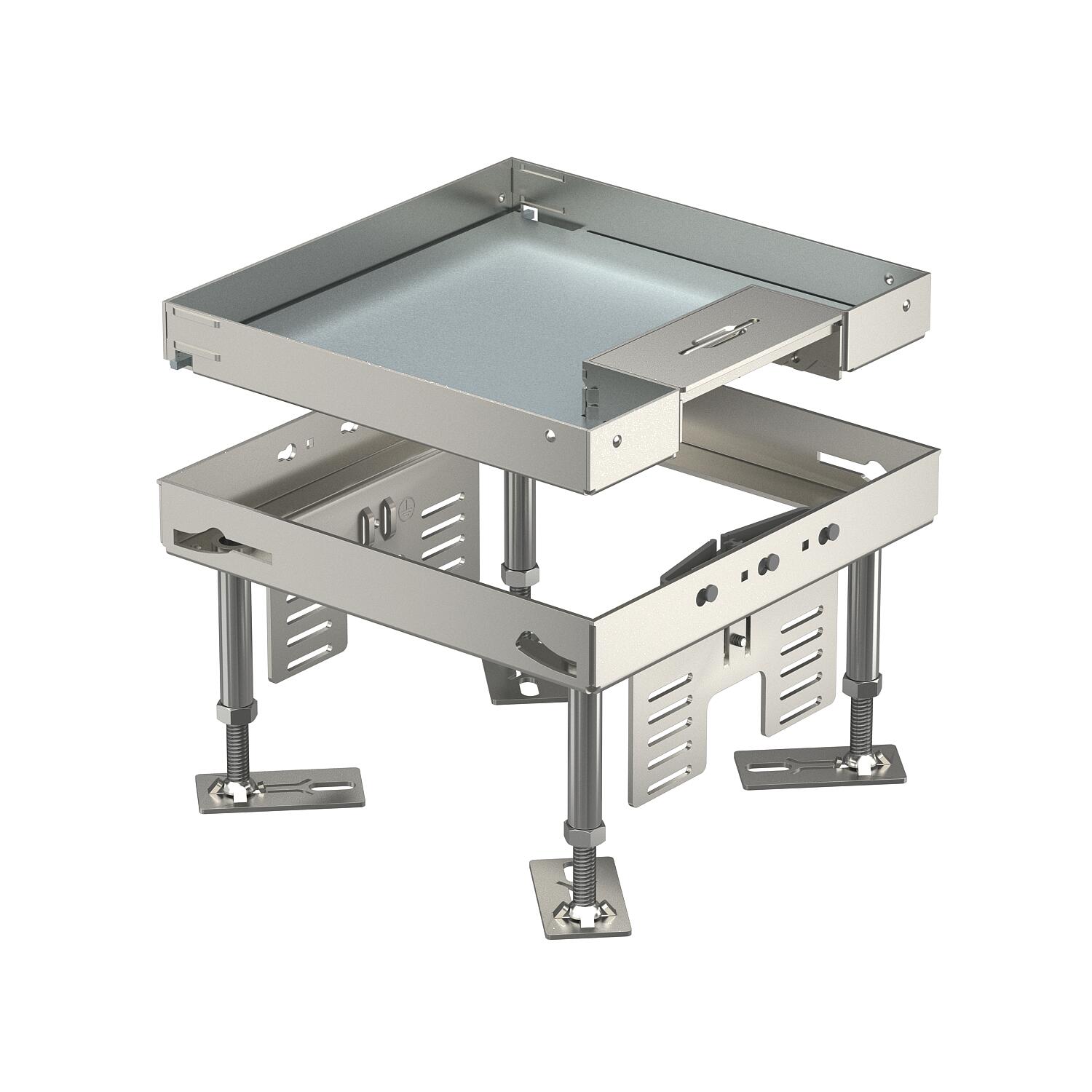

Height-adjustable cassette with cord outlet, RKSN, stainless steel

Item no. 7409210 | EAN 4012195867166

Item no. / Types

Floor height, min.

Floor height, max.

Floor covering thickness

Dimension h

Nominal size for device installation units	4

Product description

Product description

Height-adjustable cassette of nominal size 4 with cord outlet for installation of accessories in dry-cleaned floors for indoor use.
Height-adjustable cassette for cord outlet, 2-compartment. 2 APMT2 cover plates can be installed. For the installation of 2 UT3 universal supports for 4 individual installation devices with support ring/support clamp or 6 Modul 45 devices.

Technical data

Technical data

Approvals	VDE
Cable outlet version	Swivellable cord outlet
Decouplable	no
Device support to accept mounting boxes	yes

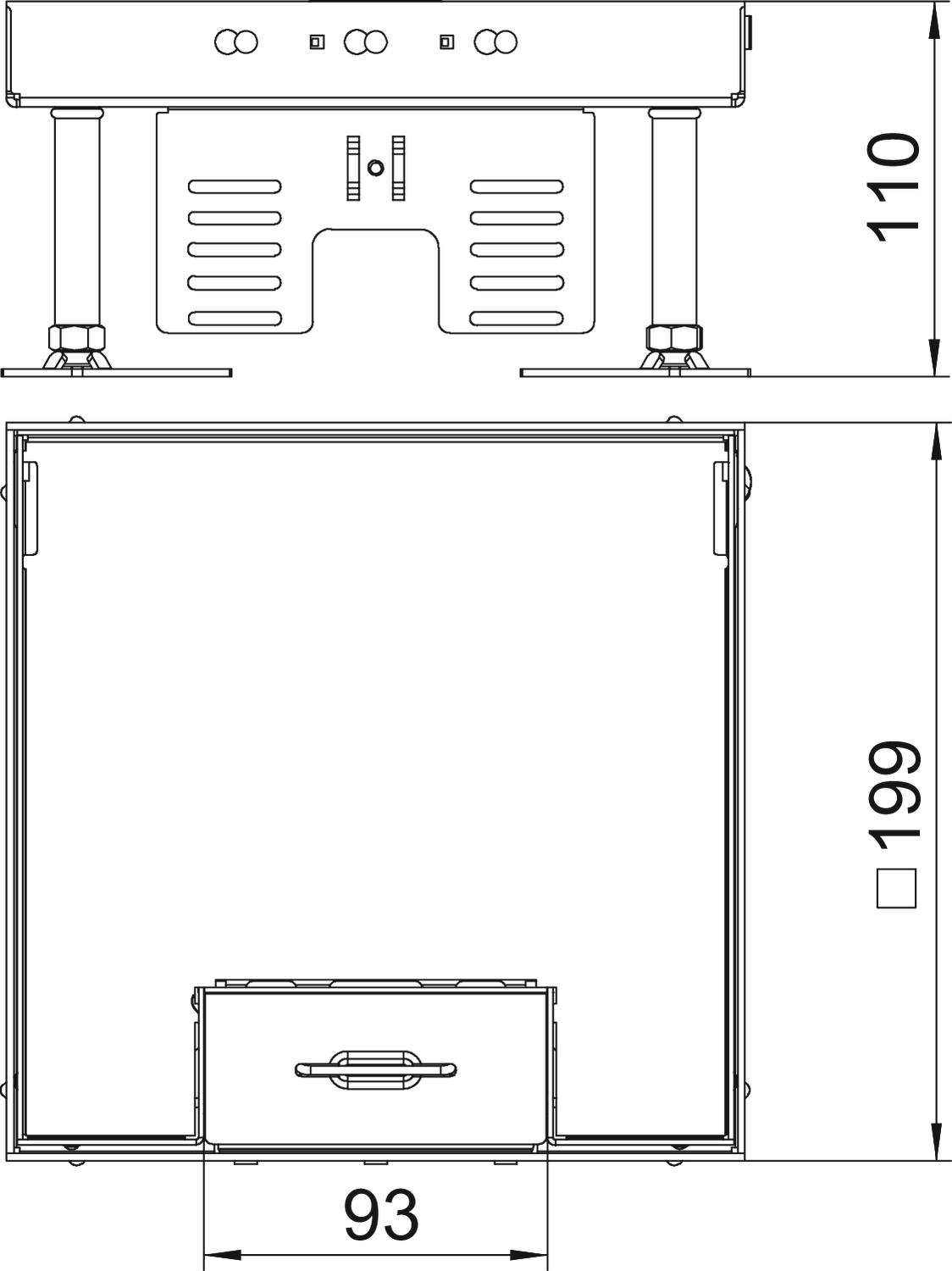

Dimension	200x200mm
Dimension h	110 mm
Floor care	Dry
Floor covering thickness	25 mm
Floor height, max.	155 mm
Floor height, min.	110 mm
Heavy-duty version	no
Height-adjustment range, max.	155 mm
Height-adjustment range, min.	110 mm
Installation depth	110 mm
Installation system type	UT3
Length	199 mm

Length of installation dimensions	201 mm
Material	Stainless steel
Nominal size for device installation units	4
Number of cable outlets	1
Number of installable devices	6
Number of mounting boxes	2
Protection rating (IP) when unused	IP40
Protection rating (IP) when used	IP20
Protection rating IK code	IK10
Suitable for cavity floor installation	yes
Suitable for raised floor installation	yes
Version for	Square
Vertical load, large area	to 15,000 N
Vertical load, small area	to 3,000 N
Wide installation dimensions	201 mm
Width	199 mm

All types

All types

Types	Floor height, min.	Floor height, max.	Floor covering thickness	Dimension h	Nominal size for device installation units	Item no.	Quantity	SSU
RKSN2 4 VS 20	105 mm	150 mm	20 mm	105 mm	4	7409208	piece	1 piece
RKSN2 4 VS 25	110 mm	155 mm	25 mm	110 mm	4	7409210	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Height adjustment unit RKNEV2	RK NEV2 110	7405815	PU	10 PU
Support plate 2 x type C for mounting support	MTM 2C	7407788	piece	15 piece
Mounting support for data technology connection sockets, system length 165 mm	MTU 2	7407836	piece	10 piece
UT3 universal support, with cover plate for Modul 45® devices, system length 165 mm	UT3 45 3	7408723	piece	5 piece
