Height-adjustable cassette with cord outlet, RKSNUZD3, stainless steel 105 | 90 | 20 | 4

Height-adjustable cassette with cord outlet, RKSNUZD3, stainless steel

Item no. 7409228 | EAN 4012195867265

Item no. / Types

Floor height, min.

Dimension h

Floor covering thickness

Nominal size for device installation units	4

Product description

Product description

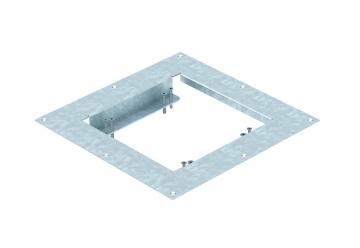

Height-adjustable cassette, decoupled from the floor, of nominal size 4, with cord outlet, for the installation of accessories in dry-cleaned floors indoors, for mounting in underfloor boxes UZD250 or UZD350, either in conjunction with a mounting cover DUG../4 or in UGD250-3/4 or UGD350-3/4. Mounting takes place using height-adjustment brackets (order separately) in the aluminium frame profile of the underfloor boxes.
Height-adjustable cassette for cord outlet, 2-compartment. 2 APMT2 cover plates can be installed. For the installation of 2 UT3 universal supports for 4 individual installation devices with support ring/support clamp or 6 Modul 45 devices.

Technical data

Technical data

Approvals	VDE
Cable outlet version	Swivellable cord outlet
Decouplable	yes
Device support to accept mounting boxes	yes
Dimension	200x200mm
Dimension h	90 mm
Floor care	Dry
Floor covering thickness	20 mm
Floor height, min.	105 mm
Heavy-duty version	no
Height	90 mm
Installation depth	105 mm
Installation system type	UT3
Length	199 mm
Length of installation dimensions	201 mm
Material	Stainless steel

Nominal size for device installation units	4
Number of cable outlets	1
Number of installable devices	6
Number of mounting boxes	2
Protection rating (IP) when unused	IP40
Protection rating (IP) when used	IP20
Protection rating IK code	IK10
Screed height, min.	105 mm
Standard	EN 50085-2-2
Suitable for cavity floor installation	yes
Suitable for raised floor installation	yes
Version for	Square
Vertical load, large area	to 10,000 N
Vertical load, small area	to 3,000 N
Wide installation dimensions	201 mm
Width	199 mm

All types

All types

Types	Floor height, min.	Dimension h	Floor covering thickness	Nominal size for device installation units	Item no.	Quantity	SSU
RKSN2 UZD3 4VS20	105 mm	90 mm	20 mm	4	7409228	piece	1 piece
RKSN2 UZD3 4VS25	110 mm	95 mm	25 mm	4	7409230	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Support plate 2 x type C for mounting support	MTM 2C	7407788	piece	15 piece
Mounting support for data technology connection sockets, system length 165 mm	MTU 2	7407836	piece	10 piece
UT3 universal support, with cover plate for Modul 45® devices, system length 165 mm	UT3 45 3	7408723	piece	5 piece
Height adjustment bracket for installation in UZD/UGD250-3 for one square cassette	NW 250-3 QK	7410540	piece	1 piece
Height adjustment bracket for installation in UGD350-3 for one square cassette	NW 350-3 QK	7410544	piece	1 piece
