Height-adjustable cassette with cord outlet, RKSNUZD3, stainless steel
Item no. 7409240 | EAN 4012195867333
- Product description
-
Product descriptionHeight-adjustable cassette, decoupled from the floor, of nominal size 9, with cord outlet, for the installation of accessories in dry-cleaned floors indoors, for mounting in underfloor boxes UZD250 or UZD350, either in conjunction with a mounting cover DUG../9 or in UGD250-3/9 or UGD350-3/9. Mounting takes place using height-adjustment brackets (order separately) in the aluminium frame profile of the underfloor boxes.
Height-adjustable cassette for cord outlet, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of 3 UT4 universal supports for 9 individual installation devices with support ring/support clamp or 12 Modul 45 devices.
-
- Technical data
-
Technical data
Approvals VDE Cable outlet version Swivellable cord outlet Decouplable yes Device support to accept mounting boxes yes Dimension 243x243mm Dimension h 95 mm Floor care Dry Floor covering thickness 25 mm Floor height, min. 110 mm Heavy-duty version no Height 95 mm Installation depth 110 mm Installation system type UT4 Length 243 mm Length of installation dimensions 244 mm Material Stainless steel Nominal size for device installation units 9 Number of cable outlets 1 Number of installable devices 12 Number of mounting boxes 3 Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK10 Screed height, min. 110 mm Standard EN 50085-2-2 Suitable for cavity floor installation yes Suitable for raised floor installation yes Version for Square Vertical load, large area to 10,000 N Vertical load, small area to 3,000 N Wide installation dimensions 244 mm Width 243 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Support plate 2 x type C for mounting support
MTM 2C 7407788 15 piece
Mounting support for data technology connection sockets, system length 208 mm
MTU 3 7407840 10 piece

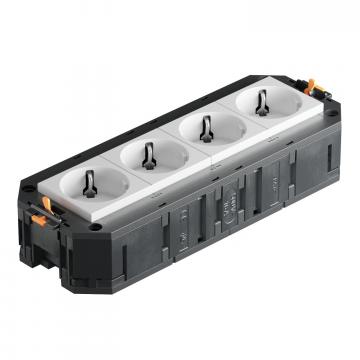

UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm
UT4 45 4 7408727 5 piece
Height adjustment bracket for installation in UZD/UGD250-3 for one square cassette
NW 250-3 QK 7410540 1 piece
Height adjustment bracket for installation in UGD350-3 for one square cassette
NW 350-3 QK 7410544 1 piece Mounting accessories
Products Types Item no. Quantity SSU
Suction lifter, 300 N
WZ 1029 7408634 1 piece - Downloads
-
Data sheet RKSN2 UZD3 9VS25 / 7409240 , 0.20MB , pdfEU declaration of conformity RKSN2 UZD3 9VS25 / 7409240 , 0.13MB , pdfUK Declaration of Conformity RKSN2 UZD3 9VS25 / 7409240 , 0.14MB , pdfLabel approval VDE symbol approval, RK RKN , 0.18MB , pdfMounting instructions Mounting instructions RKSN2 UZD , 0.07MB , pdfNo invitation to tender text is available for this product.
