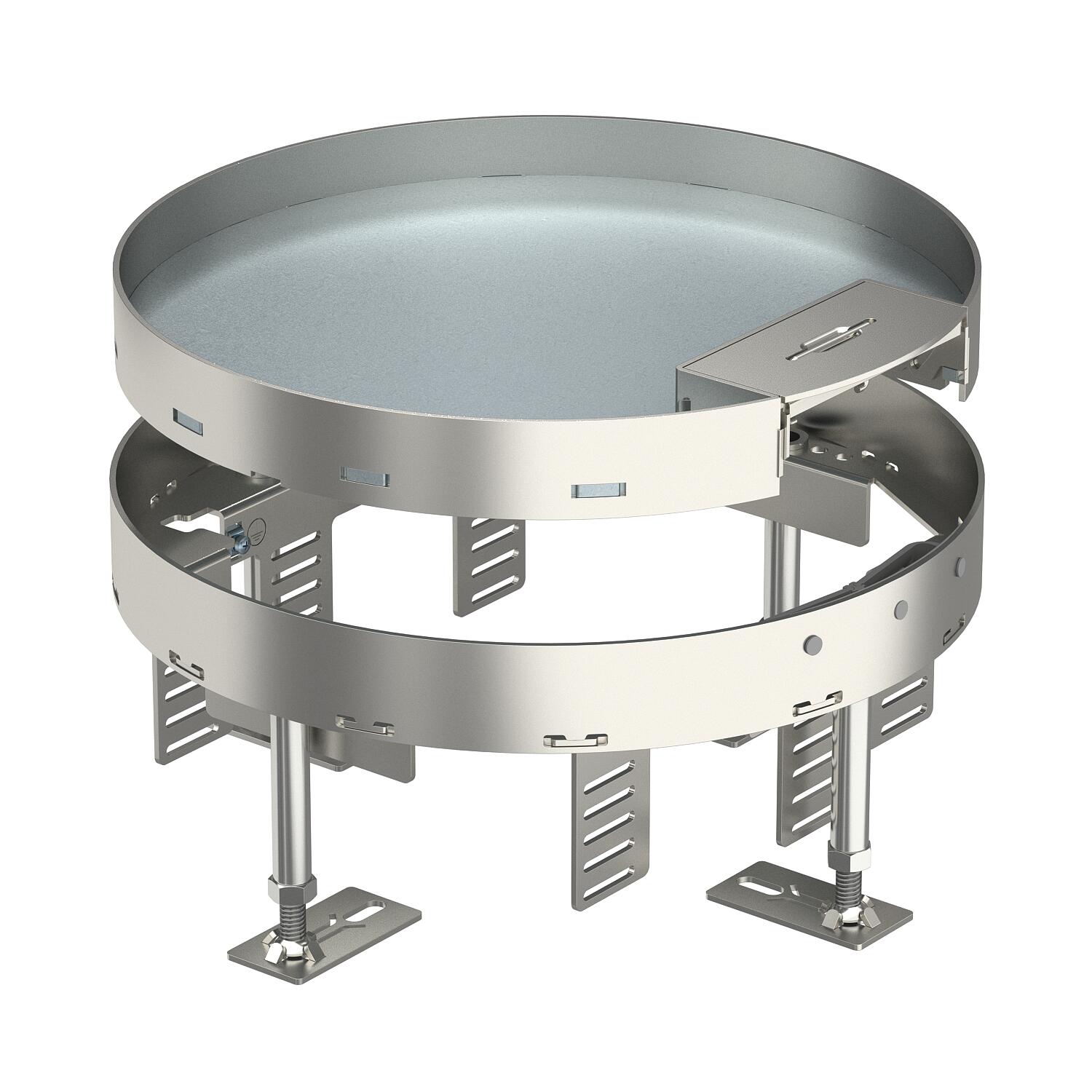

Height-adjustable cassette with cord outlet, RKSR, stainless steel
Item no. 7409270 | EAN 4012195867487
- Product description
-
Product description
Height-adjustable cassette of nominal size R7 with cord outlet for installation of accessories in dry-care floors for indoor use.
Height-adjustable cassette for cord outlet, 3-compartment. 2 APMT2 cover plates and 1 APMT5 cover plate can be installed. For the installation of 2 UT3 universal supports and one UT4 universal support for 7 individual installation devices with support ring/support clamp or 10 Modul 45 devices.
-
- Technical data
-
Technical data

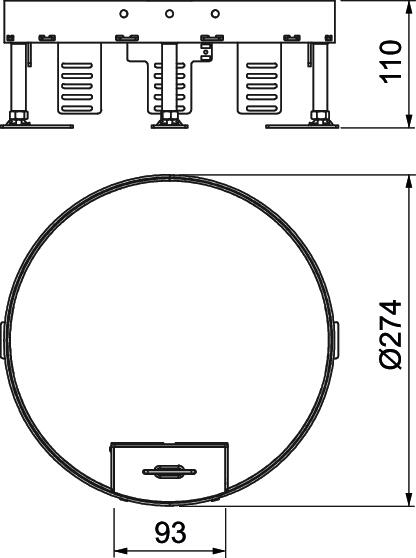

Approvals VDE Cable outlet version Swivellable cord outlet Decouplable no Device support to accept mounting boxes yes Dimension Ø275mm Dimension h 110 mm Floor care Dry Floor covering thickness 25 mm Floor height, max. 155 mm Floor height, min. 110 mm Heavy-duty version no Height-adjustment range, max. 155 mm Height-adjustment range, min. 110 mm Installation depth 110 mm Installation diameter 275 Installation system type UT3 / UT4 Length 274 mm Material Stainless steel Nominal size for device installation units R7 Number of cable outlets 1 Number of installable devices 10 Number of mounting boxes 3 Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK10 Suitable for cavity floor installation yes Suitable for raised floor installation yes Version for Round Vertical load, large area to 5,000 N Vertical load, small area to 3,000 N Width 274 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Height adjustment unit RKNEV2
RK NEV2 110 7405815 10 PU
Support plate 2 x type C for mounting support
MTM 2C 7407788 15 piece
Mounting support for data technology connection sockets, system length 165 mm
MTU 2 7407836 10 piece
Mounting support for data technology connection sockets, system length 208 mm
MTU 3 7407840 10 piece
UT3 universal support, with cover plate for Modul 45® devices, system length 165 mm
UT3 45 3 7408723 5 piece
UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm
UT4 45 4 7408727 5 piece Mounting accessories
Products Types Item no. Quantity SSU
Suction lifter, 300 N
WZ 1029 7408634 1 piece - Downloads
-
Data sheet RKS2 R7 V25 / 7409270 , 0.20MB , pdfLabel approval VDE symbol approval, RK RKN , 0.18MB , pdfNo invitation to tender text is available for this product.
