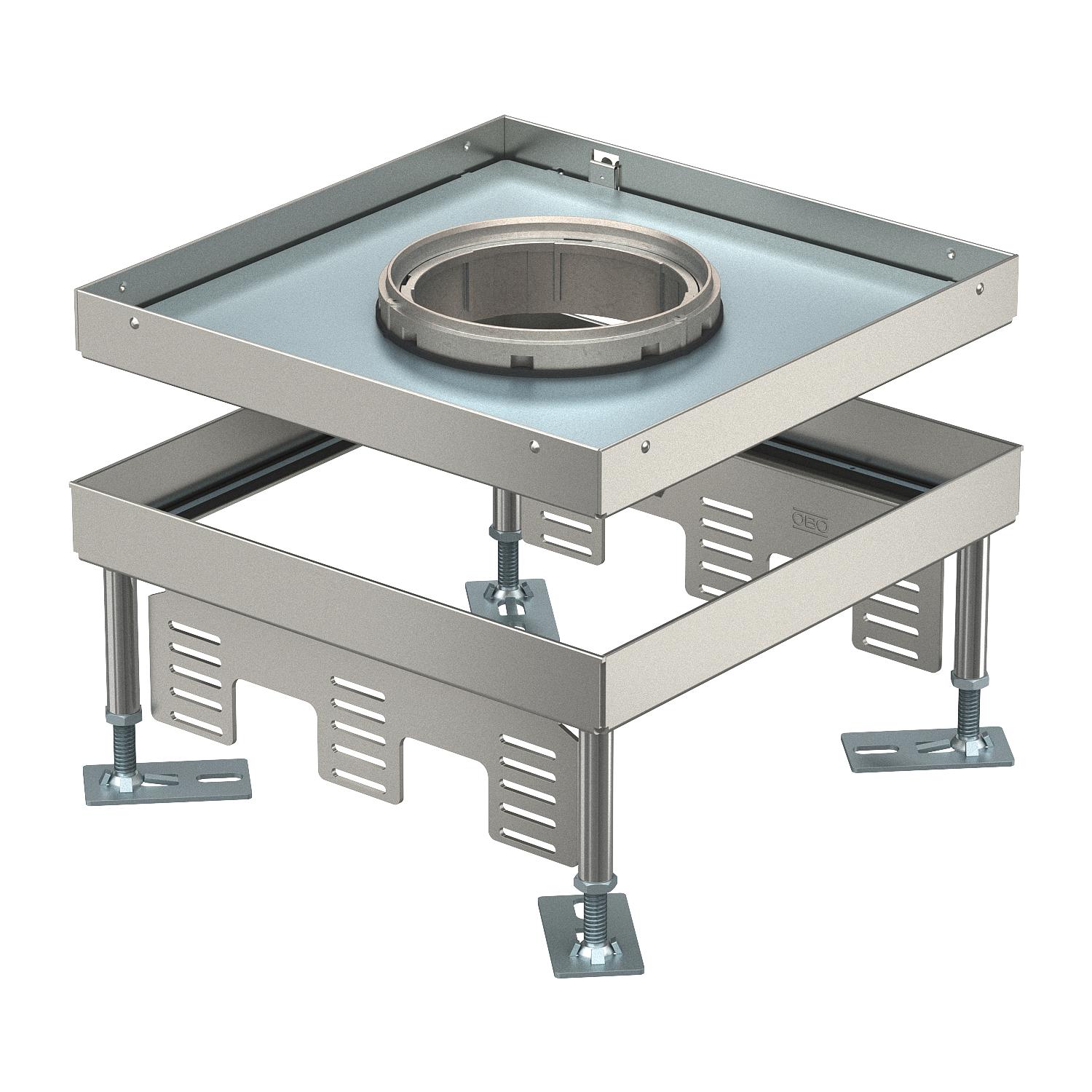

Height-adjustable heavy-duty cassette for tube body RKFNSL, nominal size 9, stainless steel

Item no. 7408938 | EAN 4012197278298

9
IP55
Product description

Product description

Height-adjustable heavy-duty cassette for tube bodies of nominal size 9 for the installation of devices in duct systems, raised and cavity floors in interior dry or wet-care floors. Load class 1 to 10 kN.
For the installation of three UT4 universal supports for nine single devices with support ring/support clamp or 12 Modul 45® devices. 3 APMT5 cover plates can be installed. The tube body is not contained in the scope of delivery.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 55
Technical data

Technical data

Approvals VDE
Cable outlet version Lowerable tube body
Decouplable no
Device support to accept mounting boxes no

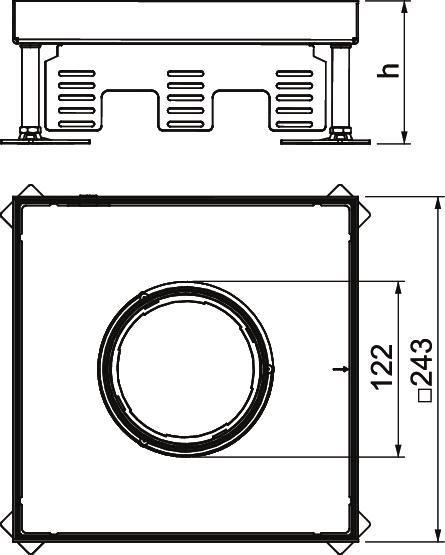

Dimension 243x243x100
Dimension h 105 mm
Floor care Wet
Floor covering thickness 16 mm
Floor cut-out / Mounting opening 244x244
Floor height, max. 150 mm
Floor height, min. 105 mm
Heavy load class 10 kN (OBO SL1)
Heavy-duty version yes
Height 105 mm
Height-adjustment range, max. 150 mm
Height-adjustment range, min. 105 mm
Installation depth 105 mm
Installation system type UT4
Length 243 mm
Length of installation dimensions 244 mm
Material Stainless steel
Nominal size for device installation units 9
Number of cable outlets 1
Number of installable devices 12
Number of universal supports 3 x UT4
Protection rating (IP) when unused IP55
Protection rating (IP) when used IP20
Protection rating IK code IK10
Standard EN 50085-2-2
Suitable for cavity floor installation yes
Suitable for raised floor installation yes
Version for Square
Wide installation dimensions 244 mm
Width 243 mm
All types

All types

Types Floor height, min. Floor height, max. Floor covering thickness Dimension h Nominal size for device installation units Protection rating (IP) when unused Item no. Quantity SSU
RKFN3 9 V SL1 16 105 mm 150 mm 16 mm 105 mm 9 IP55 7408938
1 piece
RKFN3 9 V SL1 21 110 mm 155 mm 21 mm 110 mm 9 IP55 7408940
1 piece
