Height-adjustable heavy-duty cassette for tube body RKFNSL, nominal size 9, stainless steel 110 | 155 | 21 | 110 | 9 | IP55

Height-adjustable heavy-duty cassette for tube body RKFNSL, nominal size 9, stainless steel

Item no. 7408940 | EAN 4012197278304

Item no. / Types

Floor height, min.

Floor height, max.

Floor covering thickness

Dimension h

Nominal size for device installation units	9

Protection rating (IP) when unused	IP55

Product description

Product description

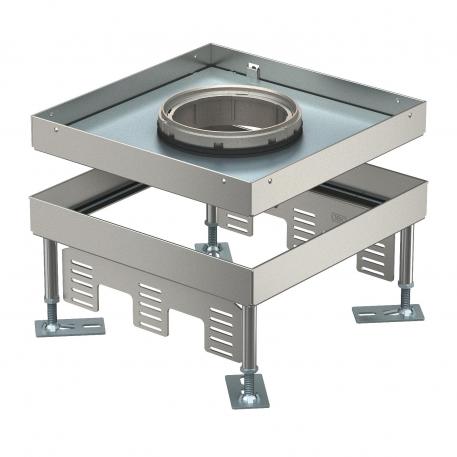

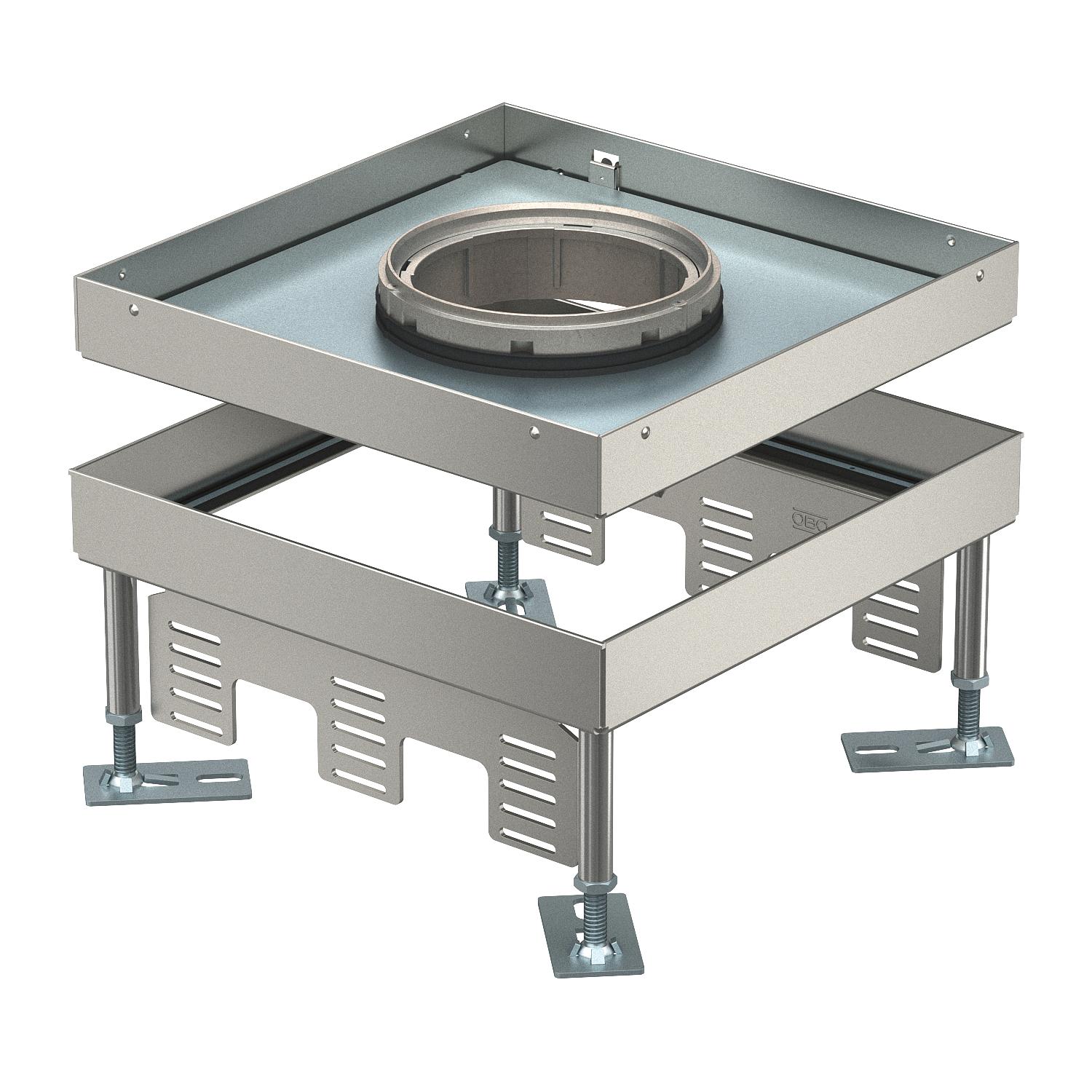

Height-adjustable heavy-duty cassette for tube bodies of nominal size 9 for the installation of devices in duct systems, raised and cavity floors in interior dry or wet-care floors. Load class 1 to 10 kN.
For the installation of three UT4 universal supports for nine single devices with support ring/support clamp or 12 Modul 45® devices. 3 APMT5 cover plates can be installed. The tube body is not contained in the scope of delivery.

Technical data

Technical data

Approvals	VDE
Cable outlet version	Lowerable tube body
Decouplable	no
Device support to accept mounting boxes	no

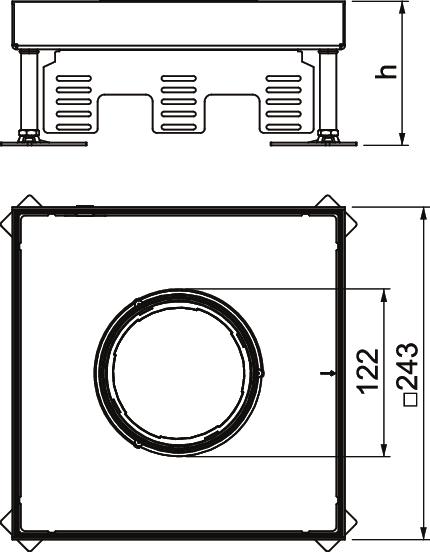

Dimension	243x243x105
Dimension h	110 mm
Floor care	Wet
Floor covering thickness	21 mm
Floor cut-out / Mounting opening	244x244
Floor height, max.	155 mm
Floor height, min.	110 mm
Heavy load class	10 kN (OBO SL1)
Heavy-duty version	yes
Height	110 mm
Height-adjustment range, max.	155 mm
Height-adjustment range, min.	110 mm
Installation depth	110 mm

Installation system type	UT4
Length	243 mm
Length of installation dimensions	244 mm
Material	Stainless steel
Nominal size for device installation units	9
Number of cable outlets	1
Number of installable devices	12
Number of universal supports	3 x UT4
Protection rating (IP) when unused	IP55
Protection rating (IP) when used	IP20
Protection rating IK code	IK10
Standard	EN 50085-2-2
Suitable for cavity floor installation	yes
Suitable for raised floor installation	yes
Version for	Square
Wide installation dimensions	244 mm
Width	243 mm

All types

All types

Types	Floor height, min.	Floor height, max.	Floor covering thickness	Dimension h	Nominal size for device installation units	Protection rating (IP) when unused	Item no.	Quantity	SSU
RKFN3 9 V SL1 16	105 mm	150 mm	16 mm	105 mm	9	IP55	7408938	piece	1 piece
RKFN3 9 V SL1 21	110 mm	155 mm	21 mm	110 mm	9	IP55	7408940	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Tube body with cover plate, with handle clamp, for frame cassette and height-adjustable cassette	TUK2 GV	7428140	piece	1 piece
Tube body with cover plate, without handle clamp, for frame cassette and height-adjustable cassette	TUK2 V	7428141	piece	1 piece
Tube body with floor covering recess, with handle clamp, for frame cassette and height-adjustable cassette	TUK2 G4	7428142	piece	1 piece
