Height-adjustable heavy-duty cassette for tube body RKFRSL, nominal size R4, stainless steel 114 | 159 | 25 | 114 | R4

Height-adjustable heavy-duty cassette for tube body RKFRSL, nominal size R4, stainless steel

Item no. 7409464 | EAN 4012195869702

Item no. / Types

Floor height, min.

Floor height, max.

Floor covering thickness

Dimension h

Nominal size for device installation units	R4

Product description

Product description

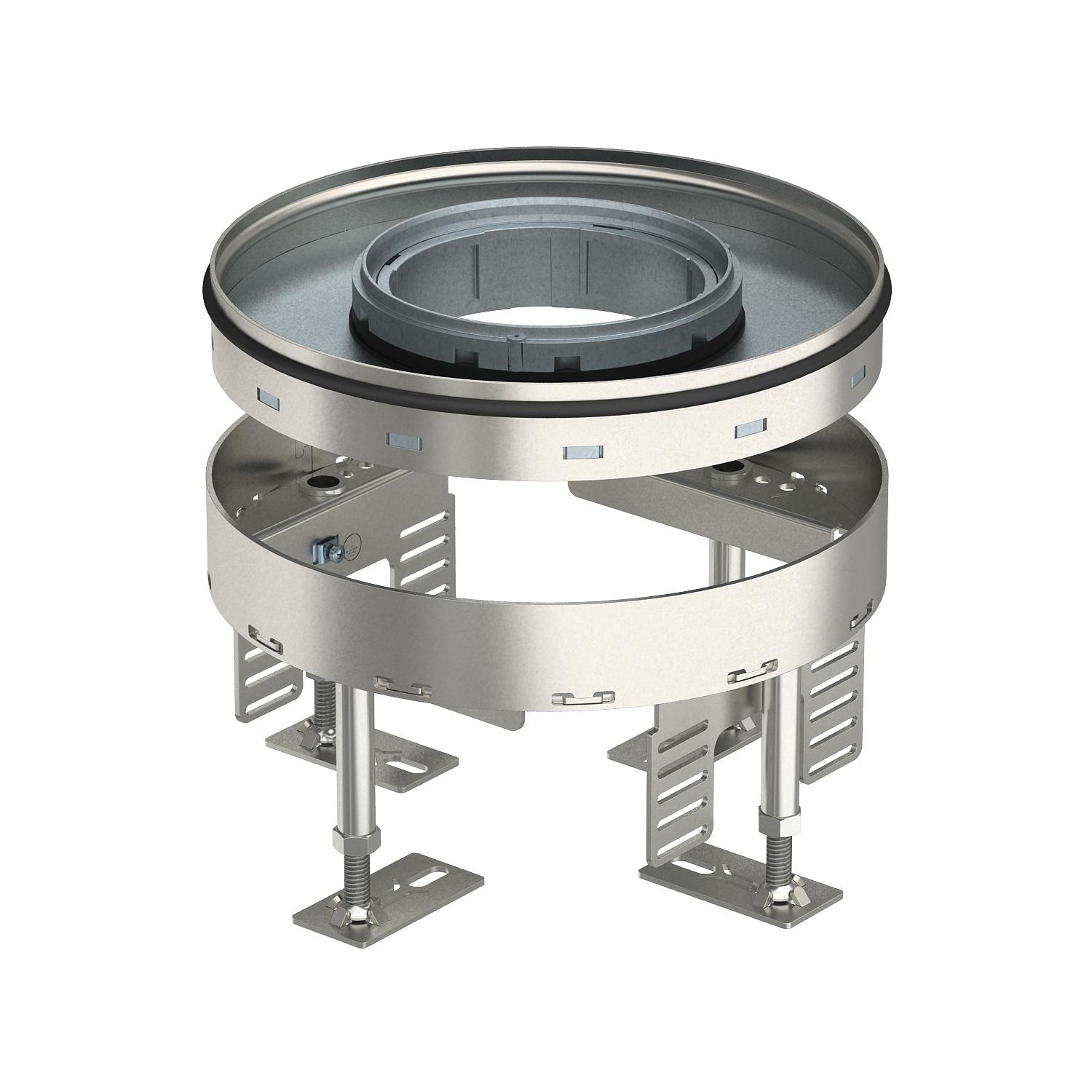

Round heavy-duty cassette for tube body of nominal size R4 for the installation of accessories in trunking systems, raised and cavity floors, in dry or wet-cleaned floors indoors. Load class 2 to 20 kN.
Height-adjustable heavy-duty cassette with tube body with a load bearing capacity of 2-20 kN, 2-compartment. 2 APMT2 cover plates can be installed. For the installation of two UT3 universal supports for four single accessories with support ring/support clamp or six Modul 45 devices. The tube body is not contained in the scope of delivery.

Technical data

Technical data

Cable outlet version	Lowerable tube body
Decouplable	no
Device support to accept mounting boxes	yes

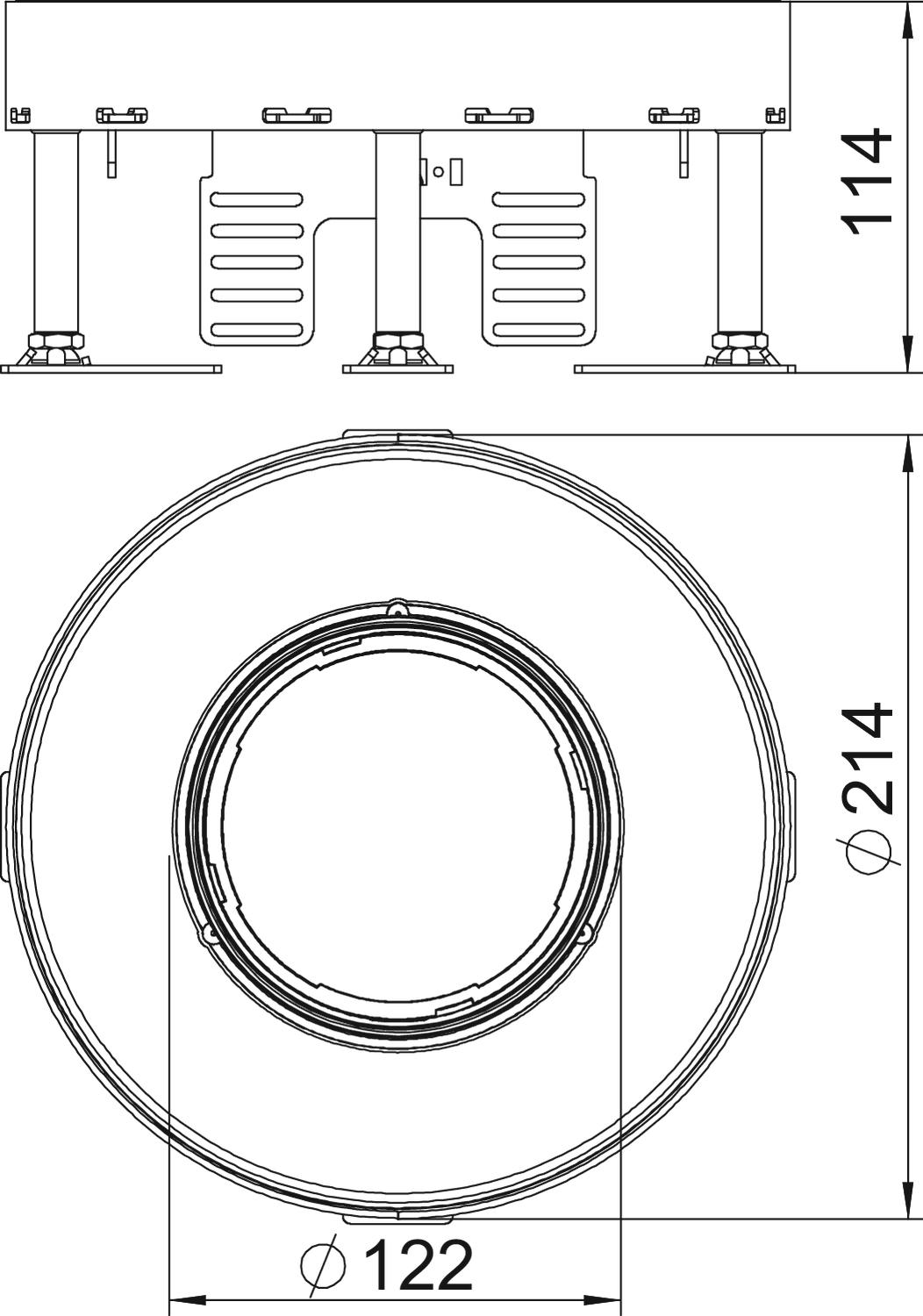

Dimension	Ø215mm
Dimension h	114 mm
Floor care	Wet
Floor covering thickness	25 mm
Floor height, max.	159 mm
Floor height, min.	114 mm
Heavy load class	20 kN (OBO SL2)
Heavy-duty version	yes
Height-adjustment range, max.	159 mm
Height-adjustment range, min.	114 mm
Installation depth	114 mm

Installation diameter	215
Installation system type	UT3
Material	Stainless steel
Nominal size for device installation units	R4
Number of cable outlets	1
Number of installable devices	6
Number of mounting boxes	2
Protection rating (IP) when unused	IP44
Protection rating (IP) when used	IP20
Protection rating IK code	IK10
Suitable for cavity floor installation	yes
Suitable for raised floor installation	yes
Version for	Round

All types

All types

Types	Floor height, min.	Floor height, max.	Floor covering thickness	Dimension h	Nominal size for device installation units	Item no.	Quantity	SSU
RKFR2 4 SL2V2 20	110 mm	155 mm	20 mm	110 mm	R4	7409462	piece	1 piece
RKFR2 4 SL2V2 25	114 mm	159 mm	25 mm	114 mm	R4	7409464	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Tube body with cover plate, with handle clamp, for frame cassette and height-adjustable cassette	TUK2 GV	7428140	piece	1 piece
Tube body with cover plate, without handle clamp, for frame cassette and height-adjustable cassette	TUK2 V	7428141	piece	1 piece
Tube body with floor covering recess, with handle clamp, for frame cassette and height-adjustable cassette	TUK2 G4	7428142	piece	1 piece
