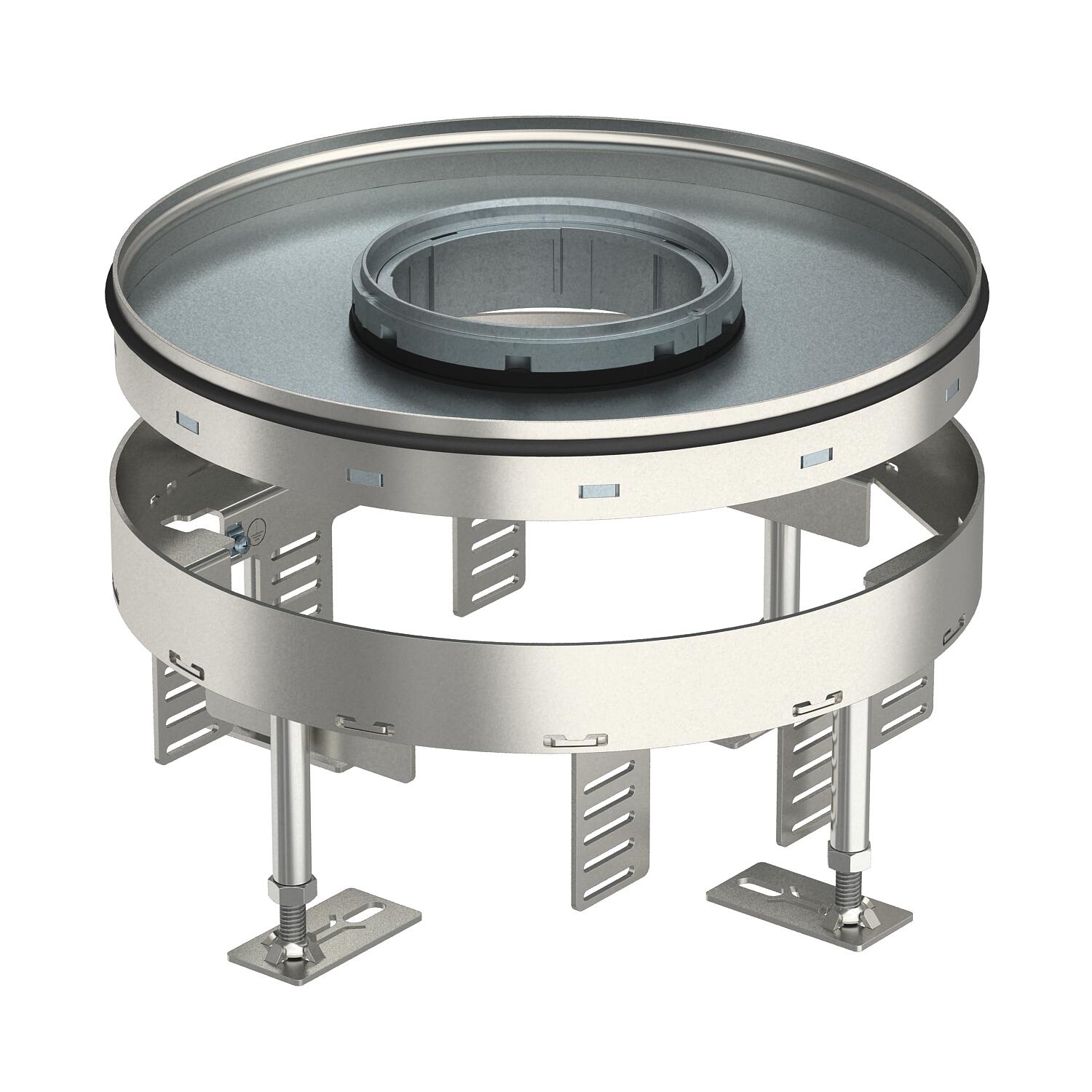

Height-adjustable heavy-duty cassette for tube body RKFRSL, nominal size R7, stainless steel

Item no. 7409468 | EAN 4012195869757

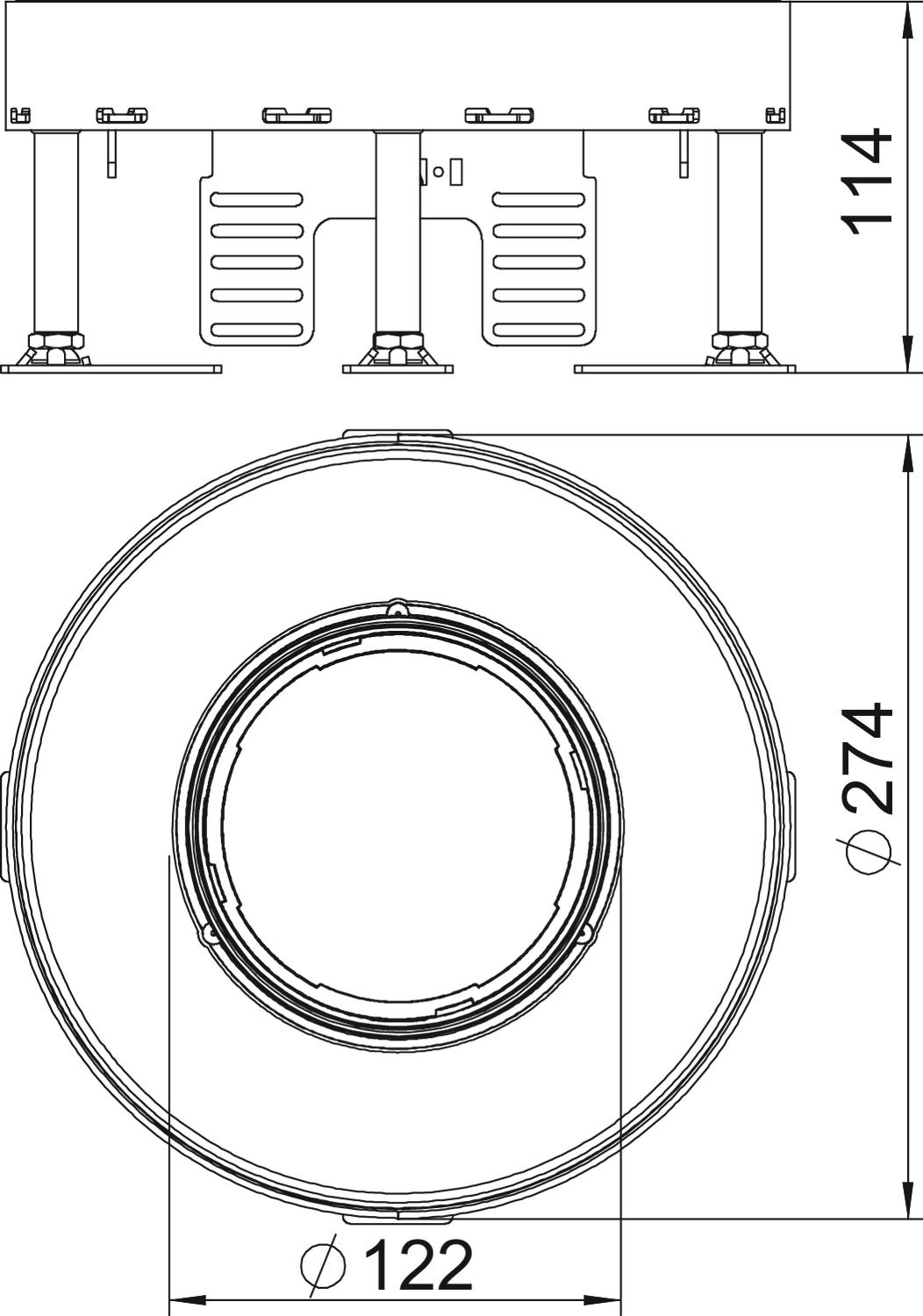

7409468 / RKFR2 7 SL2V2 25
114 mm
159 mm
25 mm
114 mm
R7
Product description

Product description

Round heavy-duty cassette for tube body of nominal size R7 for the installation of accessories in trunking systems, raised and cavity floors, in dry or wet-cleaned floors indoors. Load class 2 to 20 kN.


Height-adjustable heavy-duty cassette with tube body with a load bearing capacity of 2-20 kN, 2-compartment. Two APMT2 cover plates and one APMT5 can be installed. For the installation of two UT3 and one UT4 universal support for seven single accessories with support ring/support clamp or 10 Modul 45 devices. The tube body is not contained in the scope of delivery.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cable outlet version Lowerable tube body
Decouplable no
Device support to accept mounting boxes yes
Dimension Ø275mm
Dimension h 114 mm
Floor care Wet
Floor covering thickness 25 mm
Floor height, max. 159 mm
Floor height, min. 114 mm
Heavy load class 20 kN (OBO SL2)
Heavy-duty version yes
Height-adjustment range, max. 159 mm
Height-adjustment range, min. 114 mm
Installation depth 114 mm
Installation diameter 275
Installation system type UT3 / UT4
Material Stainless steel
Nominal size for device installation units R7
Number of cable outlets 1
Number of installable devices 10
Number of mounting boxes 3
Protection rating (IP) when unused IP44
Protection rating (IP) when used IP20
Protection rating IK code IK10
Suitable for cavity floor installation yes
Suitable for raised floor installation yes
Version for Round
All types

All types

Types Floor height, min. Floor height, max. Floor covering thickness Dimension h Nominal size for device installation units Item no. Quantity SSU
RKFR2 7 SL2V2 25 114 mm 159 mm 25 mm 114 mm R7 7409468
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Tube body with cover plate, with handle clamp, for frame cassette and height-adjustable cassette Tube body with cover plate, with handle clamp, for frame cassette and height-adjustable cassette TUK2 GV 7428140
1 piece
Tube body with cover plate, without handle clamp, for frame cassette and height-adjustable cassette Tube body with cover plate, without handle clamp, for frame cassette and height-adjustable cassette TUK2 V 7428141
1 piece
Tube body with floor covering recess, with handle clamp, for frame cassette and height-adjustable cassette Tube body with floor covering recess, with handle clamp, for frame cassette and height-adjustable cassette TUK2 G4 7428142
1 piece
