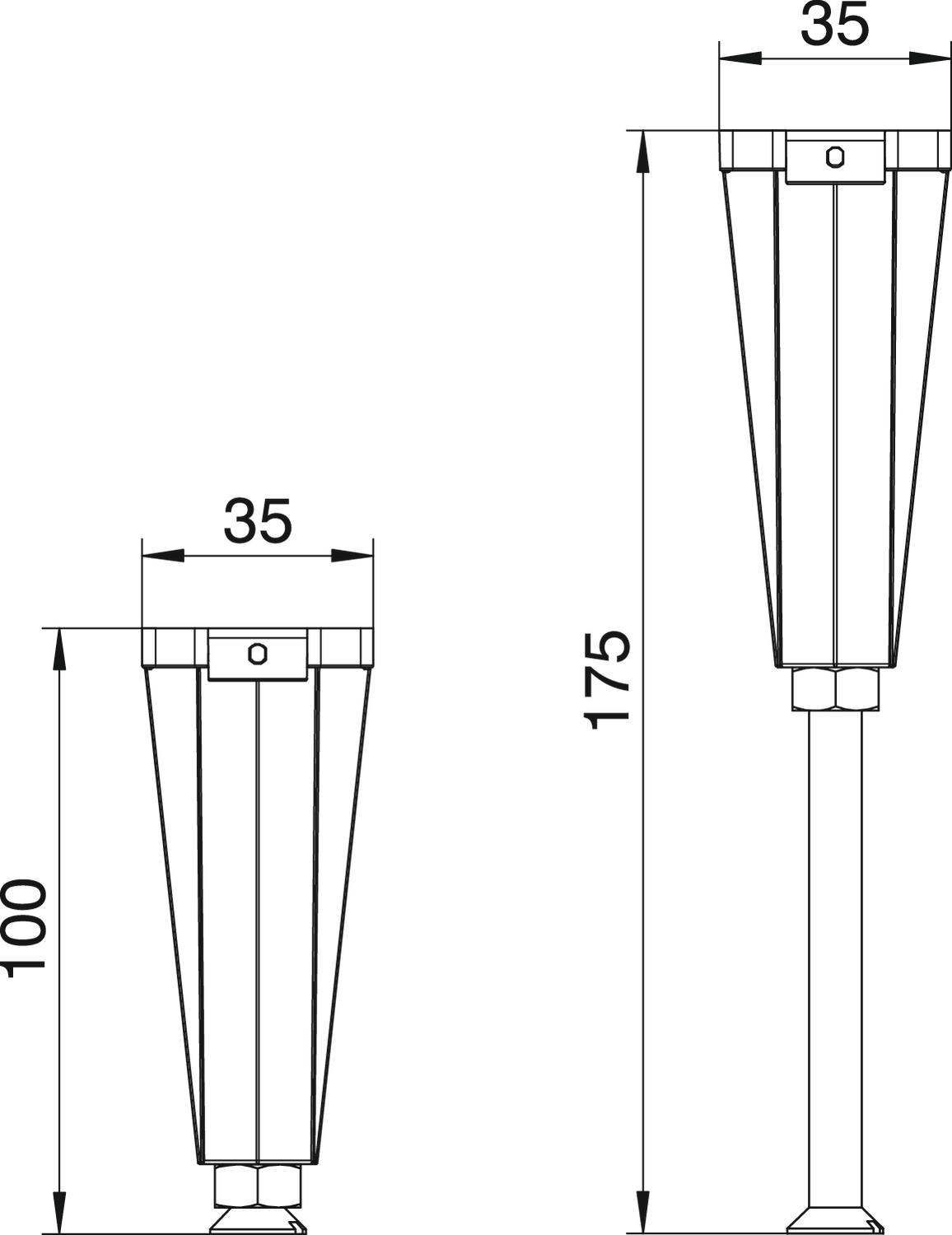

Height adjustment unit for lid butt support, trunking height 100-175 mm 100 | 175
morepic-1 morepic-2

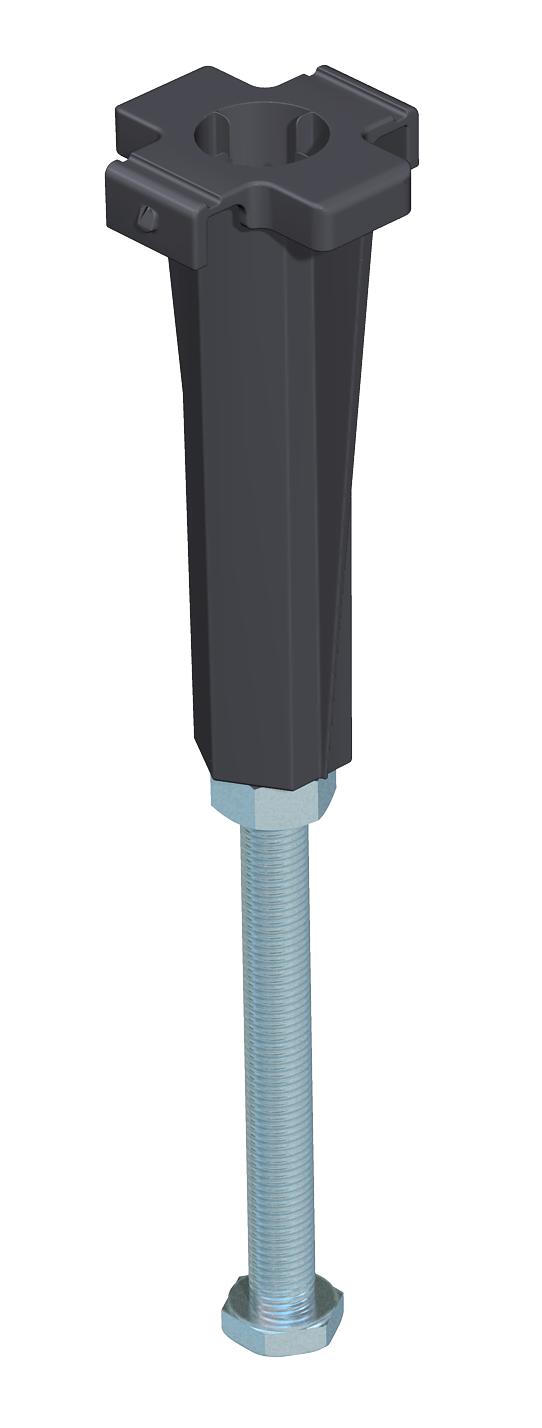

Height adjustment unit for lid butt support, trunking height 100-175 mm

Item no. 7424844 | EAN 4012195245131

7424844 / NE DSU2 10075
100 mm
175 mm
Product description
Product description
For central support of a lid butt support of nominal width 400, 500 or 600.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Accessories yes
Decouplable no
Device support to accept mounting boxes no
Duct height, min. 100 mm
Height-adjustment range, max. 175 mm
Height-adjustment range, min. 100 mm
Material Steel
Minimum screed height 40
Spare part no
Suitable for screed-flush closed underfloor ducts no
Surface Strip galvanized
Trunking height, max. 175 mm
Width 35 mm
All types

All types

Types Height-adjustment range, min. Height-adjustment range, max. Item no. Quantity SSU
NE DSU2 10075 100 mm 175 mm 7424844
75 piece
Downloads

Download

Download

EU declaration of conformity NE DSU2 10075 / 7424844 , 0.13MB , pdf
Download

Download

Download
Download

No invitation to tender text is available for this product.
