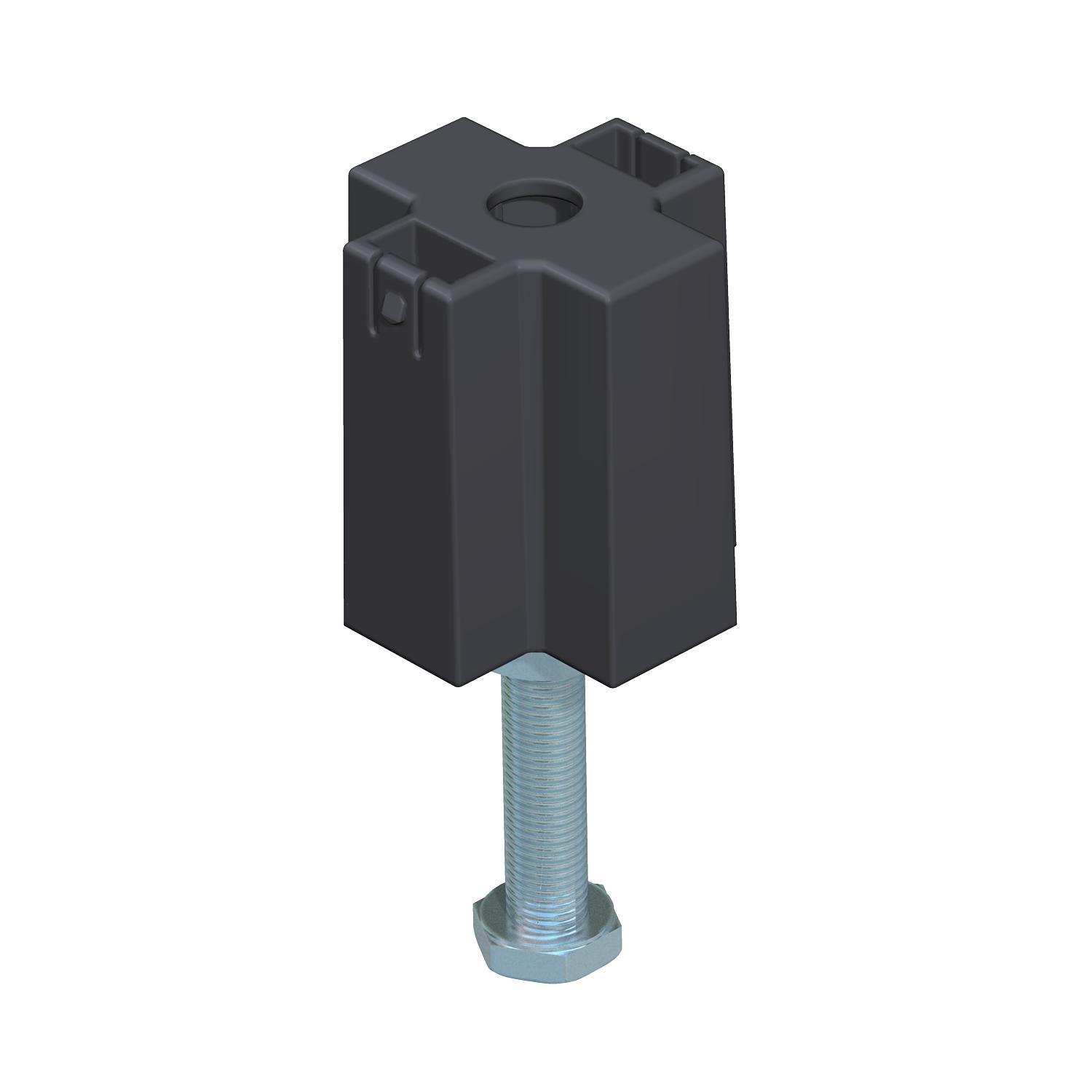

Height adjustment unit for lid butt support, trunking height 60-110 mm

Item no. / Types	7424842 / NE DSU2 6050

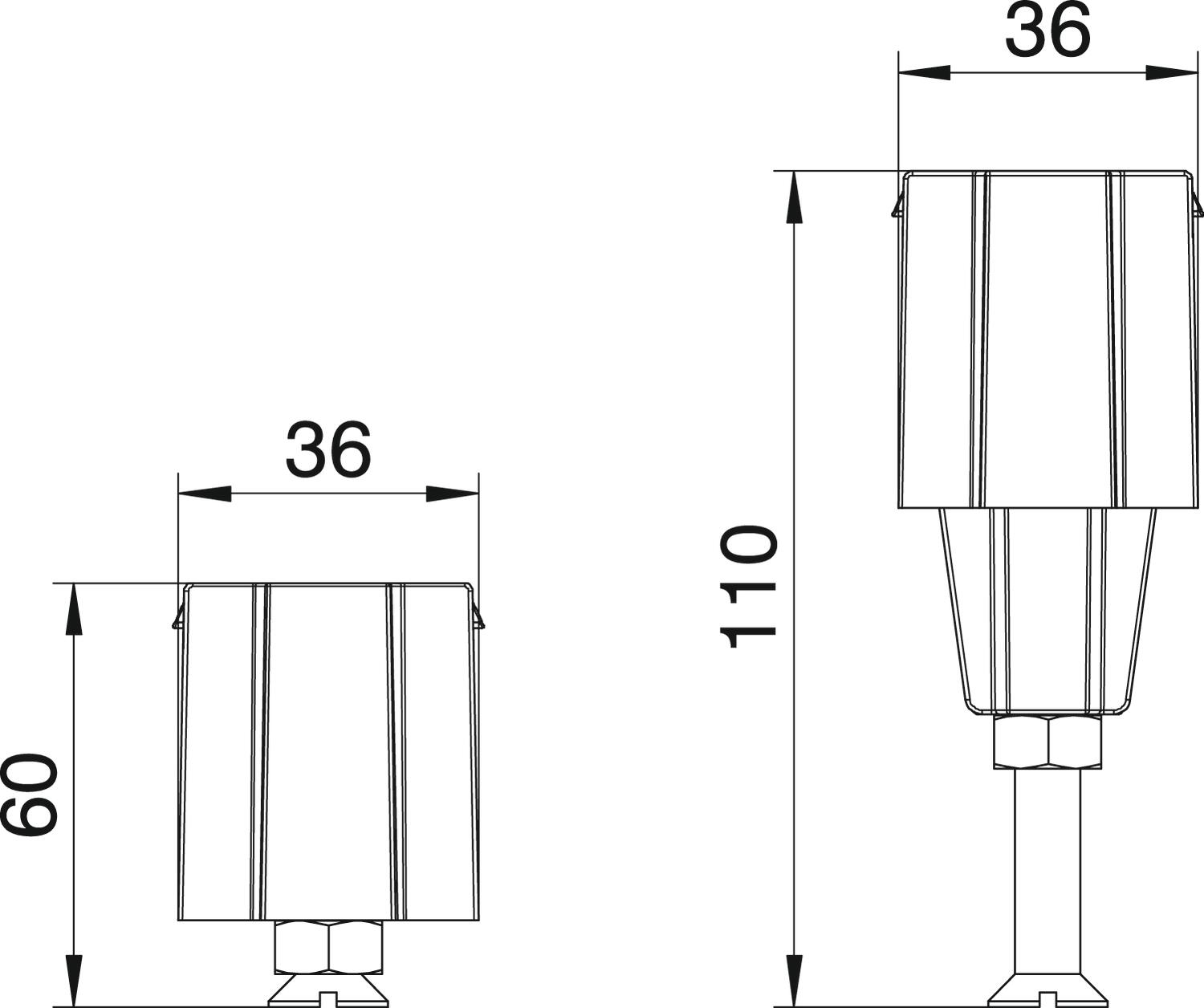

Height-adjustment range, min.	60 mm

Height-adjustment range, max.	110 mm

Product description

Product description

For central support of a lid butt support of nominal width 400, 500 or 600.

Technical data

Accessories	yes
Decouplable	no
Device support to accept mounting boxes	no
Duct height, min.	60 mm
Height-adjustment range, max.	110 mm
Height-adjustment range, min.	60 mm
Material	Steel

Minimum screed height	40
Spare part	no
Suitable for screed-flush closed underfloor ducts	no
Surface	Strip galvanized
Trunking height, max.	110 mm
Width	35 mm

All types

Types	Height-adjustment range, min.	Height-adjustment range, max.	Item no.	Quantity	SSU
NE DSU2 6050	60 mm	110 mm	7424842	piece	75 piece
