Height adjustment unit RKNEV2

Item no. 7405818 | EAN 4012195891246

Product description

Product description

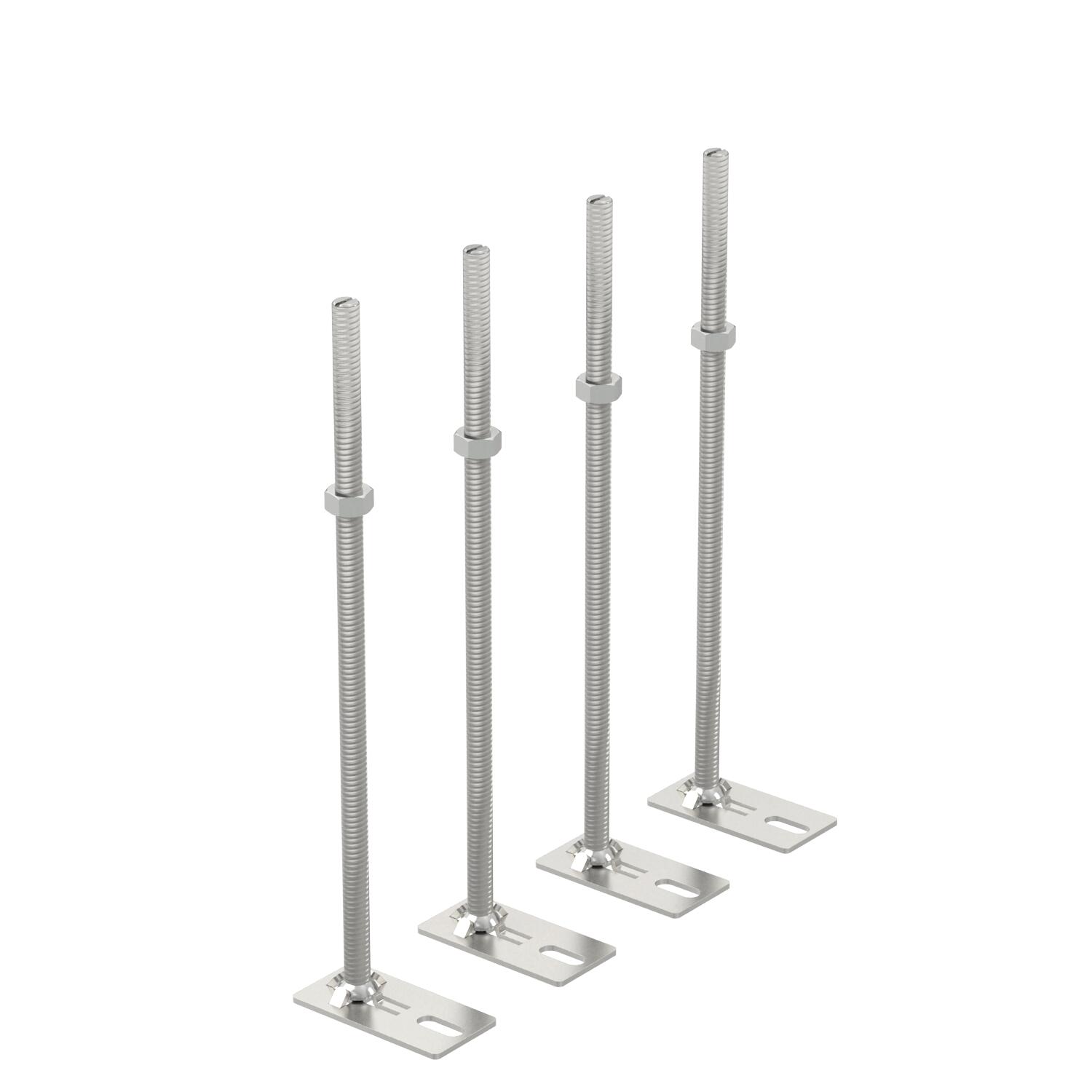

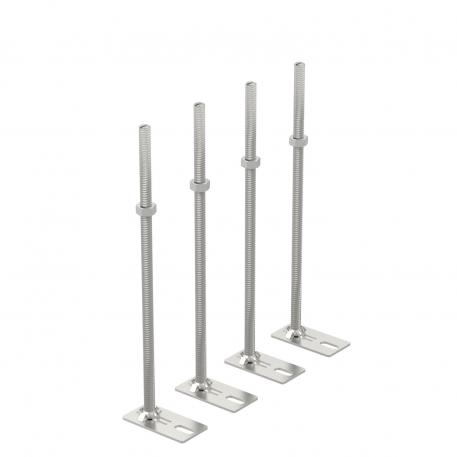

For flushfloor height adjustment of the height adjustable cassette units and the OKB screed-flush trunking system. The VPE consists of 4 height adjustment units.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

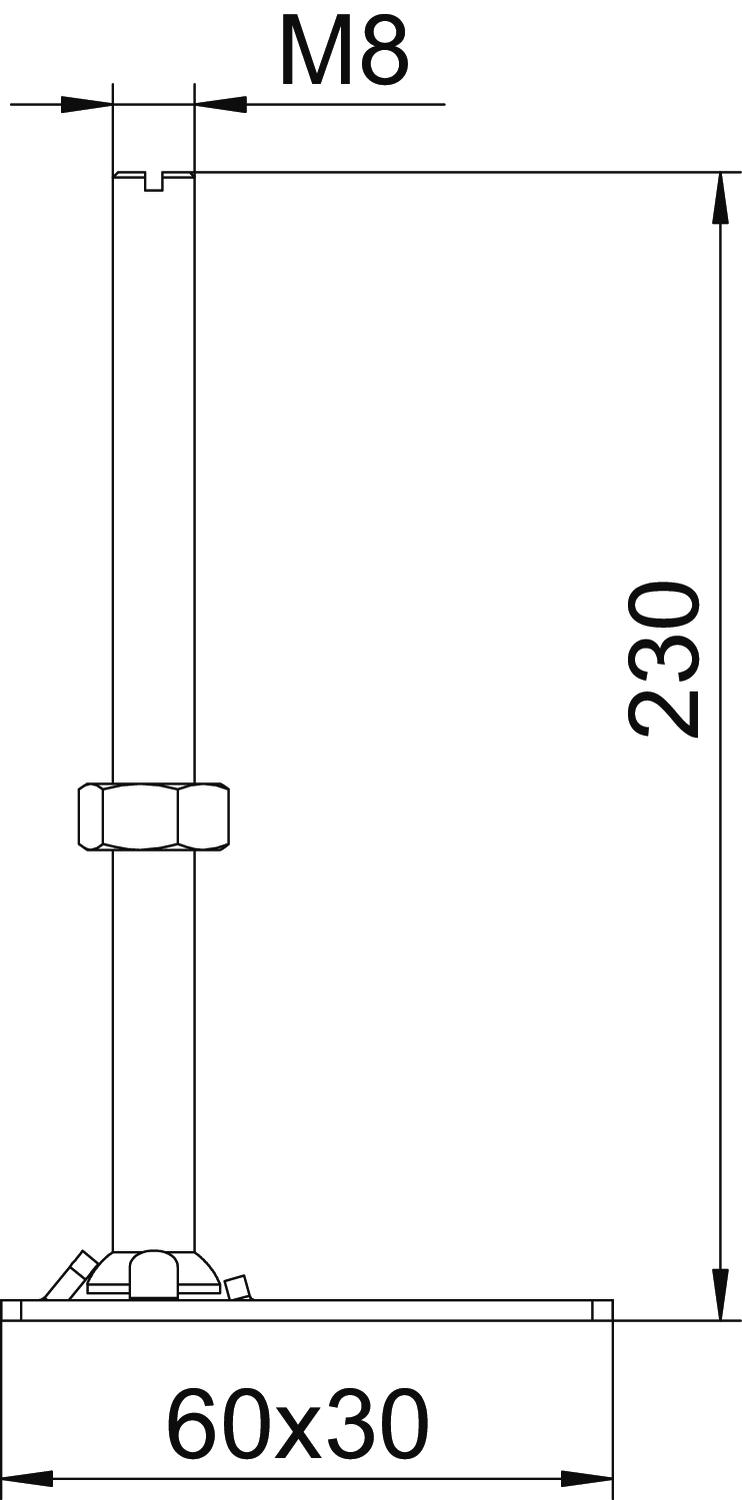

Dimension M8x230mm
Dimension h 230 mm
Height-adjustment range, max. 310 mm
Height-adjustment range, min. 260 mm
Material Steel
Material of the foot Metal
Suitable for cassettes yes
Suitable for ducts and trunking yes
Surface Electrogalvanized
With footfall sound insulation no
All types

All types

Types Height-adjustment range, min. Height-adjustment range, max. Item no. Quantity SSU
RK NEV2 70 100 mm 150 mm 7405814
10 PU
RK NEV2 110 140 mm 190 mm 7405815
10 PU
RK NEV2 150 180 mm 230 mm 7405816
10 PU
RK NEV2 190 220 mm 270 mm 7405817
10 PU
RK NEV2 230 260 mm 310 mm 7405818
10 PU
RK NEV2 270 300 mm 355 mm 7405819
10 PU
Downloads

Download

Declaration of conformity RK NEV2 230 / 7405818 , 0.11MB , pdf
Download

No invitation to tender text is available for this product.
