Height-compensation kit ASH 250-4 320

Item no. 7410136 | EAN 4012197364878

7410136 / ASH 250-4 320
240 mm
320 mm
Product description
Product description

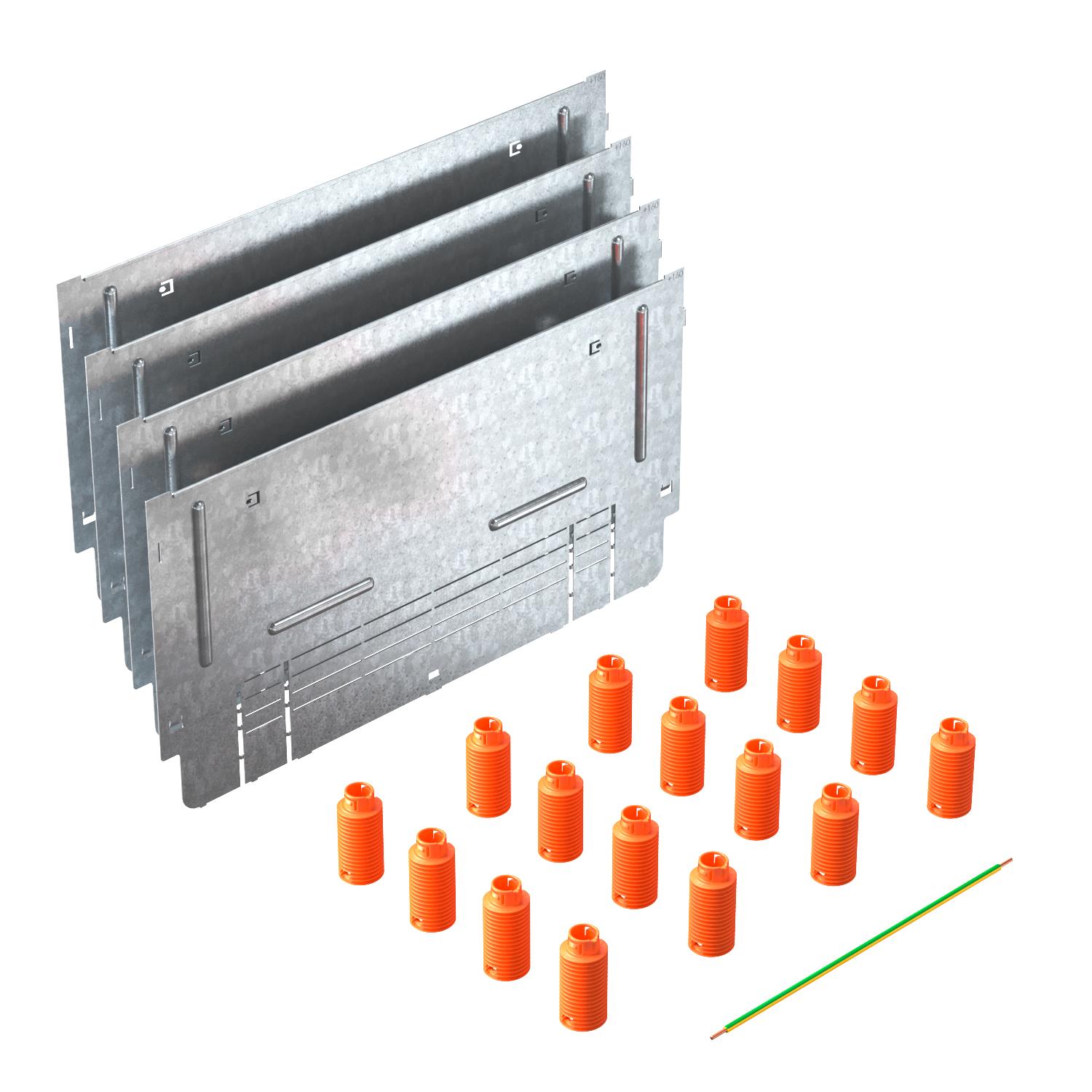

Height-compensation kit for UZD250-4 underfloor boxes with a construction height of 240 to 320 mm for construction-side raising of the UZD.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nail device
Technical data

Technical data

Decouplable no

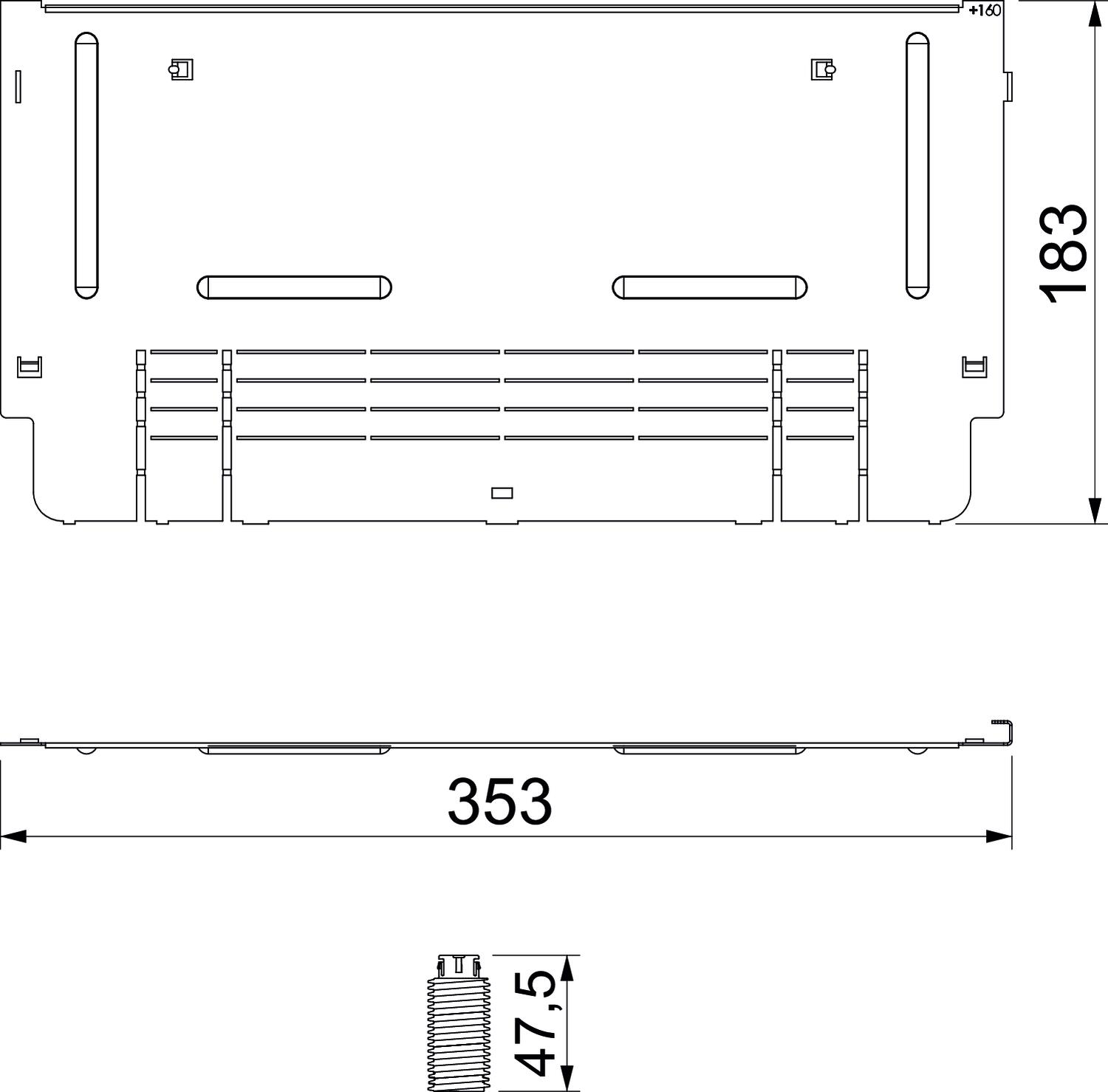

Dimension 353x183x46
Dimension A 353 mm
Dimension B 183 mm
Dimension l 47,5 mm
Floor plate no
For pipe connection no
Height-adjustment range, max. 320 mm
Height-adjustment range, min. 240 mm
Installation opening for on-floor tank no
Lowerable to be flush-floor no
Material Steel
Minimum screed height 240
Screed height, max. 320 mm
Screed height, min. 240 mm
Seal installation option no
Suitable for cavity floor installation no
Suitable for raised floor installation no
Suitable for screed-covered underfloor ducts yes
Suitable for screed-flush closed underfloor ducts no
Suitable for underfloor ducts no
Surface Strip galvanized
Trunking width, max. 250 mm
Trunking width, min. 190 mm
Version for Square
All types

All types

Types Screed height, min. Screed height, max. Item no. Quantity SSU
ASH 250-4 320 240 mm 320 mm 7410136
1 PU
