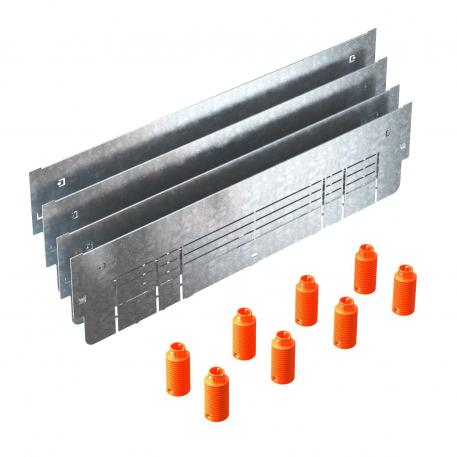

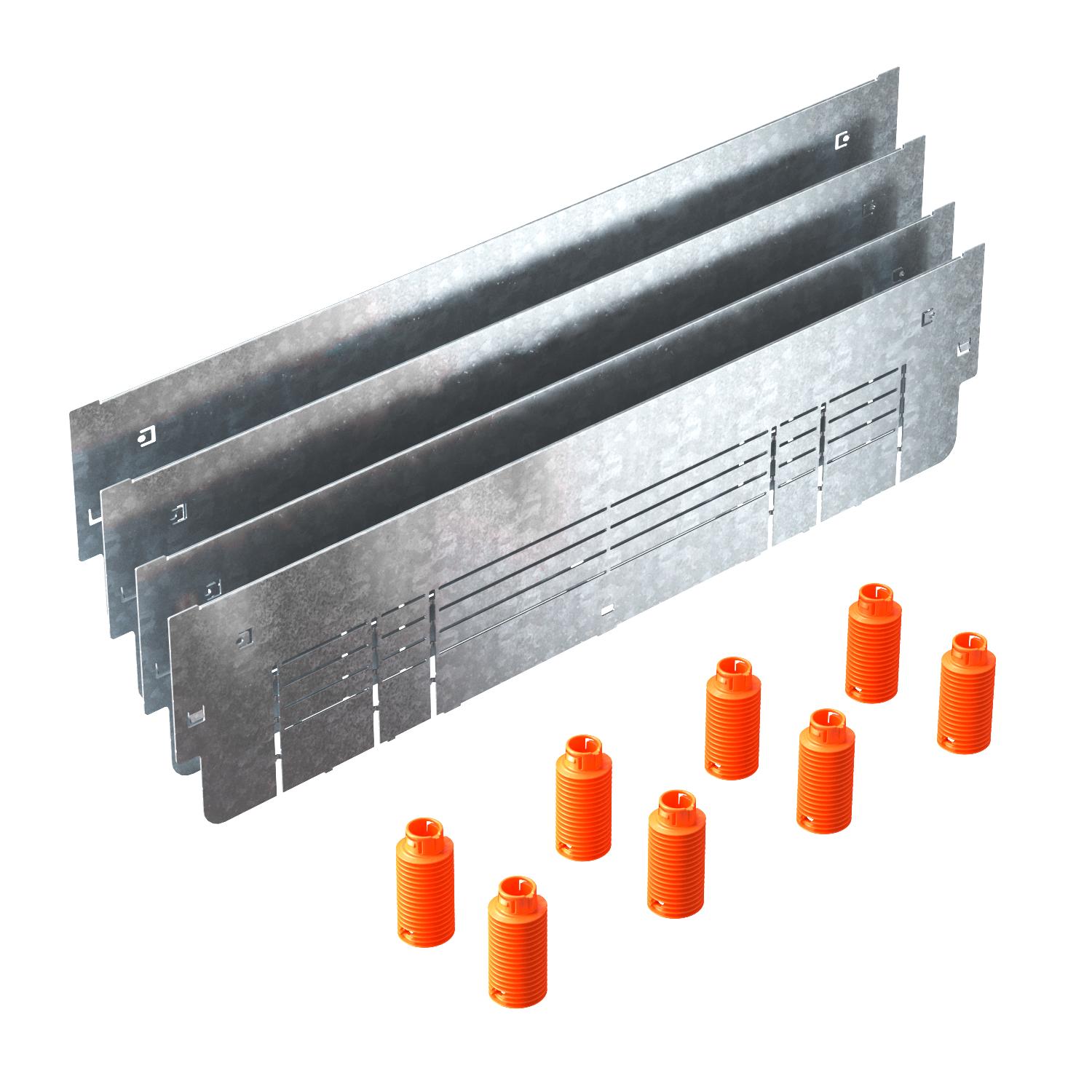

Height-compensation kit ASH 350-4 240

Item no. 7410138 | EAN 4012197364908

7410138 / ASH 350-4 240
160 mm
240 mm
Product description
Product description
Height-compensation kit for UZD350-4 underfloor boxes with a construction height of 160 to 240 mm for construction-side raising of the UZD.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nail device
Technical data

Technical data

Decouplable no
Dimension 450x103x46
Dimension A 450 mm
Dimension B 103 mm
Dimension l 47,5 mm
Floor plate no
For pipe connection no
Height-adjustment range, max. 240 mm
Height-adjustment range, min. 160 mm
Installation opening for on-floor tank no
Lowerable to be flush-floor no
Material Steel
Minimum screed height 160
Screed height, max. 240 mm
Screed height, min. 160 mm
Seal installation option no
Suitable for cavity floor installation no
Suitable for raised floor installation no
Suitable for screed-covered underfloor ducts yes
Suitable for screed-flush closed underfloor ducts no
Suitable for underfloor ducts no
Surface Strip galvanized
Trunking width, max. 350 mm
Trunking width, min. 190 mm
Version for Square
All types

All types

Types Screed height, min. Screed height, max. Item no. Quantity SSU
ASH 350-4 240 160 mm 240 mm 7410138
1 PU
