Height-compensation kit ASH 350-4 320
Item no. 7410140 | EAN 4012197364946
- Product description
-

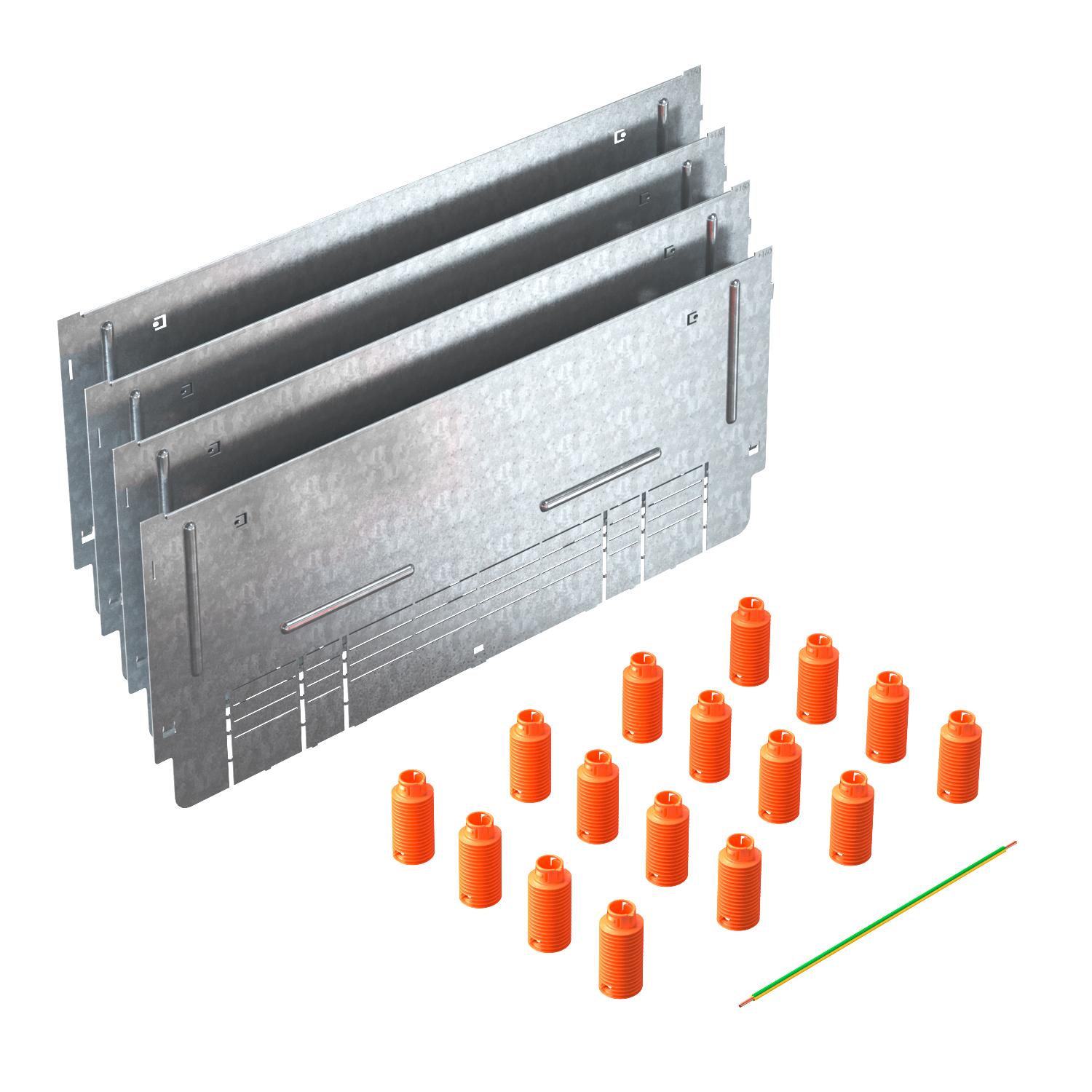

Product descriptionHeight-compensation kit for UZD350-4 underfloor boxes with a construction height of 240 to 320 mm for construction-side raising of the UZD.
-
- Technical data
-
Technical data

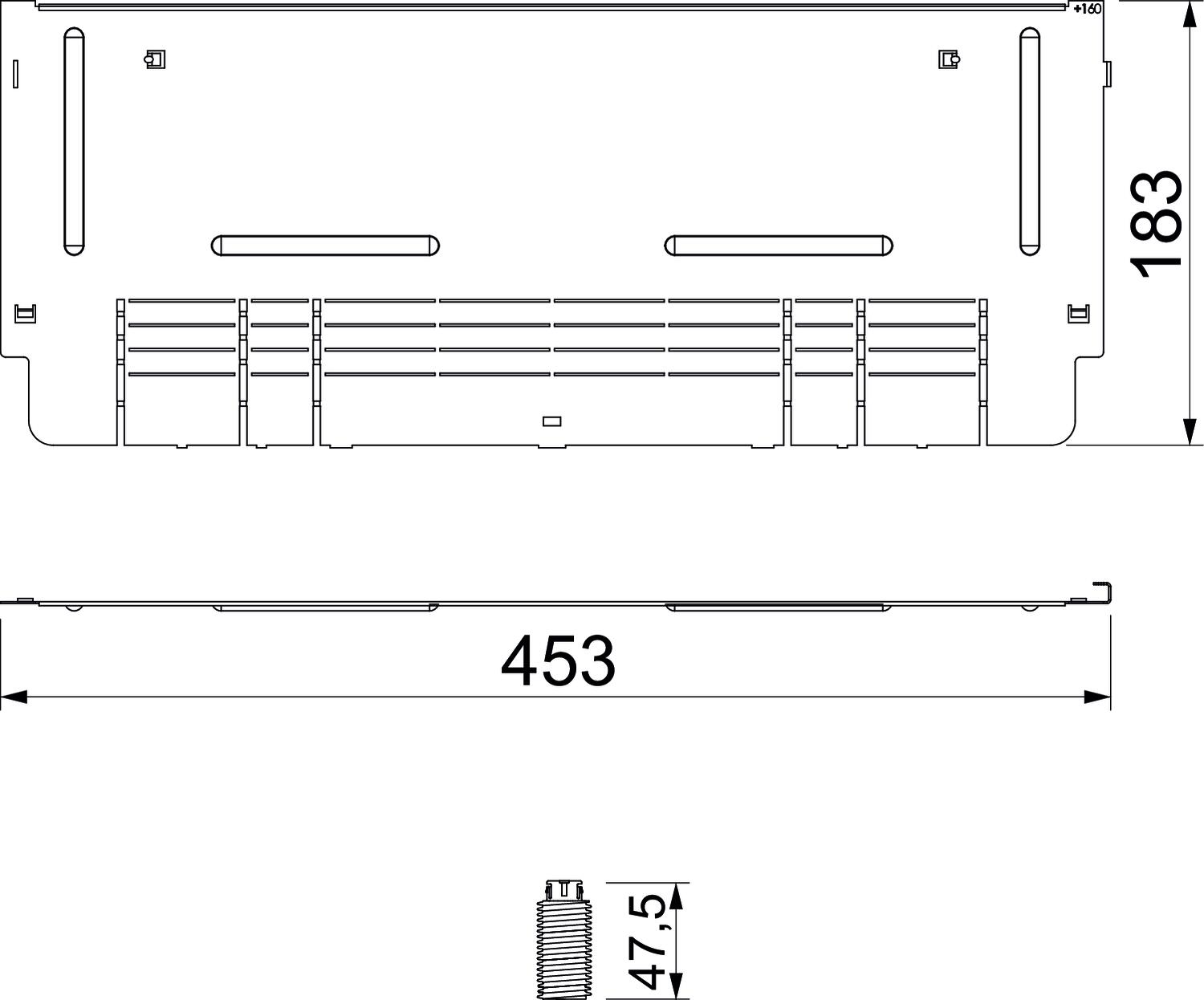

Decouplable no Dimension 453x183x46 Dimension A 453 mm Dimension B 183 mm Dimension l 47,5 mm Floor plate no For pipe connection no Height-adjustment range, max. 320 mm Height-adjustment range, min. 240 mm Installation opening for on-floor tank no Lowerable to be flush-floor no Material Steel Minimum screed height 240 Screed height, max. 320 mm Screed height, min. 240 mm Seal installation option no Suitable for cavity floor installation no Suitable for raised floor installation no Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts no Surface Strip galvanized Trunking width, max. 350 mm Trunking width, min. 190 mm Version for Square - All types
- Downloads
-
Data sheet ASH 350-4 320 / 7410140 , 0.30MB , pdfEU declaration of conformity ASH 350-4 320 / 7410140 , 0.15MB , pdfDeclaration of performance ASH 350-4 320 / 7410140 , 0.34MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfMounting instructions EÜK screed-covered duct system generation 4 , 10.26MB , pdf
