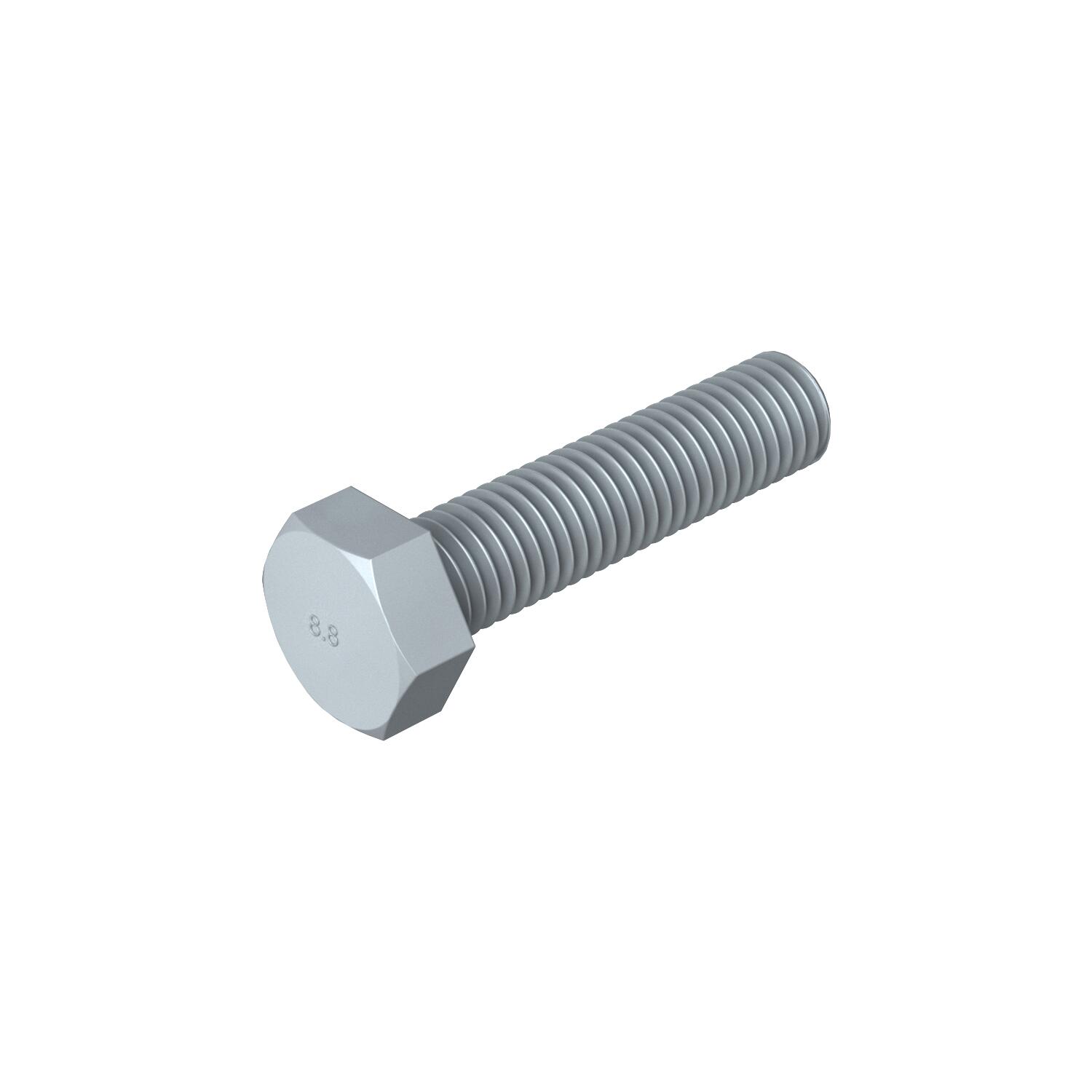

Hexagonal bolt DIN 933

Item no. / Types

Dimension d

Dimension L

WAF

Thread metric

Material	Steel

Product description

Product description

Hexagonal bolt according to DIN 933 with metric thread. Resistance grade at least 8.8.

Technical data

All types

All types

Types	Dimension d	Dimension L	WAF	Thread metric	Material	Item no.	Quantity	SSU
SKS M6x16 ZL	6 mm	16 mm	10	6	Steel	3156706	piece	100 piece
SKS M6x20 ZL	6 mm	20 mm	10	6	Steel	3156708	piece	100 piece
SKS M6x30 ZL	6 mm	30 mm	10	6	Steel	3156710	piece	100 piece
SKS M6x40 ZL	6 mm	40 mm	10	6	Steel	3156712	piece	100 piece
SKS M6x55 ZL	6 mm	55 mm	10	6	Steel	3156715	piece	100 piece
SKS M6x60 ZL	6 mm	60 mm	10	6	Steel	3156716	piece	100 piece
SKS M8x20 ZL	8 mm	20 mm	13	8	Steel	3156728	piece	100 piece
SKS M8x30 ZL	8 mm	30 mm	13	8	Steel	3156730	piece	100 piece
SKS M8x40 ZL	8 mm	40 mm	13	8	Steel	3156732	piece	100 piece
SKS M8x50 ZL	8 mm	50 mm	13	8	Steel	3156734	piece	100 piece
SKS M8x60 ZL	8 mm	60 mm	13	8	Steel	3156736	piece	100 piece
SKS M8x80 ZL	8 mm	80 mm	13	8	Steel	3156738	piece	100 piece
SKS M10x20 ZL	10 mm	20 mm	17	10	Steel	3156758	piece	50 piece
SKS M10x30 ZL	10 mm	30 mm	17	10	Steel	3156760	piece	50 piece
SKS M10x40 ZL	10 mm	40 mm	17	10	Steel	3156762	piece	50 piece
SKS M10x50 ZL	10 mm	50 mm	17	10	Steel	3156764	piece	50 piece
SKS M10x60 ZL	10 mm	60 mm	17	10	Steel	3156766	piece	50 piece
SKS M10x70 ZL	10 mm	70 mm	17	10	Steel	3156768	piece	50 piece
SKS M10x80 ZL	10 mm	80 mm	17	10	Steel	3156770	piece	50 piece
SKS M10x100 ZL	10 mm	100 mm	17	10	Steel	3156774	piece	50 piece
SKS M12x30 ZL	12 mm	30 mm	19	12	Steel	3156788	piece	50 piece
SKS M12x40 ZL	12 mm	40 mm	19	12	Steel	3156790	piece	50 piece

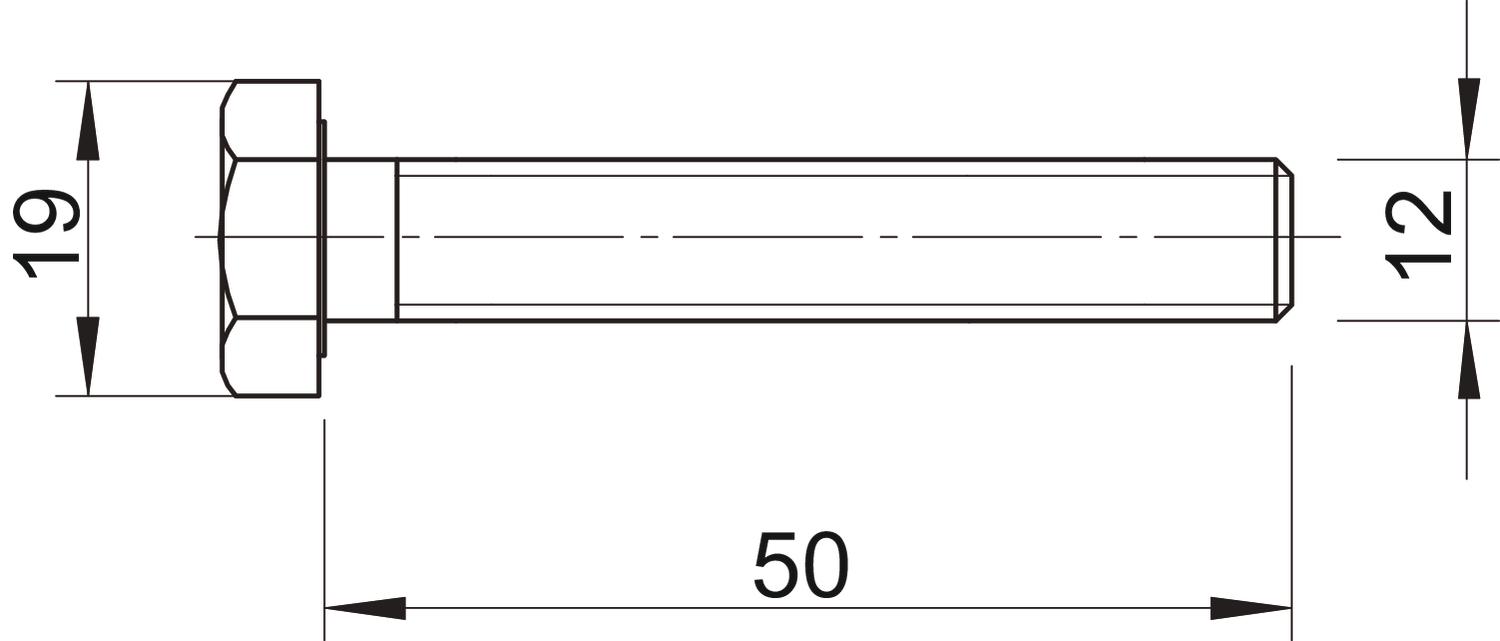

SKS M12x50 ZL	12 mm	50 mm	19	12	Steel	3156792	piece	50 piece
SKS M12x60 ZL	12 mm	60 mm	19	12	Steel	3156794	piece	50 piece
SKS M12x80 ZL	12 mm	80 mm	19	12	Steel	3156796	piece	50 piece
SKS M12x100 ZL	12 mm	100 mm	19	12	Steel	3156799	piece	50 piece
