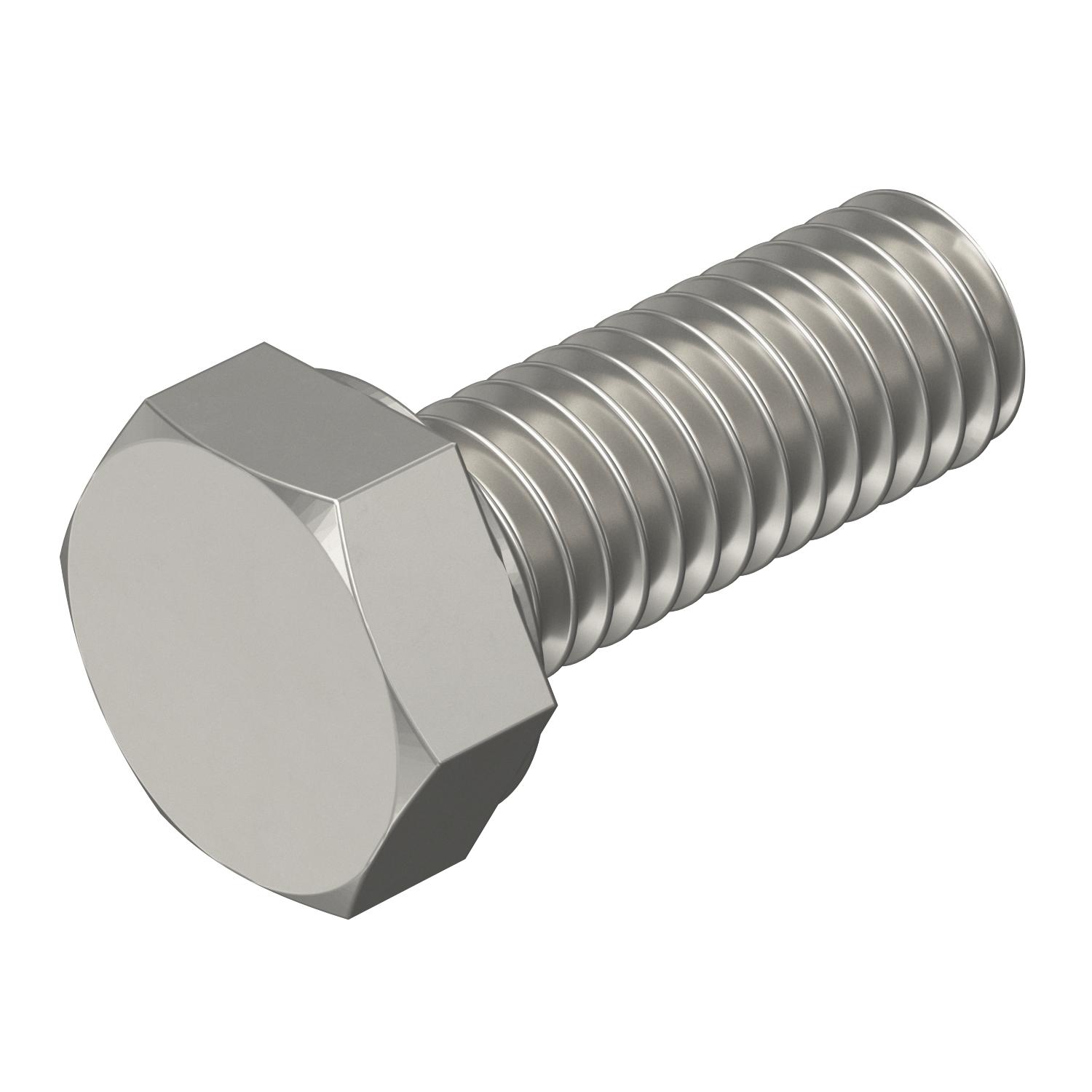

Hexagonal bolt DIN 933 A4

Item no. 3156016 | EAN 4012195940371

Stainless steel
Product description
Product description
Hexagonal bolt according to DIN 933 with metric thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

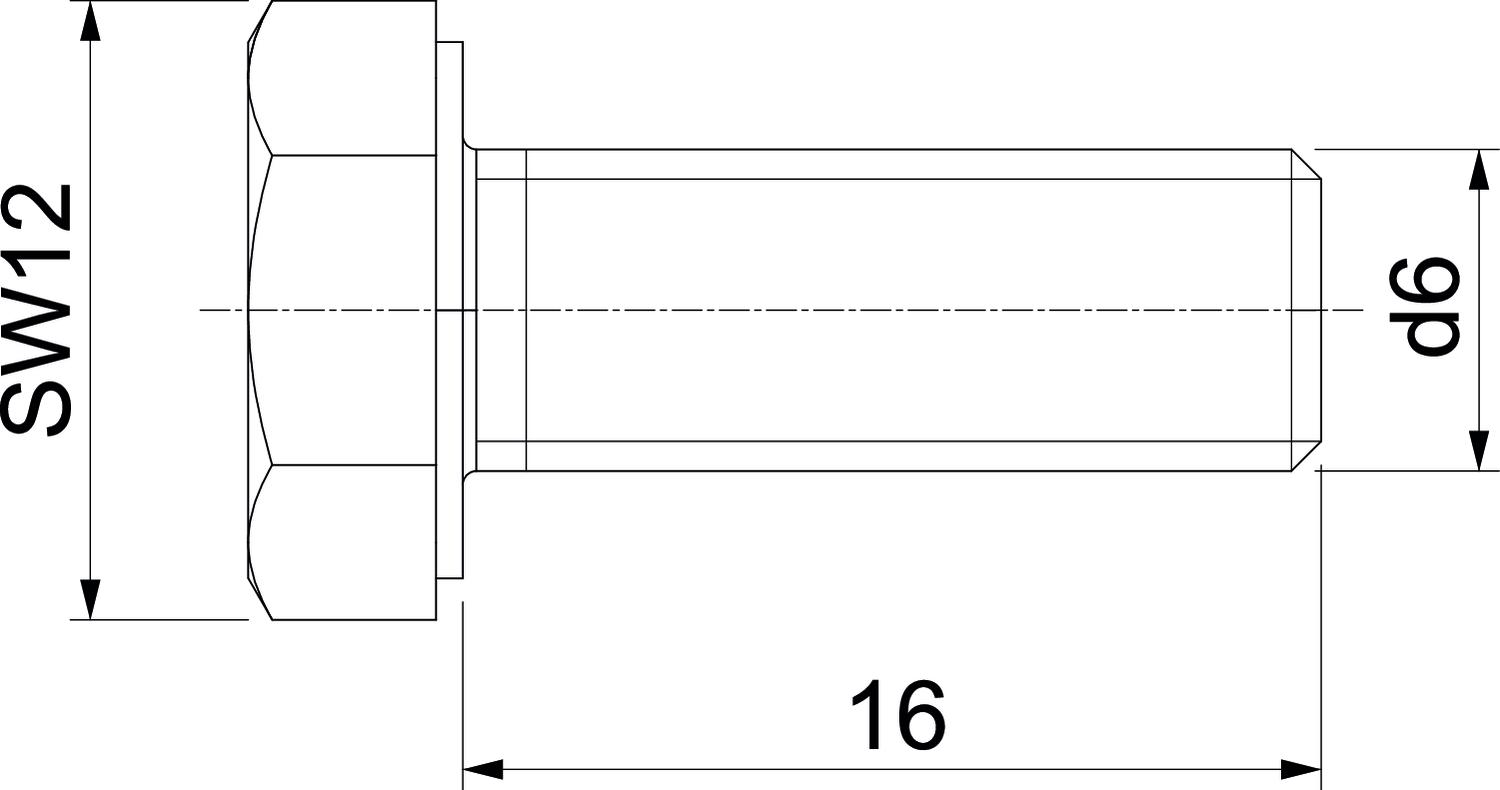

Dimension M6x16mm
Dimension d 6 mm
Dimension L 16 mm
Length 16 mm
Material Stainless steel
Surface Bright, treated
Thread M6
Thread metric 6
WAF 10
All types

All types

Types Dimension d Dimension L WAF Thread metric Material Item no. Quantity SSU
HHS M6x16 A4 6 mm 16 mm 10 6 Stainless steel 3156016
100 piece
HHS M6x20 A4 6 mm 20 mm 10 6 Stainless steel 3156018
100 piece
HHS M6x25 A4 6 mm 25 mm 10 6 Stainless steel 3156019
100 piece
HHS M6x30 A4 6 mm 30 mm 10 6 Stainless steel 3156020
100 piece
HHS M6x35 A4 6 mm 35 mm 10 6 Stainless steel 3156021
100 piece
HHS M6x40 A4 6 mm 40 mm 10 6 Stainless steel 3156022
100 piece
HHS M8x20 A4 8 mm 20 mm 13 8 Stainless steel 3156024
100 piece
HHS M8x25 A4 8 mm 25 mm 13 8 Stainless steel 3156025
100 piece
HHS M8x30 A4 8 mm 30 mm 13 8 Stainless steel 3156026
100 piece
HHS M8x40 A4 8 mm 40 mm 13 8 Stainless steel 3156027
100 piece
HHS M8x50 A4 8 mm 50 mm 13 8 Stainless steel 3156028
100 piece
HHS M12x40 A4 12 mm 40 mm 19 12 Stainless steel 3156029
50 piece
HHS M10x20 A4 10 mm 20 mm 17 10 Stainless steel 3156031
100 piece
HHS M10x30 A4 10 mm 30 mm 17 10 Stainless steel 3156032
100 piece
HHS M10x40 A4 10 mm 40 mm 17 10 Stainless steel 3156033
50 piece
HHS M10x50 A4 10 mm 50 mm 17 10 Stainless steel 3156034
50 piece
HHS M10x60 A4 10 mm 60 mm 17 10 Stainless steel 3156035
50 piece
HHS M12x30 A4 12 mm 30 mm 19 12 Stainless steel 3156036
50 piece
HHS M12x50 A4 12 mm 50 mm 19 12 Stainless steel 3156037
50 piece
