Hexagonal bolt DIN 933 A5 8 | 20 | 13 | 8 | Stainless steel

morepic-1

morepic-2

Hexagonal bolt DIN 933 A5

Item no. 3156054 | EAN 4012195940739

Item no. / Types

Dimension d

Dimension L

WAF

Thread metric

Material	Stainless steel

Product description

Product description

Hexagonal bolt M8x20

Technical data

Technical data

Dimension	M8x20mm
Material	Stainless steel
Thread	M8

Thread metric	8
WAF	13

Dimensions

Dimension d	8 mm
Dimension L	20 mm

Length	20 mm

All types

All types

Types	Dimension d	Dimension L	WAF	Thread metric	Material	Item no.	Quantity	SSU
HHS M8x20 A5	8 mm	20 mm	13	8	Stainless steel	3156054	piece	100 piece
HHS M10x30 A5	10 mm	30 mm	17	10	Stainless steel	3156062	piece	100 piece
HHS M12x40 A5	12 mm	40 mm	19	12	Stainless steel	3156067	piece	50 piece

Downloads

Data sheet HHS M8x20 A5 / 3156054 , 0.18MB , pdf

Catalogue Connection and fastening systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, connection and fastening systems , 2.10MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

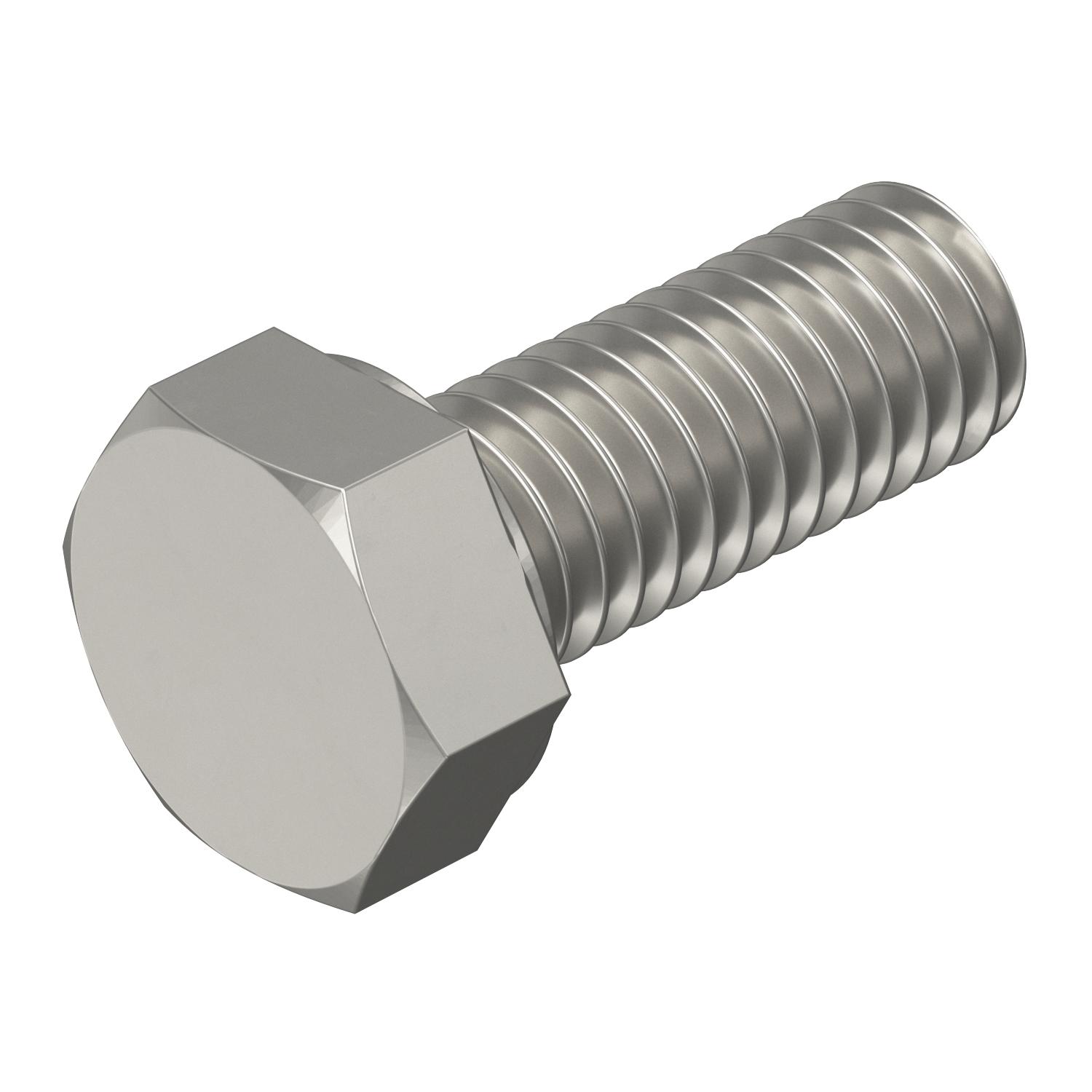

Product graphic HHS M8x20 A5 / 3156054, 76.84 kB, jpg

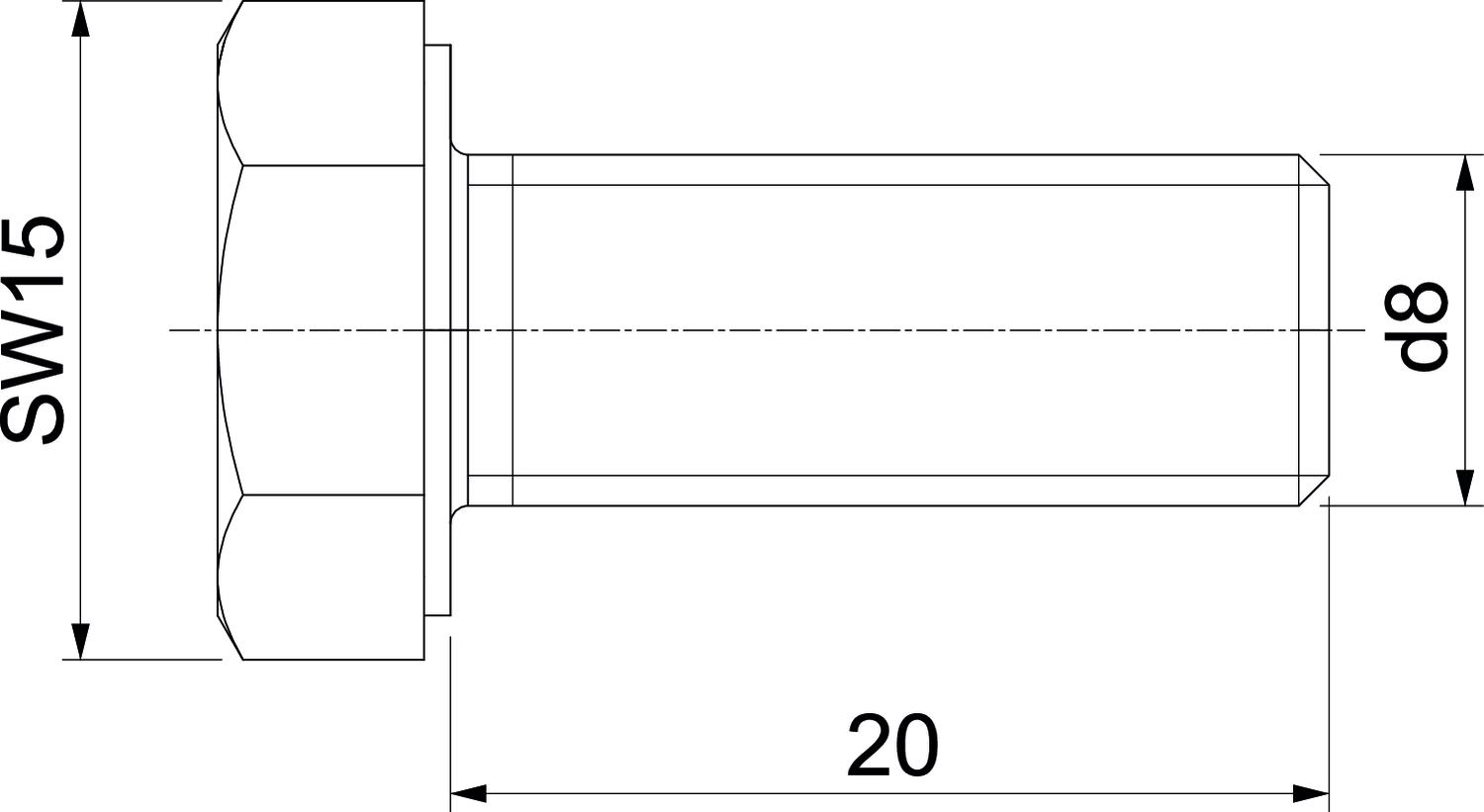

Scale drawing HHS M8x20 A5 / 3156054, 45.94 kB, jpg

HHS M8x20 A5 / 3156054
