Hexagonal bolt DIN 933 V2A 16 | 50 | 24 | 16 | Stainless steel

morepic-1

morepic-2

Hexagonal bolt DIN 933 V2A

Item no. 3156044 | EAN 4012195849582

Item no. / Types

Dimension d

Dimension L

WAF

Thread metric

Material	Stainless steel

Product description

Product description

Hexagonal bolt according to DIN 933 with metric thread.

Technical data

Technical data

Dimension	M16x50mm
Dimension d	16 mm
Dimension D	16 mm
Dimension L	50 mm
Length	50 mm

Material	Stainless steel
Surface	Bright, treated
Thread	M16
Thread metric	16
WAF	24

All types

All types

Types	Dimension d	Dimension L	WAF	Thread metric	Material	Item no.	Quantity	SSU
HHS M10x45 A2	10 mm	45 mm	17	10	Stainless steel	3156040	piece	50 piece
HHS M12x45 A2	12 mm	45 mm	19	12	Stainless steel	3156042	piece	50 piece
HHS M16x50 A2	16 mm	50 mm	24	16	Stainless steel	3156044	piece	50 piece

Downloads

Data sheet HHS M16x50 A2 / 3156044 , 0.17MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

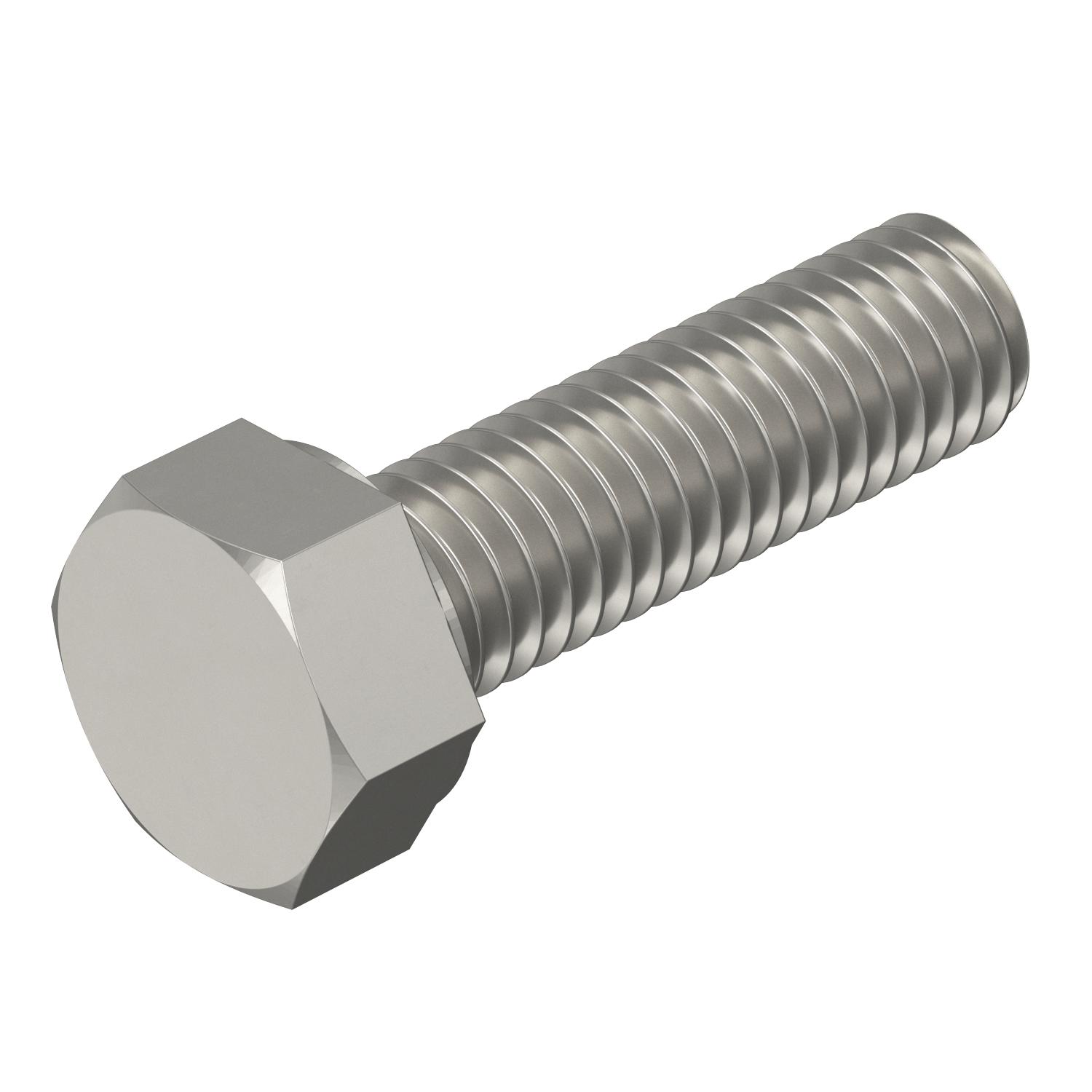

Product graphic HHS M16x50 A2 / 3156044, 73.74 kB, jpg

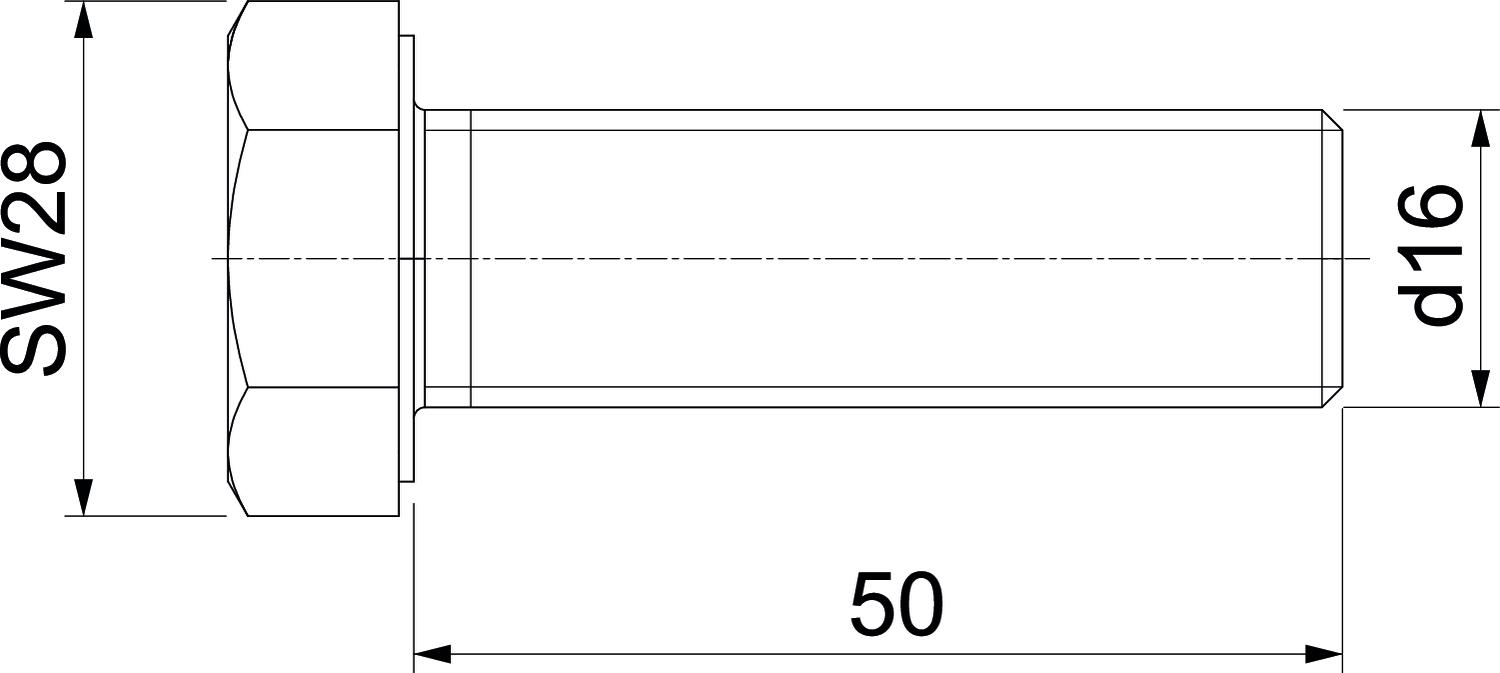

Scale drawing HHS M16x50 A2 / 3156044, 41.66 kB, jpg

HHS M16x50 A2 / 3156044
