Hexagonal bolt for trapezoidal fastening TPB 100

Item no. 6418244 | EAN 4012196348794

6418244 / SKS 10x110 G
10 mm
110 mm
17
10
Steel
Product description

Product description

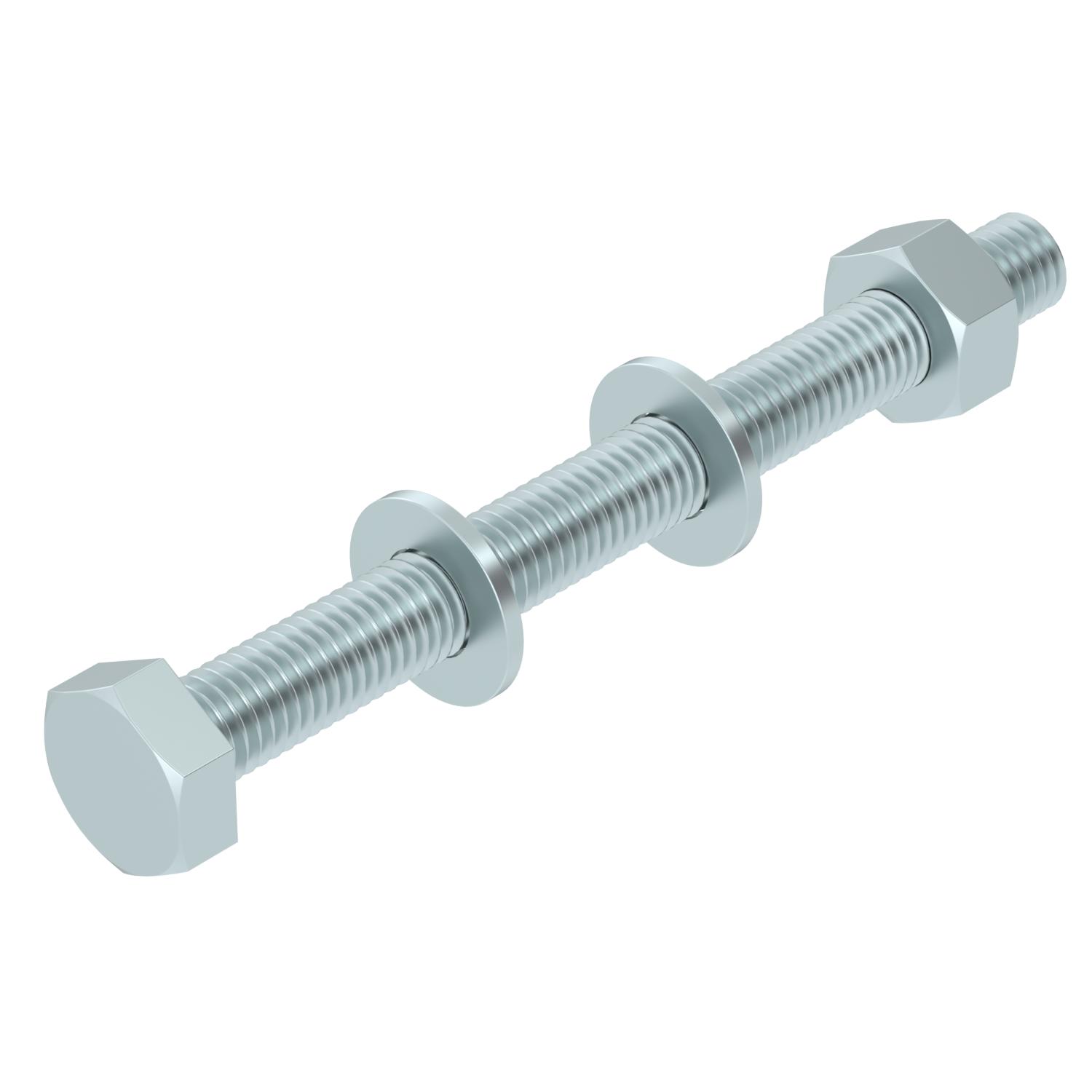

Hexagonal bolt for mounting trapezoidal fastening TPB 100, with shaft and thread, including hexagonal nut and 2 washers.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

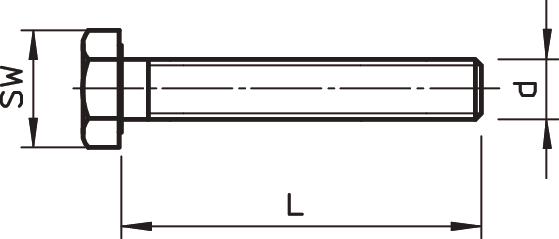

Dimension M10x110
Dimension d 10 mm
Dimension l 30 mm
Dimension L 110 mm
Full thread yes
Length 110 mm
Material Steel
Resistance grade 5.6
Surface Electrogalvanized
Thread M10
Thread increase 1,5 mm
Thread metric 10
WAF 17
With nut yes
With washer yes
All types

All types

Types Dimension d Dimension L WAF Thread metric Material Item no. Quantity SSU
SKS 10x110 G 10 mm 110 mm 17 10 Steel 6418244
20 piece
Downloads

Download

Declaration of conformity SKS 10x110 G / 6418244 , 0.22MB , pdf
