Hexagonal bolt M10 A5 10 | 90 | 17 | 10 | Stainless steel
morepic-1 morepic-2

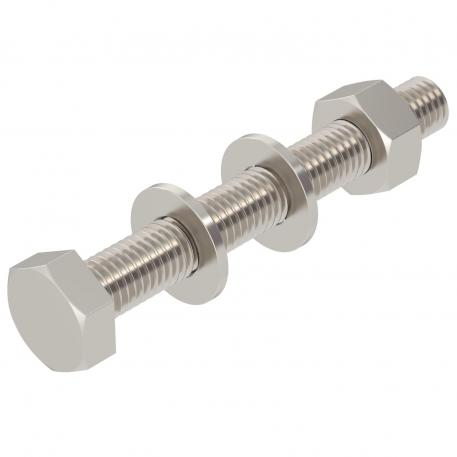

Hexagonal bolt M10 A5

Item no. 6418247 | EAN 4012195911159

10 mm
17
10
Stainless steel
Product description
Product description
Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour stainless steel

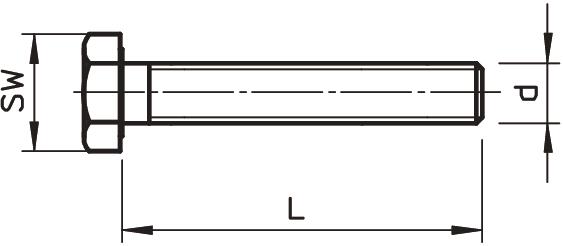

Dimension M10x80
Dimension d 10 mm
Dimension L 90 mm
Full thread yes
Length 90 mm
Material Stainless steel
Resistance grade A5-80
Thread M 10 x 90
Thread increase 1,5 mm
Thread metric 10
WAF 17
With nut yes
With washer yes
All types

All types

Types Dimension d Dimension L WAF Thread metric Material Item no. Quantity SSU
SKS 10x80 A5 10 mm 90 mm 17 10 Stainless steel 6418247
20 piece

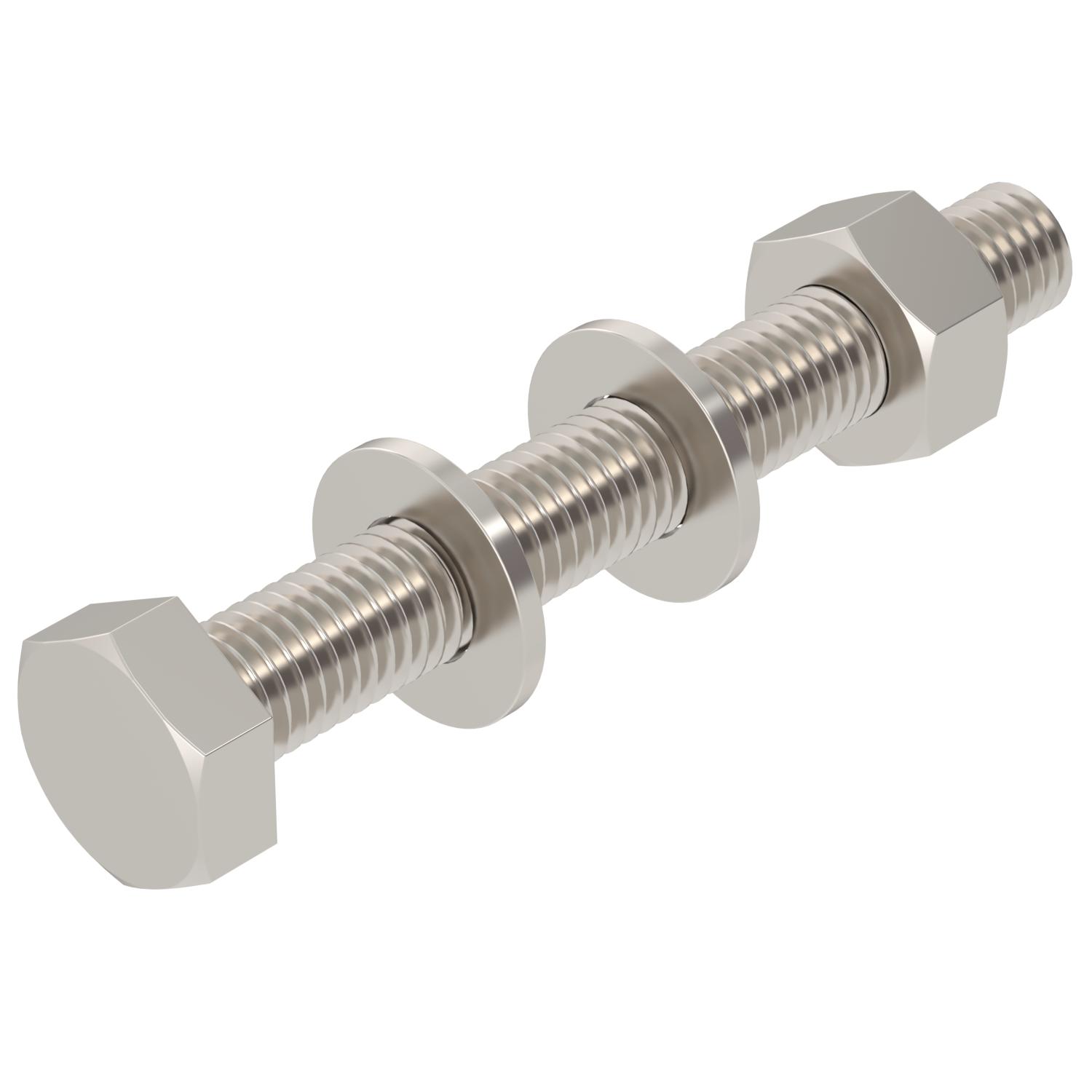

SKS 10x80 A4 10 mm 80 mm 17 10 Stainless steel 6418248
20 piece
SKS 10x90 A2 10 mm 90 mm 17 10 Stainless steel 6418255
20 piece
SKS 10x90 A4 10 mm 90 mm 17 10 Stainless steel 6418256
20 piece
SKS 10x90 A5 10 mm 90 mm 17 10 Stainless steel 6418257
20 piece
Downloads

Download

Download
Download

EU declaration of conformity SKS 10x80 A5 / 6418247 , 0.22MB , pdf
Download

Download

SKS 10x80 A5 / 6418247
