Hexagonal bolt M10 F 10 | 80 | 17 | 10 | Steel
morepic-1 morepic-2 video-1 video-2 video-3 video-4

Hexagonal bolt M10 F

Item no. 6418250 | EAN 4012196437474

10 mm
17
10
Steel
Product description

Product description

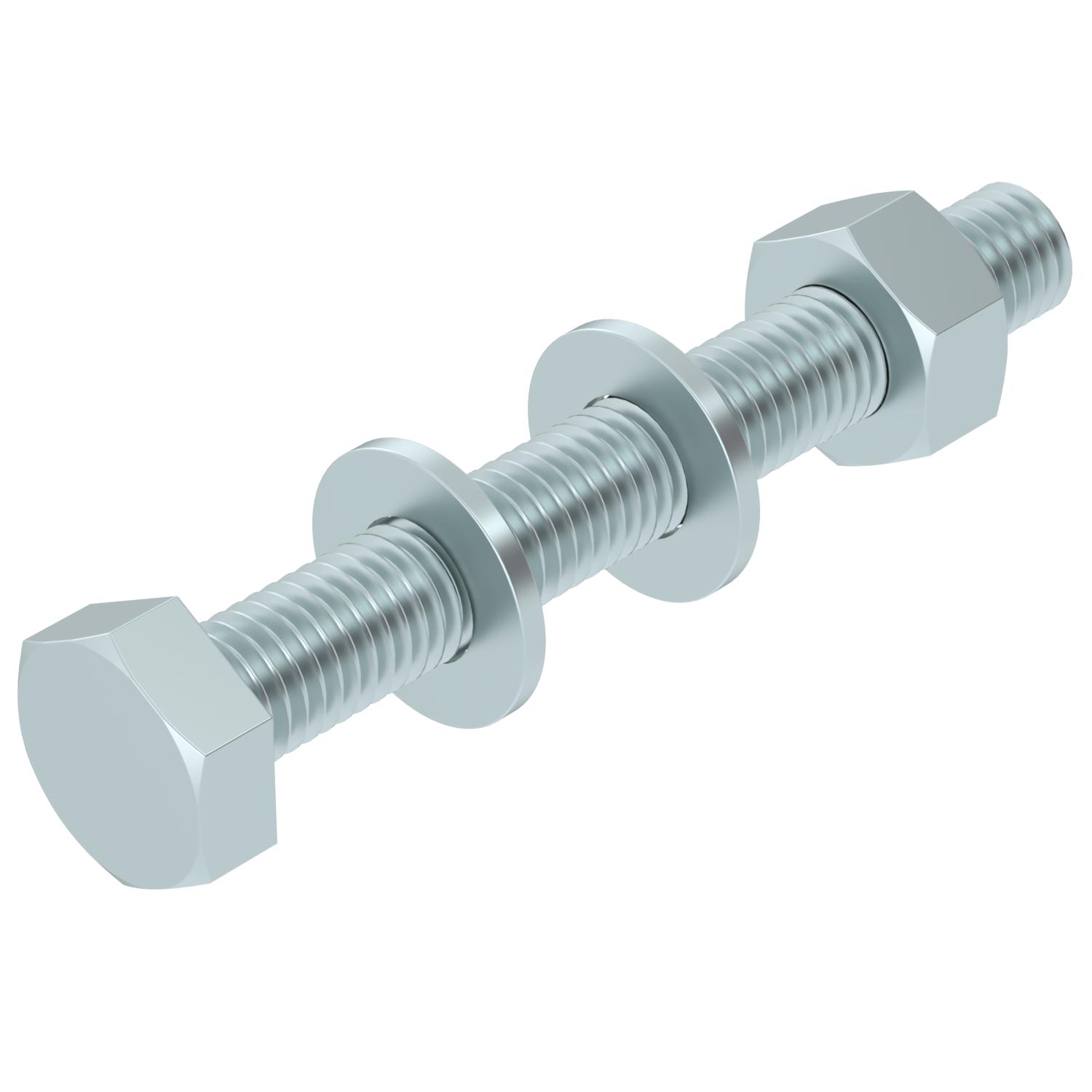

Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Dimension M10x80
Full thread yes
Material Steel
Resistance grade 8.8
Surface Hot galvanized
Thread M 10 x 80
Thread increase 1,5 mm
Thread metric 10
WAF 17
With nut yes
With washer yes

Dimensions

Dimension d 10 mm
Dimension L 80 mm
Length 80 mm
All types

All types

Types Dimension d Dimension L WAF Thread metric Material Item no. Quantity SSU
SKS 10x120 F 10 mm 120 mm 17 10 Steel 3160793
20 piece
SKS 10x60 F 10 mm 60 mm 17 10 Steel 6408516
20 piece
SKS 10x80 F 10 mm 80 mm 17 10 Steel 6418250
20 piece
SKS 10x90 F 10 mm 90 mm 17 10 Steel 6418252
20 piece
