Hexagonal bolt M12 F 12 | 100 | 19 | 12 | Steel
morepic-1 morepic-2 video-1 video-2

Hexagonal bolt M12 F

Item no. 6418295 | EAN 4012196204496

12 mm
19
12
Steel
Product description

Product description

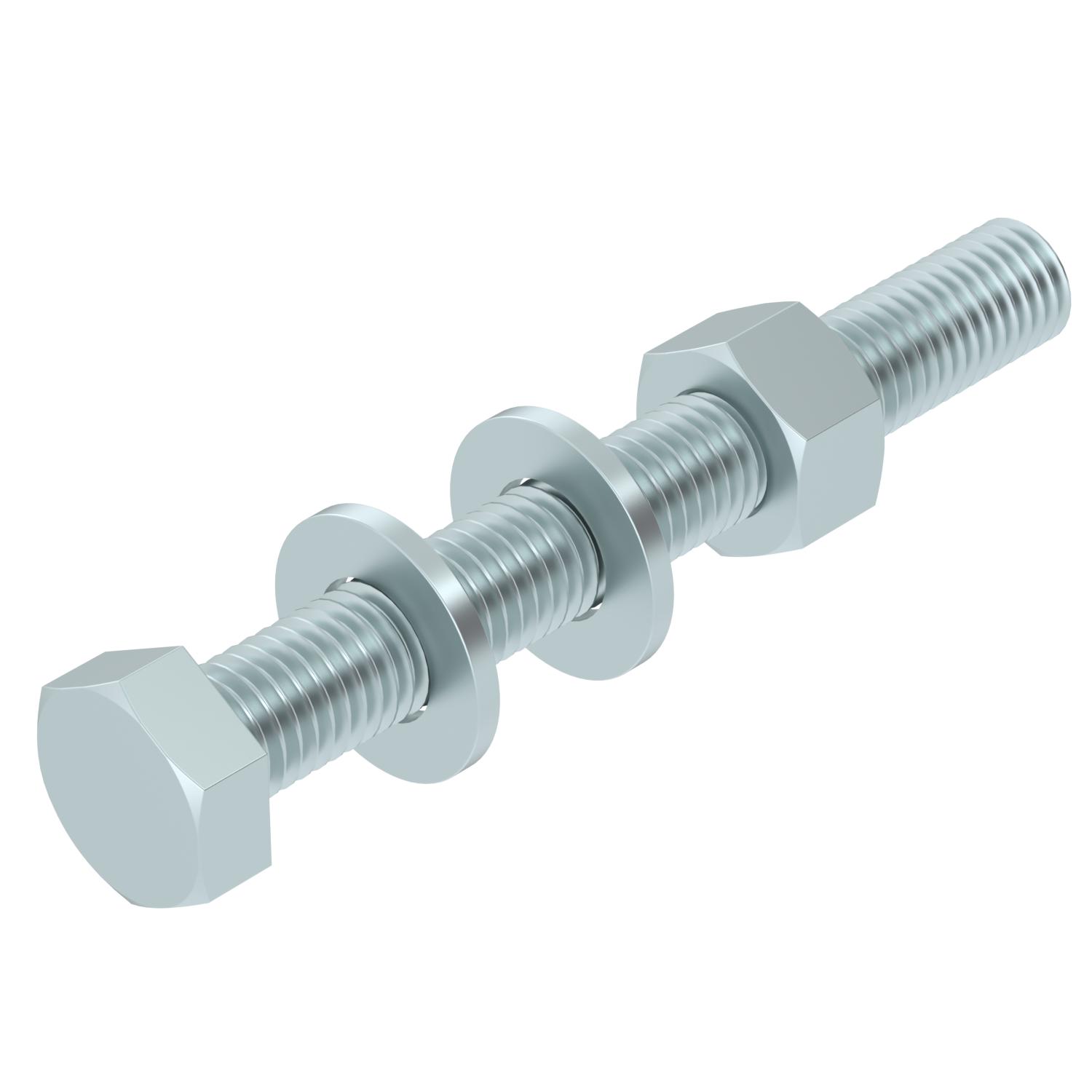

Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Dimension M12x100
Full thread yes
Material Steel
Resistance grade 8.8
Surface Hot galvanized
Thread M 12 x 100
Thread increase 1,75 mm
Thread metric 12
WAF 19
With nut yes
With washer yes

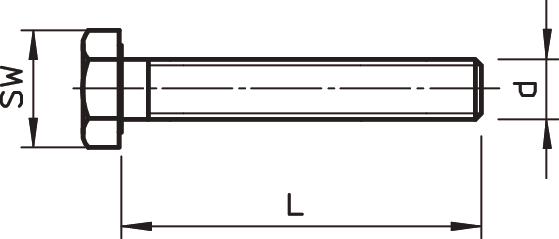

Dimensions

Dimension d 12 mm
Dimension L 100 mm
Dimension l 30 mm
Length 100 mm
All types

All types

Types Dimension d Dimension L WAF Thread metric Material Item no. Quantity SSU
SKS 12x30 F 12 mm 30 mm 19 12 Steel 3163091
20 piece
SKS 12x80 F 12 mm 80 mm 19 12 Steel 6418287
20 piece
SKS 12x100 F 12 mm 100 mm 19 12 Steel 6418295
20 piece
SKS 12x110 F 12 mm 110 mm 19 12 Steel 6418317
20 piece
SKS 12x130 F 12 mm 130 mm 19 12 Steel 6408478
20 piece
Downloads

Download

Download
Download
Download
Download

Declaration of conformity SKS 12x100 F / 6418295 , 0.22MB , pdf
Download
REACH Declaration of conformity SKS 12x100 F / 6418295 , 0.12MB , pdf
Download
RoHS Declaration of conformity SKS 12x100 F / 6418295 , 0.13MB , pdf
