Hexagonal bolt M8 F 8 | 30 | 13 | 8 | Steel
morepic-1 morepic-2

Hexagonal bolt M8 F

Item no. 3158640 | EAN 4012195256694

8 mm
13
8
Steel
Product description
Product description

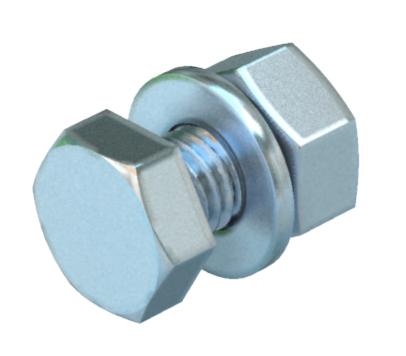

Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour zinc
Dimension M8x30
Dimension d 8 mm
Dimension L 30 mm
Full thread yes
Length 30 mm
Material Steel
Resistance grade 5.6
Surface Hot galvanized
Thread M 8 x 30
Thread increase 1,25 mm
Thread metric 8
WAF 13
With nut yes
With washer yes
All types

All types

Types Dimension d Dimension L WAF Thread metric Material Item no. Quantity SSU
SKS 8x16 F 8 mm 16 mm 13 8 Steel 3158624
50 piece
SKS 8x20 F 8 mm 20 mm 13 8 Steel 3158632
50 piece
SKS 8x30 F 8 mm 30 mm 13 8 Steel 3158640
50 piece
Downloads

Download

Download
Download

EU declaration of conformity SKS 8x30 F / 3158640 , 0.22MB , pdf
Download
REACH Declaration of conformity SKS 8x30 F / 3158640 , 0.12MB , pdf
Download
RoHS Declaration of conformity SKS 8x30 F / 3158640 , 0.12MB , pdf
Download

Download

SKS 8x30 F / 3158640
