Hexagonal nut DIN 934 V2A 8 | 6.8 | 13

morepic-1

morepic-2

Hexagonal nut DIN 934 V2A

Item no. 3397084 | EAN 4012195297734

Item no. / Types

Dimension d

Dimension h

WAF

Product description

Product description

Hexagonal nut to DIN 934 with metric thread.

Technical data

Technical data

Dimension	M8
Halogen-free	yes
Left thread	no
Material	Stainless steel
Nut version	Nut
Screw system nut	Hexagon head
Self-locking	no

Surface	Bright, treated
Thread	M8
Thread metric	8
Thread type	Metric
WAF	13
With flange	no

Dimensions

Dimension d	8 mm

Dimension h	6,8 mm

All types

All types

Types	Dimension d	Dimension h	WAF	Item no.	Quantity	SSU
HN M6 A2	6 mm	5.2 mm	10	3397068	piece	100 piece
HN M8 A2	8 mm	6.8 mm	13	3397084	piece	100 piece
HN M10 A2	10 mm	8.4 mm	17	3397106	piece	100 piece
HN M12 A2	12 mm	10.8 mm	19	3397114	piece	100 piece

Downloads

Data sheet HN M8 A2 / 3397084 , 0.22MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity HN M8 A2 / 3397084 , 0.05MB , pdf

Download

REACH Declaration of conformity HN M8 A2 / 3397084 , 0.12MB , pdf

Download

RoHS Declaration of conformity HN M8 A2 / 3397084 , 0.12MB , pdf

Download

Product graphic HN M8 A2 / 3397084, 23.85 kB, jpg

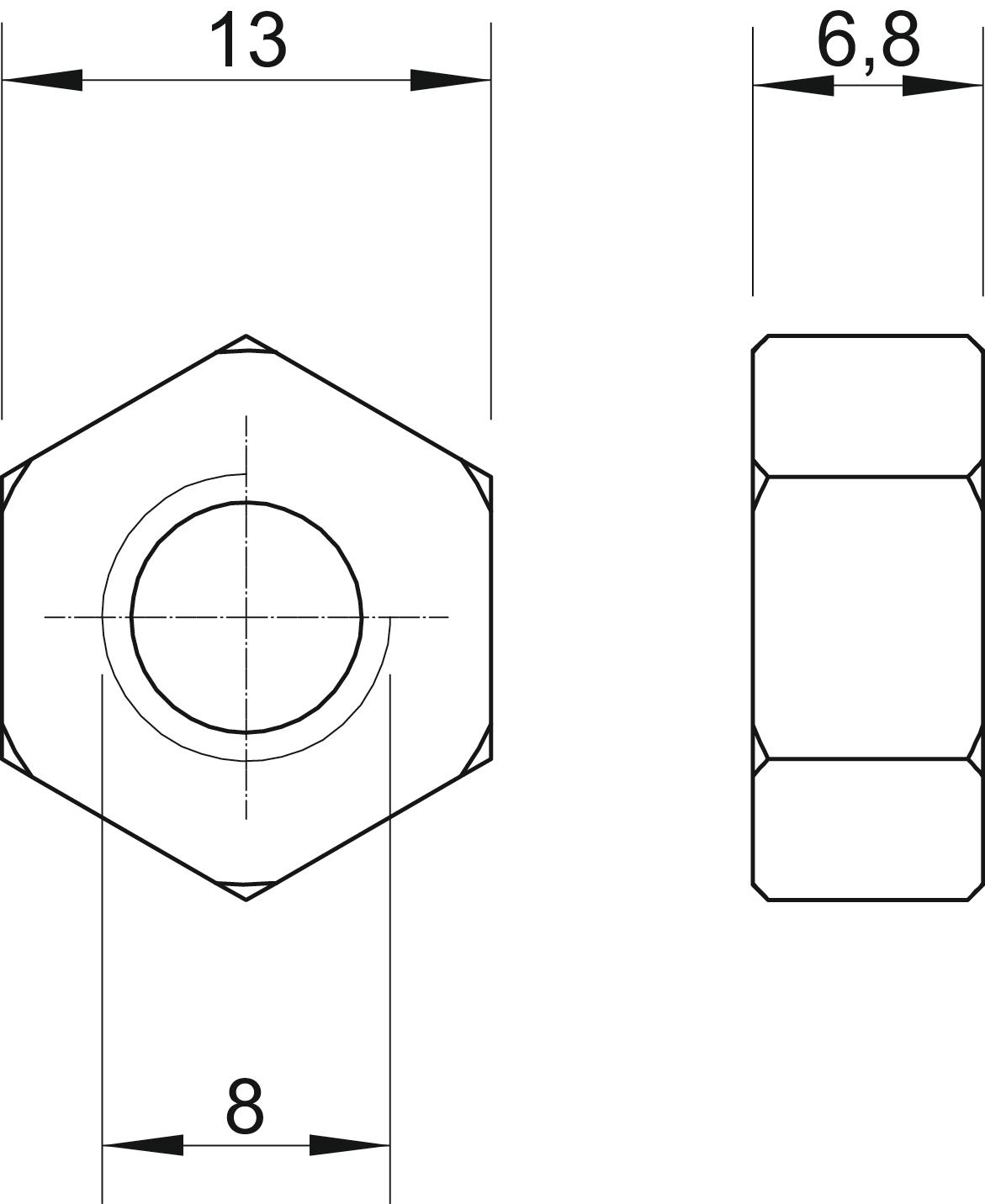

Scale drawing HN M8 A2 / 3397084, 59.57 kB, jpg

HN M8 A2 / 3397084
