Hexagonal nut DIN 934 V4A 12 | 10.8 | 19
morepic-1 morepic-2

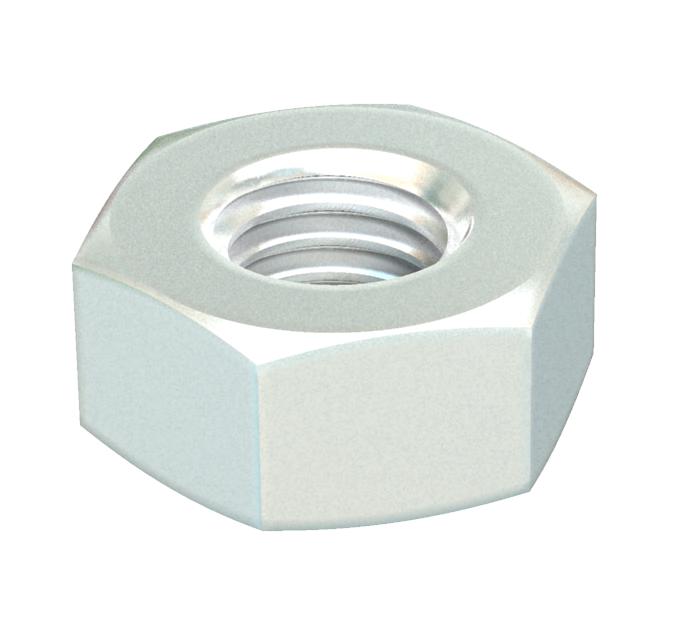

Hexagonal nut DIN 934 V4A

Item no. 3397145 | EAN 4012195894810

Product description
Product description
Hexagonal nut to DIN 934 with metric thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

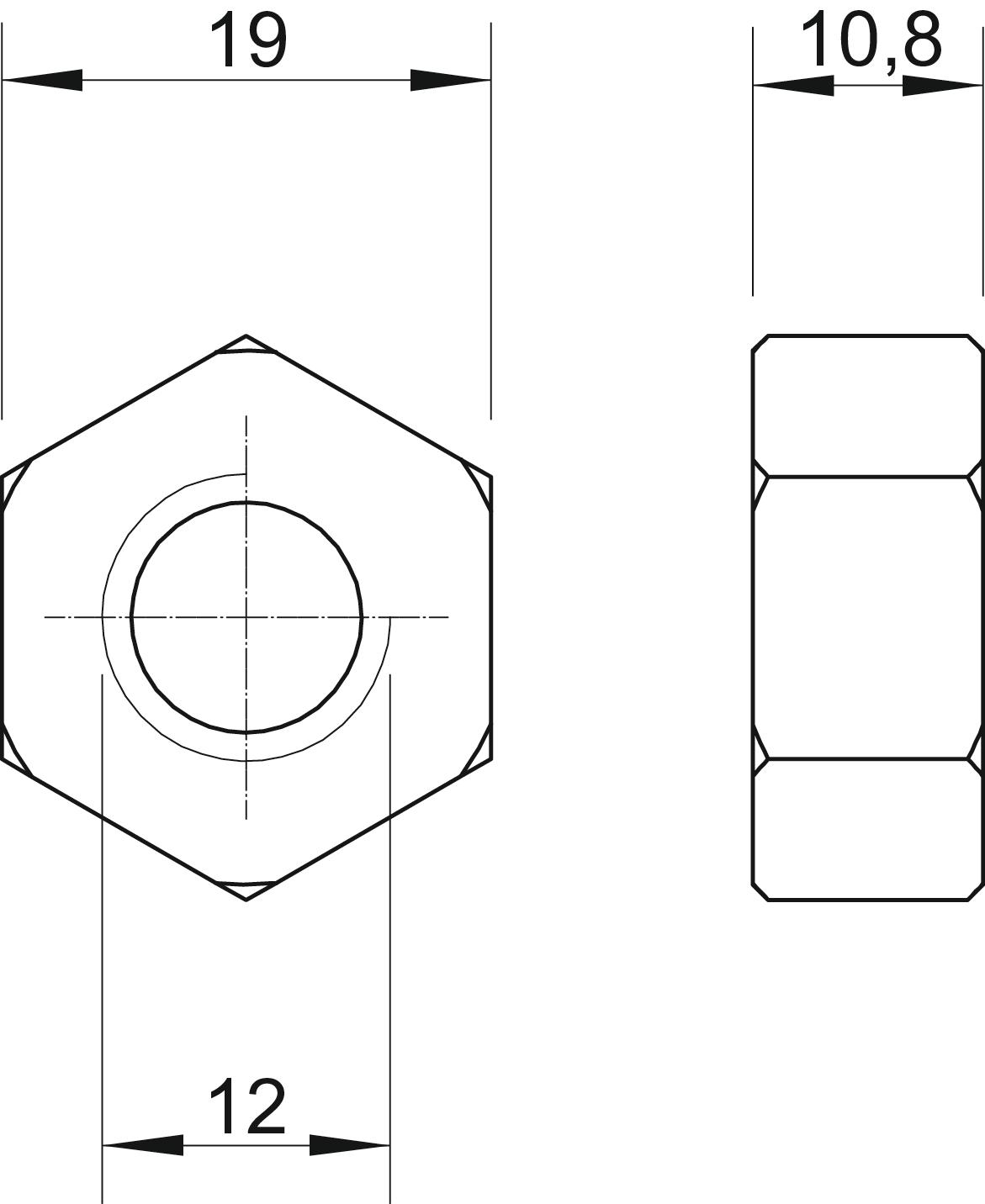

Dimension M12
Dimension d 12 mm
Dimension h 10,8 mm
Halogen-free yes
Left thread no
Material Stainless steel
Nut version Nut
Resistance grade 8
Screw system nut Hexagon head
Self-locking no
Surface Bright, treated
Thread M12
Thread metric 12
Thread type Metric
WAF 19
With flange no
All types

All types

Types Dimension d Dimension h WAF Item no. Quantity SSU
HN M12 A4 12 mm 10.8 mm 19 3397145
100 piece
HN M6 A4 6 mm 5.2 mm 10 3400173
100 piece
HN M8 A4 8 mm 6.8 mm 13 3400175
100 piece
HN M10 A4 10 mm 8.4 mm 17 3400177
100 piece
Downloads

Download

Download

EU declaration of conformity HN M12 A4 / 3397145 , 0.05MB , pdf
Download

HN M12 A4 / 3397145
