Hexagonal nut DIN 934 V4A 8 | 6.8 | 13

morepic-1

morepic-2

Hexagonal nut DIN 934 V4A

Item no. 3400175 | EAN 4012195909309

Item no. / Types

Dimension d

Dimension h

WAF

Product description

Product description

Hexagonal nut to DIN 934 with metric thread.

Technical data

Technical data

Dimension	M8
Dimension d	8 mm
Dimension h	6,8 mm
Halogen-free	yes
Left thread	no
Material	Stainless steel
Nut version	Nut
Resistance grade	8

Screw system nut	Hexagon head
Self-locking	no
Surface	Bright, treated
Thread	M8
Thread metric	8
Thread type	Metric
WAF	13
With flange	no

All types

All types

Types	Dimension d	Dimension h	WAF	Item no.	Quantity	SSU
HN M12 A4	12 mm	10.8 mm	19	3397145	piece	100 piece
HN M6 A4	6 mm	5.2 mm	10	3400173	piece	100 piece
HN M8 A4	8 mm	6.8 mm	13	3400175	piece	100 piece
HN M10 A4	10 mm	8.4 mm	17	3400177	piece	100 piece

Downloads

Data sheet HN M8 A4 / 3400175 , 0.17MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity HN M8 A4 / 3400175 , 0.05MB , pdf

Download

Product graphic HN M8 A4 / 3400175, 23.85 kB, jpg

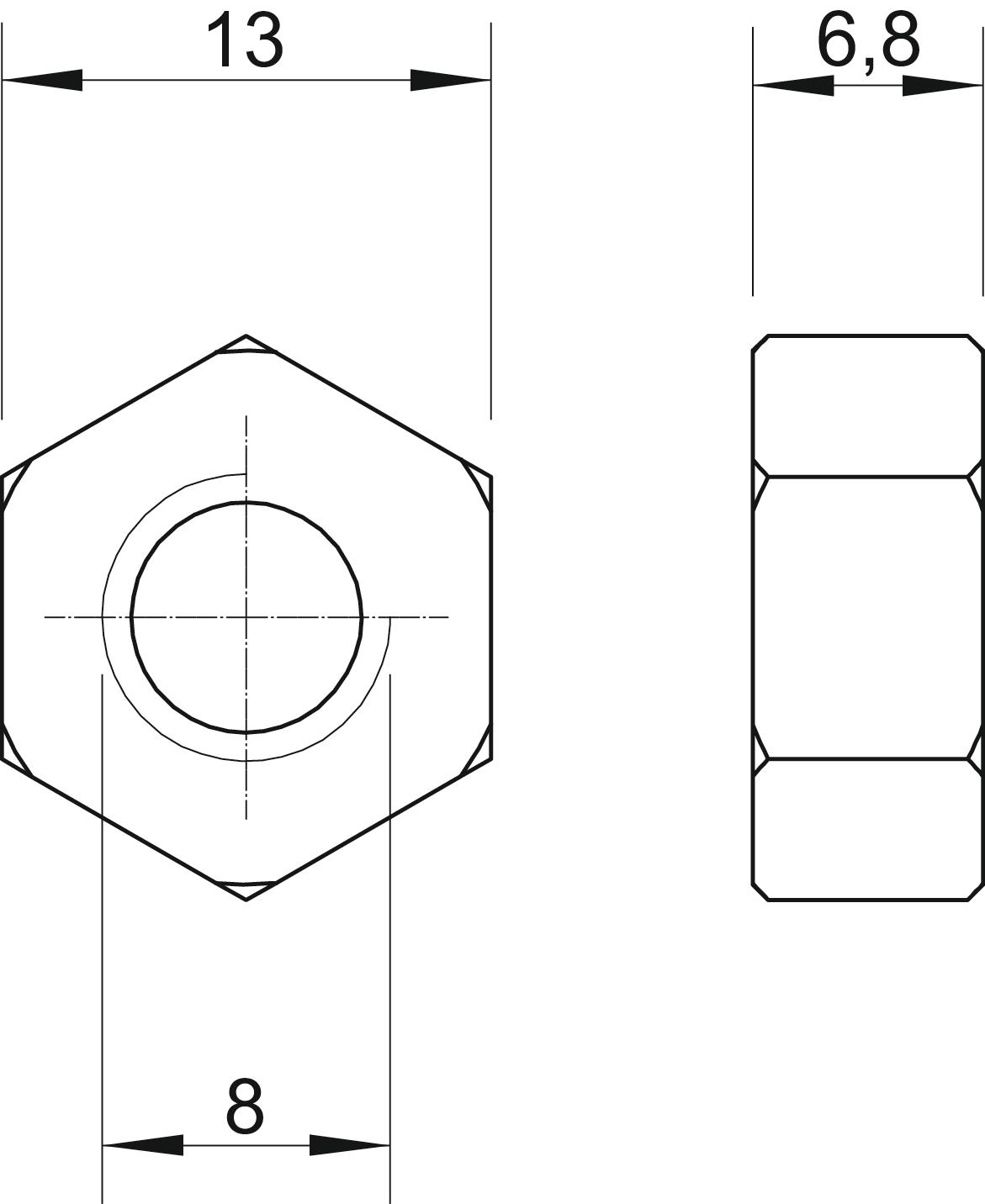

Scale drawing HN M8 A4 / 3400175, 59.30 kB, jpg

HN M8 A4 / 3400175
