Hexagonal nut DIN 934 V5A 6 | 5.2 | 10

morepic-1

morepic-2

Hexagonal nut DIN 934 V5A

Item no. 3400183 | EAN 4012195909354

Item no. / Types

Dimension d

Dimension h

WAF

Product description

Product description

Hexagonal nut to DIN 934 with metric thread.

Technical data

Technical data

Dimension	M6
Halogen-free	yes
Left thread	no
Material	Stainless steel
Nut version	Nut
Resistance grade	8
Screw system nut	Hexagon head

Self-locking	no
Thread	M6
Thread metric	6
Thread type	Metric
WAF	10
With flange	no

Dimensions

Dimension d	6 mm

Dimension h	5,2 mm

All types

All types

Types	Dimension d	Dimension h	WAF	Item no.	Quantity	SSU
HN M6 A5	6 mm	5.2 mm	10	3400183	piece	100 piece
HN M8 A5	8 mm	6.8 mm	13	3400185	piece	100 piece

Downloads

Data sheet HN M6 A5 / 3400183 , 0.21MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity HN M6 A5 / 3400183 , 0.05MB , pdf

Download

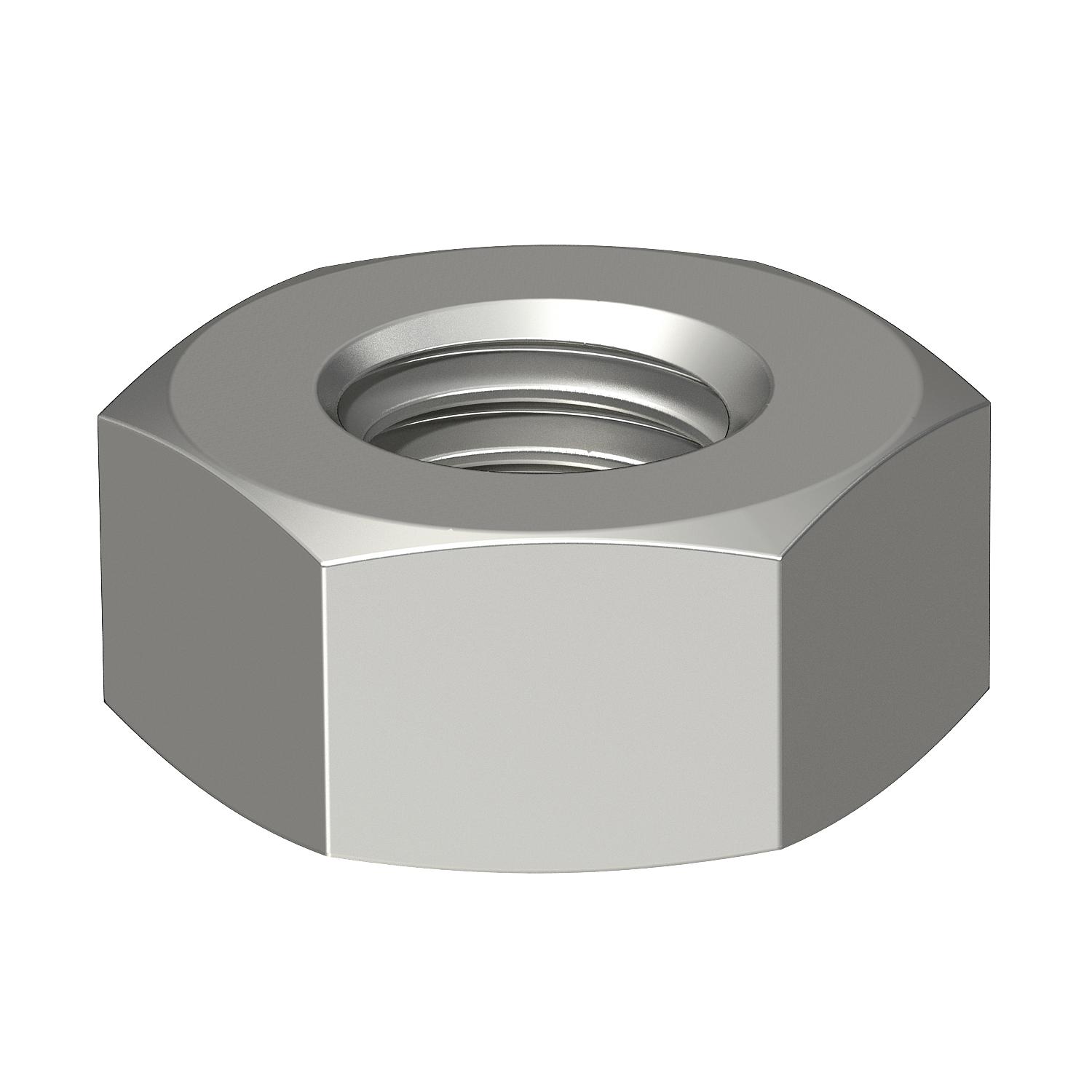

Product graphic HN M6 A5 / 3400183, 67.41 kB, jpg

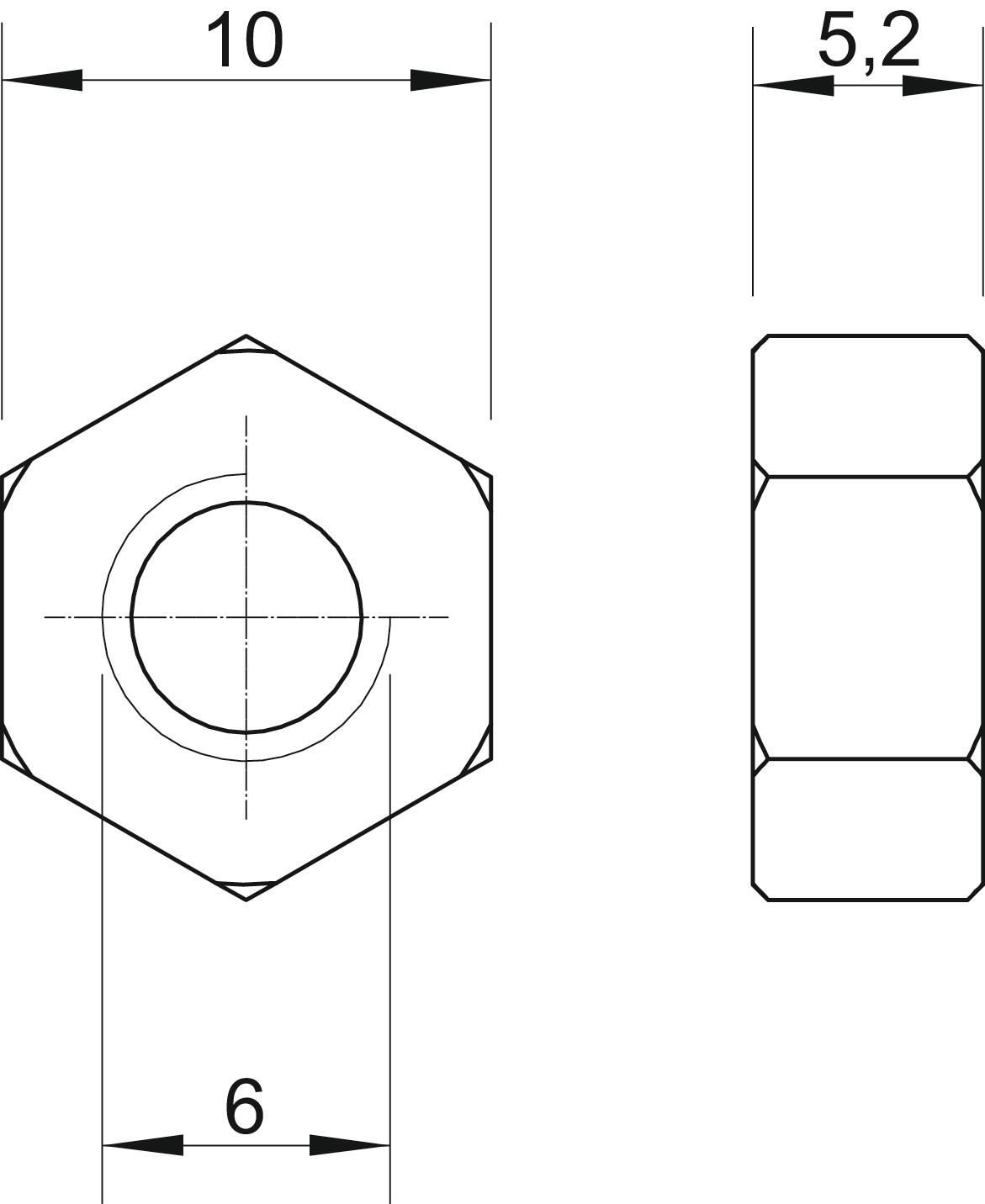

Scale drawing HN M6 A5 / 3400183, 58.71 kB, jpg

HN M6 A5 / 3400183
