Hexagonal nut DIN 934 V5A 8 | 6.8 | 13

morepic-1

morepic-2

Hexagonal nut DIN 934 V5A

Item no. 3400185 | EAN 4012195909361

Item no. / Types

Dimension d

Dimension h

WAF

Product description

Product description

Hexagonal nut to DIN 934 with metric thread.

Technical data

Technical data

Dimension	M8
Halogen-free	yes
Left thread	no
Material	Stainless steel
Nut version	Nut
Resistance grade	8
Screw system nut	Hexagon head

Self-locking	no
Thread	M8
Thread metric	8
Thread type	Metric
WAF	13
With flange	no

Dimensions

Dimension d	8 mm

Dimension h	6,8 mm

All types

All types

Types	Dimension d	Dimension h	WAF	Item no.	Quantity	SSU
HN M6 A5	6 mm	5.2 mm	10	3400183	piece	100 piece
HN M8 A5	8 mm	6.8 mm	13	3400185	piece	100 piece

Downloads

Data sheet HN M8 A5 / 3400185 , 0.21MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity HN M8 A5 / 3400185 , 0.05MB , pdf

Download

Product graphic HN M8 A5 / 3400185, 67.41 kB, jpg

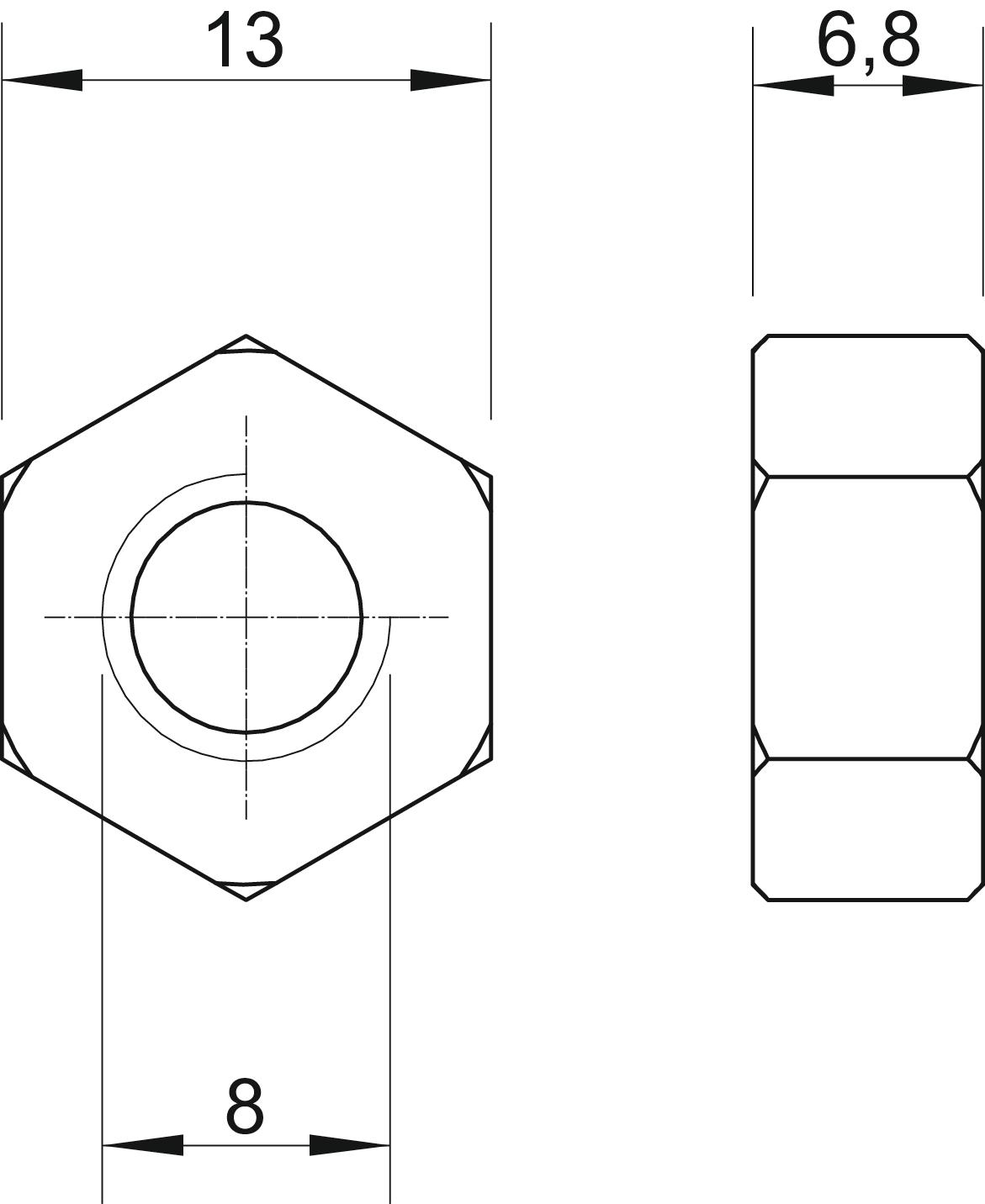

Scale drawing HN M8 A5 / 3400185, 59.30 kB, jpg

HN M8 A5 / 3400185
