Hexagonal nut ISO 4032 10 | 8.4 | 17

morepic-1

morepic-2

Hexagonal nut ISO 4032

Item no. 3400360 | EAN 4012195298519

Item no. / Types

Dimension d

Dimension h

WAF

Product description

Product description

Hexagonal nut to DIN 934 with metric thread.

Technical data

Technical data

Dimension	M10
Halogen-free	yes
Left thread	no
Material	Steel
Nut version	Nut
Screw system nut	Hexagon head
Self-locking	no

Surface	Hot galvanized
Thread	M10
Thread metric	10
Thread type	Metric
WAF	17
With flange	no

Dimensions

Dimension d	10 mm

Dimension h	8,4 mm

All types

All types

Types	Dimension d	Dimension h	WAF	Item no.	Quantity	SSU
DIN934 M6 F	6 mm	5.2 mm	10	3400344	piece	100 piece
DIN934 M8 F	8 mm	6.8 mm	13	3400352	piece	100 piece
DIN934 M10 F	10 mm	8.4 mm	17	3400360	piece	100 piece
DIN934 M12 F	12 mm	10.8 mm	19	3400379	piece	100 piece

Downloads

Data sheet DIN934 M10 F / 3400360 , 0.17MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

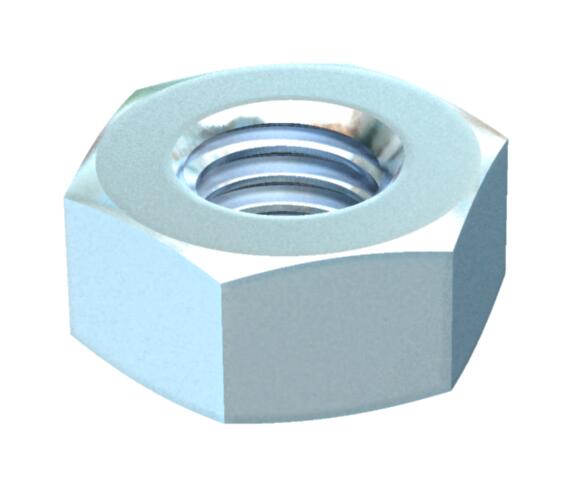

Product graphic DIN934 M10 F / 3400360, 18.36 kB, jpg

Scale drawing DIN934 M10 F / 3400360, 19.49 kB, jpg

DIN934 M10 F / 3400360

3400360_KSTP1.stp, 101.93 kB
