Hexagonal nut ISO 4032

Item no. 3400344 | EAN 4012195298397

Item no. / Types

Dimension d

Dimension h

WAF

Product description

Product description

Hexagonal nut to DIN 934 with metric thread.

Technical data

Technical data

Colour	zinc
Dimension	M6
Dimension d	6 mm
Dimension h	5,2 mm
Halogen-free	yes
Left thread	no
Material	Steel
Nut version	Nut

Screw system nut	Hexagon head
Self-locking	no
Surface	Hot galvanized
Thread	M6
Thread metric	6
Thread type	Metric
WAF	10
With flange	no

All types

All types

Types	Dimension d	Dimension h	WAF	Item no.	Quantity	SSU
DIN934 M6 F	6 mm	5.2 mm	10	3400344	piece	100 piece
DIN934 M8 F	8 mm	6.8 mm	13	3400352	piece	100 piece
DIN934 M10 F	10 mm	8.4 mm	17	3400360	piece	100 piece
DIN934 M12 F	12 mm	10.8 mm	19	3400379	piece	100 piece

Downloads

Data sheet DIN934 M6 F / 3400344 , 0.13MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

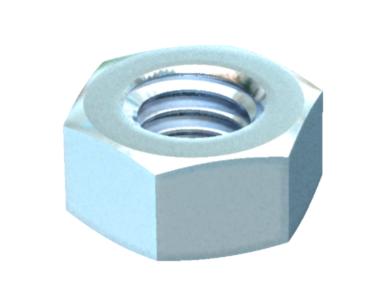

Product graphic DIN934 M6 F / 3400344, 10.31 kB, jpg

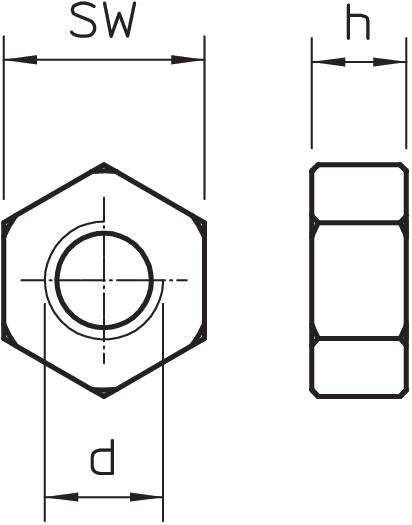

Scale drawing DIN934 M6 F / 3400344, 19.49 kB, jpg

DIN934 M6 F / 3400344
