Hexagonal wood screw DIN 571

Item no. 3188272 | EAN 4012195270430

Steel
Product description
Product description
Hexagonal screw to DIN 571 with wood thread. Suitable for anchors, type 910.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

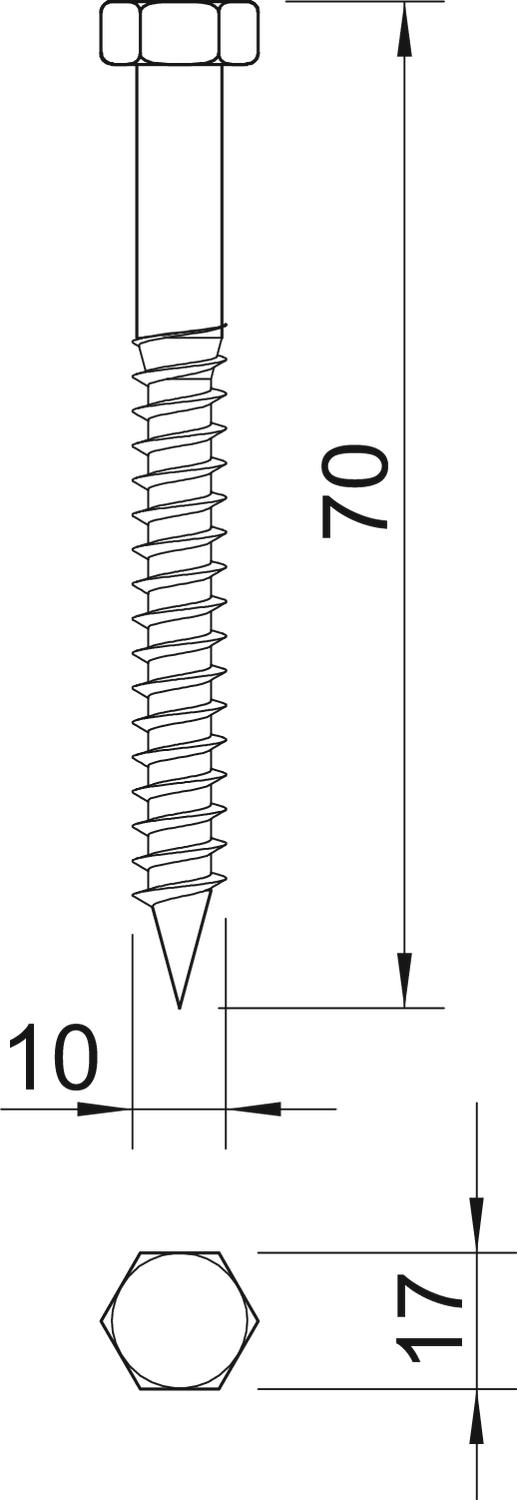

Dimension 10x70mm
Dimension D 10 mm
Dimension L 70 mm
Length 70 mm
Material Steel
Shank diameter 10 mm
Surface Electrogalvanized
WAF 17
All types

All types

Types Dimension L WAF Material Item no. Quantity SSU
HHWS 6x40 G 40 mm 10 Steel 3188043
50 piece
HHWS 6x50 G 50 mm 10 Steel 3188051
50 piece
HHWS 6x60 G 60 mm 10 Steel 3188078
50 piece
HHWS 6x80 G 80 mm 10 Steel 3188094
50 piece
HHWS 8x40 G 40 mm 13 Steel 3188140
50 piece
HHWS 8x50 G 50 mm 13 Steel 3188159
50 piece
HHWS 8x60 G 60 mm 13 Steel 3188167
50 piece
HHWS 8x70 G 70 mm 13 Steel 3188175
50 piece
HHWS 8x80 G 80 mm 13 Steel 3188183
50 piece
HHWS 8x100 G 100 mm 13 Steel 3188205
50 piece
HHWS 10x60 G 60 mm 17 Steel 3188256
25 piece
HHWS 10x70 G 70 mm 17 Steel 3188272
25 piece
HHWS 10x80 G 80 mm 17 Steel 3188280
25 piece
HHWS 10x100 G 100 mm 17 Steel 3188302
25 piece
HHWS 12x70 G 70 mm 19 Steel 3188361
20 piece
HHWS 12x80 G 80 mm 19 Steel 3188388
20 piece
