Hold-down clamp w. press plate 32 A2 32 | Stainless steel | Bright, treated |

morepic-1

morepic-2

Hold-down clamp w. press plate 32 A2

Item no. 6221065 | EAN 4012196654659

Item no. / Types	6221065 / KLL 32 MD A2

Height	32 mm

Material	Stainless steel

Surface	Bright, treated

Product description

Product description

Hold-down clamp for position fixing of horizontal cable ladders on horizontal steel girders.

Technical data

Technical data

Colour	stainless steel
Dimension	32x88x5
Height	32 mm

Material	Stainless steel
Surface	Bright, treated

All types

All types

Types	Height	Material	Surface	Item no.	Quantity	SSU
KLL 32 MD A2	32 mm	Stainless steel	Bright, treated	6221065	piece	10 piece

Downloads

Data sheet KLL 32 MD A2 / 6221065 , 0.20MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity KLL 32 MD A2 / 6221065 , 0.10MB , pdf

UK Declaration of Conformity KLL 32 MD A2 / 6221065 , 0.09MB , pdf

Download

Mounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf

Mounting instructions Weitspannkabelleitern , 11.33MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

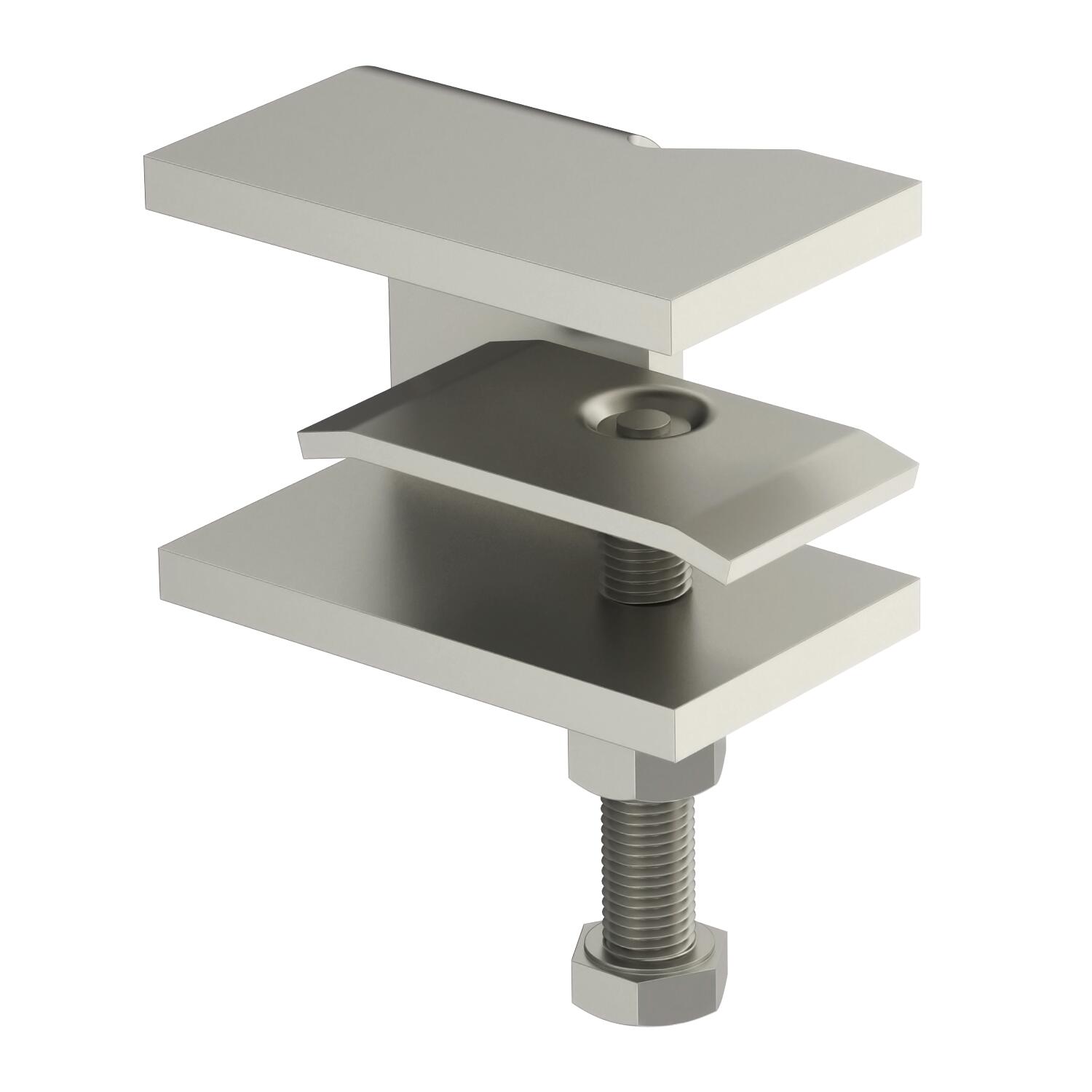

Product graphic KLL 32 MD A2 / 6221065, 54.72 kB, jpg

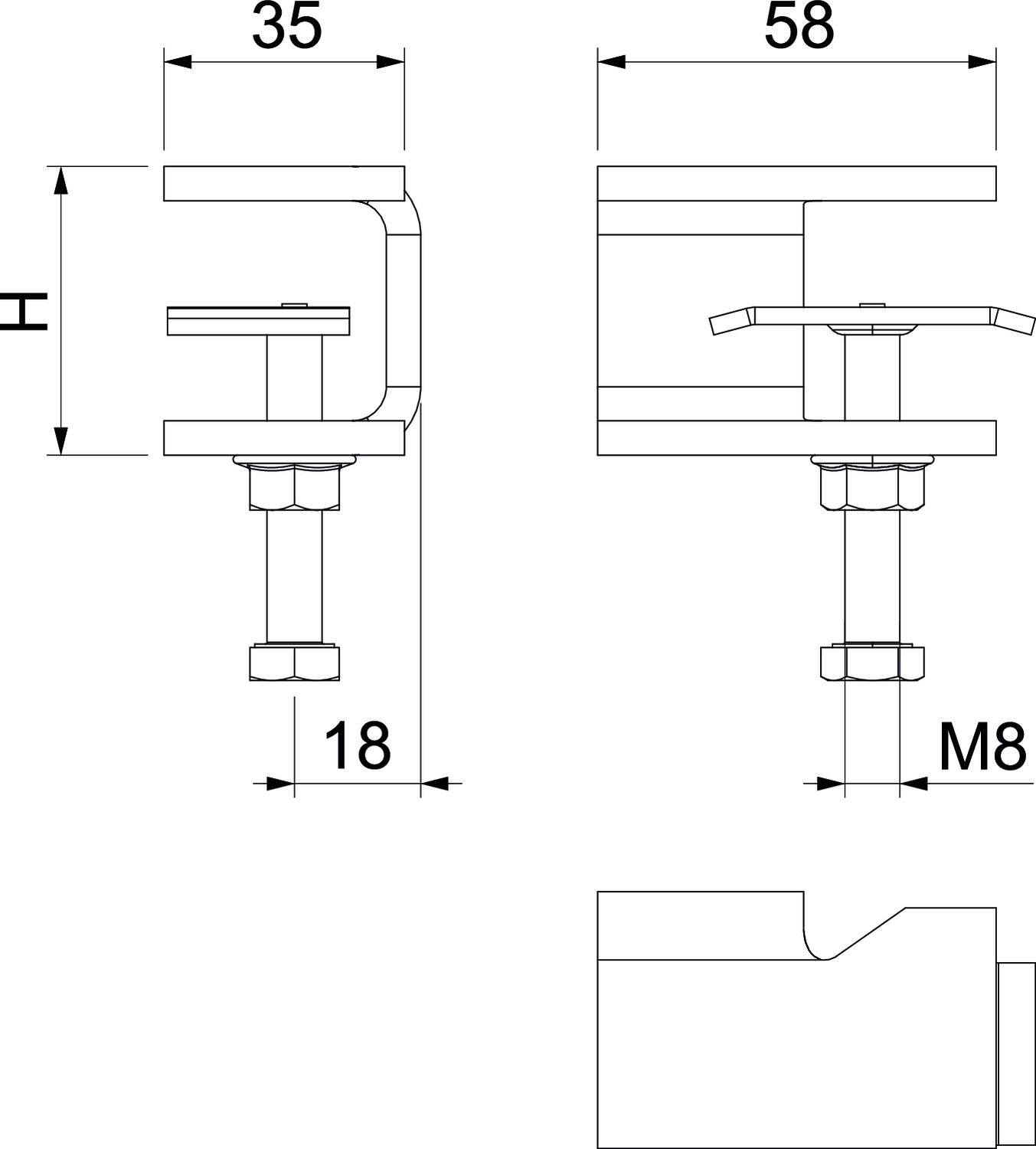

Scale drawing KLL 32 MD A2 / 6221065, 63.89 kB, jpg

KLL 32 MD A2 / 6221065

6221065_KSTP1.stp, 209.69 kB
