Holder, V support

Item no. 5408990 | EAN 4012195613411

Item no. / Types	5408990 / 101 HV-16

Dimension B	48 mm

Dimension d min.	30 mm

Dimension d Ø	16 mm

Dimension L	90 mm

Product description

Product description

• Rod holder to accept two GRP rods
• Bracket and crossbar for 16 and 20 mm rods and Rd 8-10 mm

Technical data

Technical data

Dimension	150x100x65
Dimension B	48 mm
Dimension d min.	30 mm
Dimension d Ø	16 mm

Dimension H	55 mm
Dimension L	90 mm
Material	Stainless steel

All types

All types

Types	Dimension B	Dimension d min.	Dimension d Ø	Dimension L	Item no.	Quantity	SSU
101 HV-16	48 mm	30 mm	16 mm	90 mm	5408990	piece	10 piece

Downloads

Data sheet 101 HV-16 / 5408990 , 0.18MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

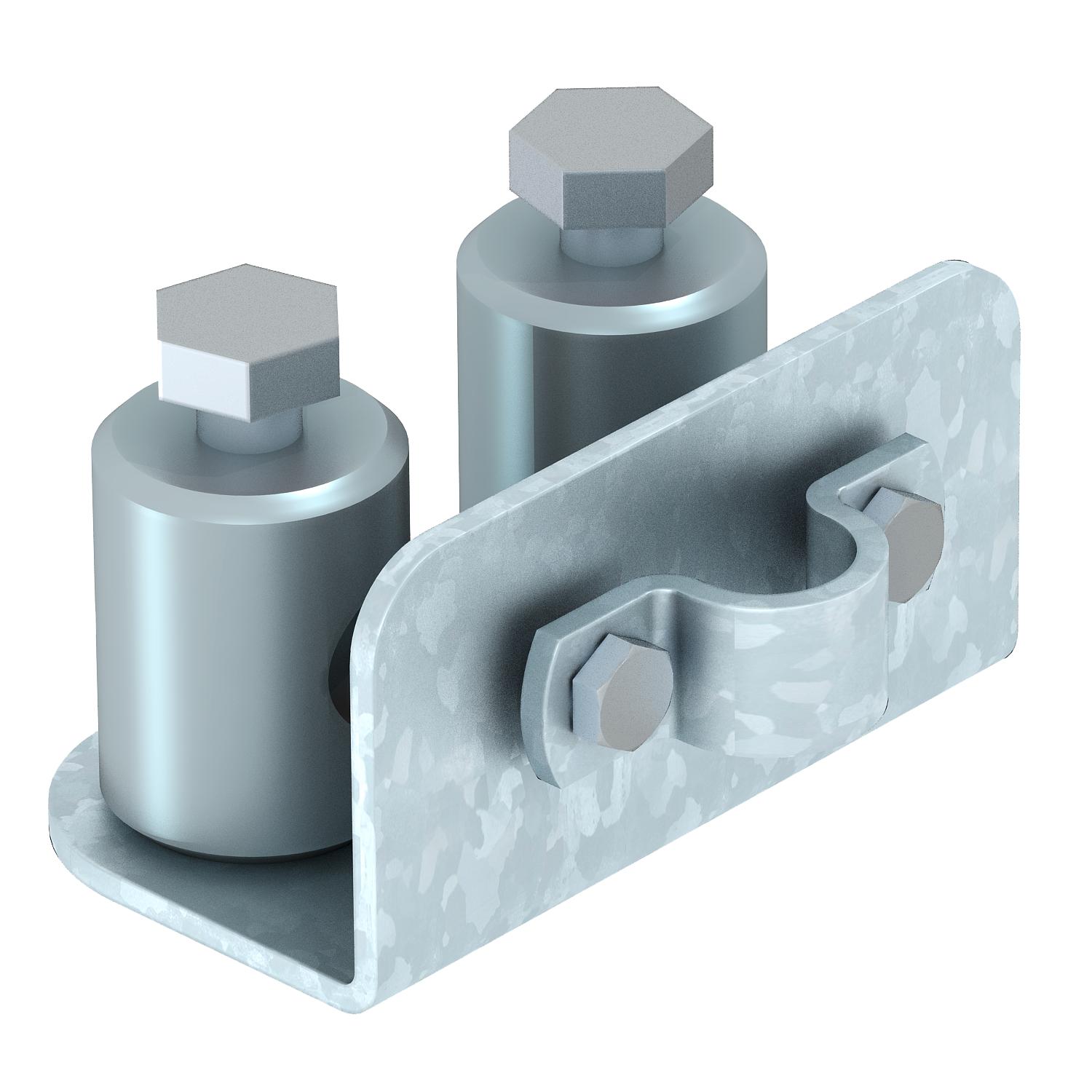

Product graphic 101 HV-16 / 5408990, 112.30 kB, jpg

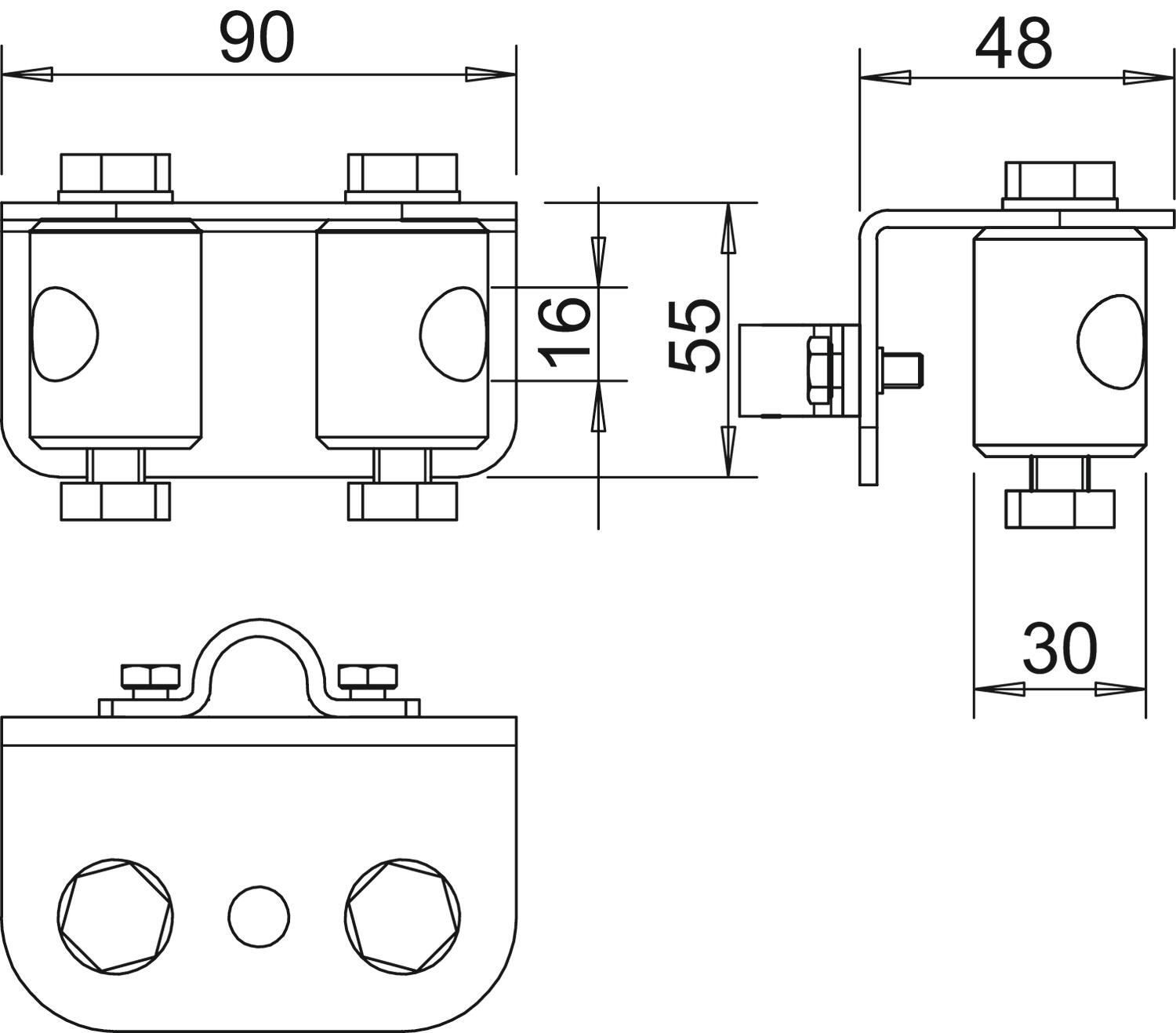

Scale drawing 101 HV-16 / 5408990, 89.40 kB, jpg
