Hook-head screw A4 35 | 14 | 7.5 | M10x30mm
morepic-1 morepic-2

Hook-head screw A4

Item no. 1148160 | EAN 4012196489572

35 mm
Product description
Product description
Hook-head screw for use with MS4022 profile rail
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 18 mm
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,29 kg CO₂e / 1 Piece
Dimension M10x30mm
Height 7,5 mm
Length 35 mm
Material Stainless steel
Suitable for mounting rail yes
Surface Bright, treated
Thread M10x30mm
Thread metric 10
Torque 14 Nm
Width 14 mm
All types

All types

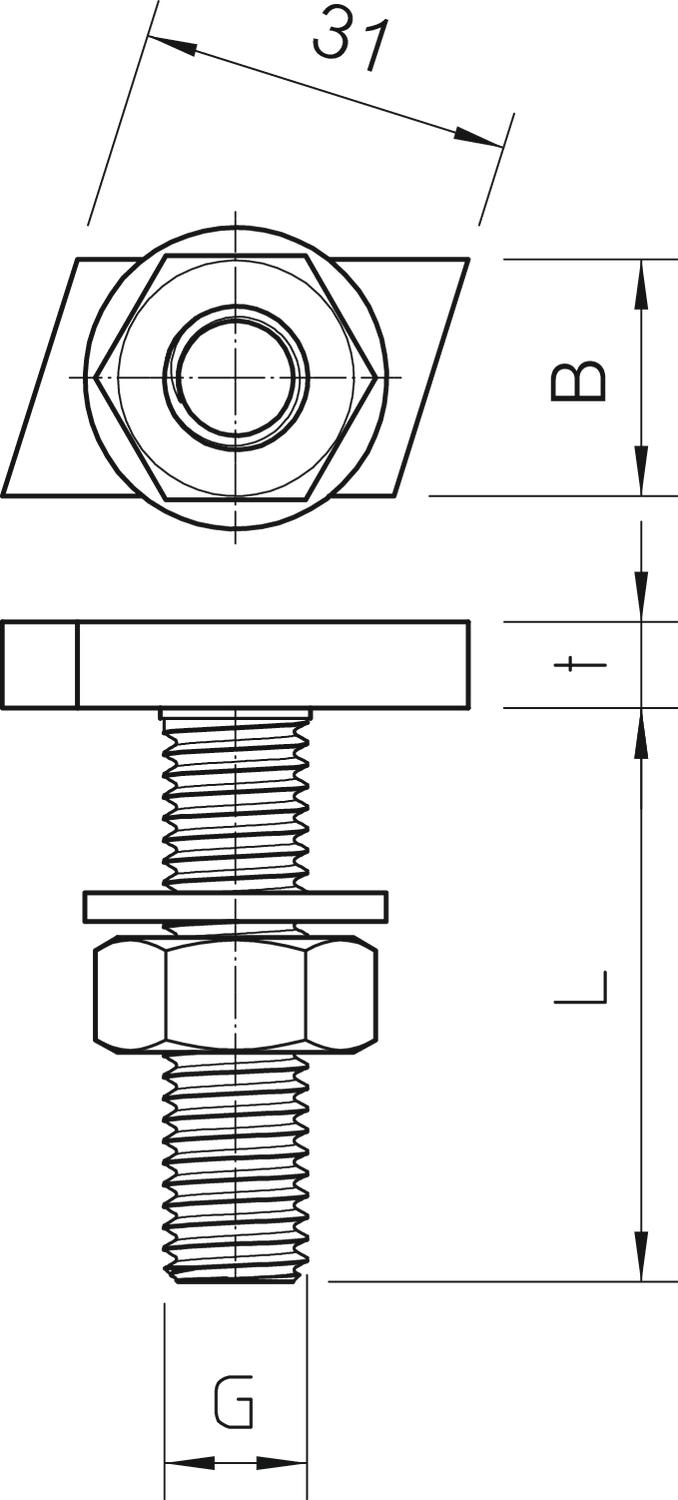

Types Length Width Height Thread Item no. Quantity SSU
MS40HB M6x30 A4 35 mm 17 mm 10 mm M6x30mm 1148146
50 piece
MS40HB M8x30 A4 35 mm 17 mm 10 mm M8x30mm 1148150
50 piece
MS40HB M8x60 A4 35 mm 17 mm 10 mm M8x60mm 1148154
25 piece
MS40HB M10x30 A4 35 mm 14 mm 7.5 mm M10x30mm 1148160
50 piece
MS40HB M10x60 A4 35 mm 14 mm 7.5 mm M10x60mm 1148164
25 piece
MS40HB M12x30 A4 35 mm 14 mm 7.5 mm M12x30mm 1148168
50 piece
MS40HB M12x60 A4 35 mm 14 mm 7.5 mm M12x60mm 1148170
25 piece
Downloads

Download

Download

REACH Declaration of conformity MS40HB M10x30 A4 / 1148160 , 0.12MB , pdf
Download
RoHS Declaration of conformity MS40HB M10x30 A4 / 1148160 , 0.12MB , pdf
Download

MS40HB M10x30 A4 / 1148160
