Hook nail G

Item no. 3342506 | EAN 4012195288374

18 mm
Product description
Product description

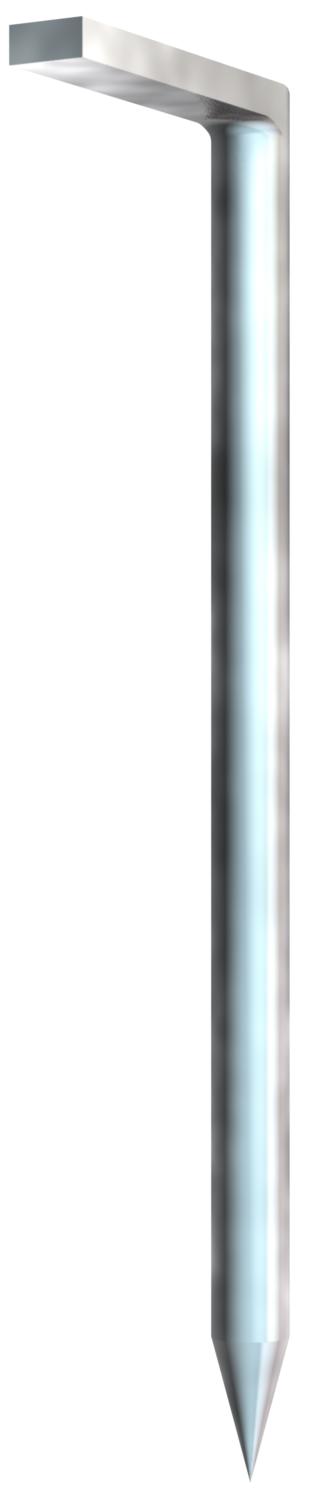

Hook nail, unhardened 3.4 x 50 mm
Technical data

Technical data

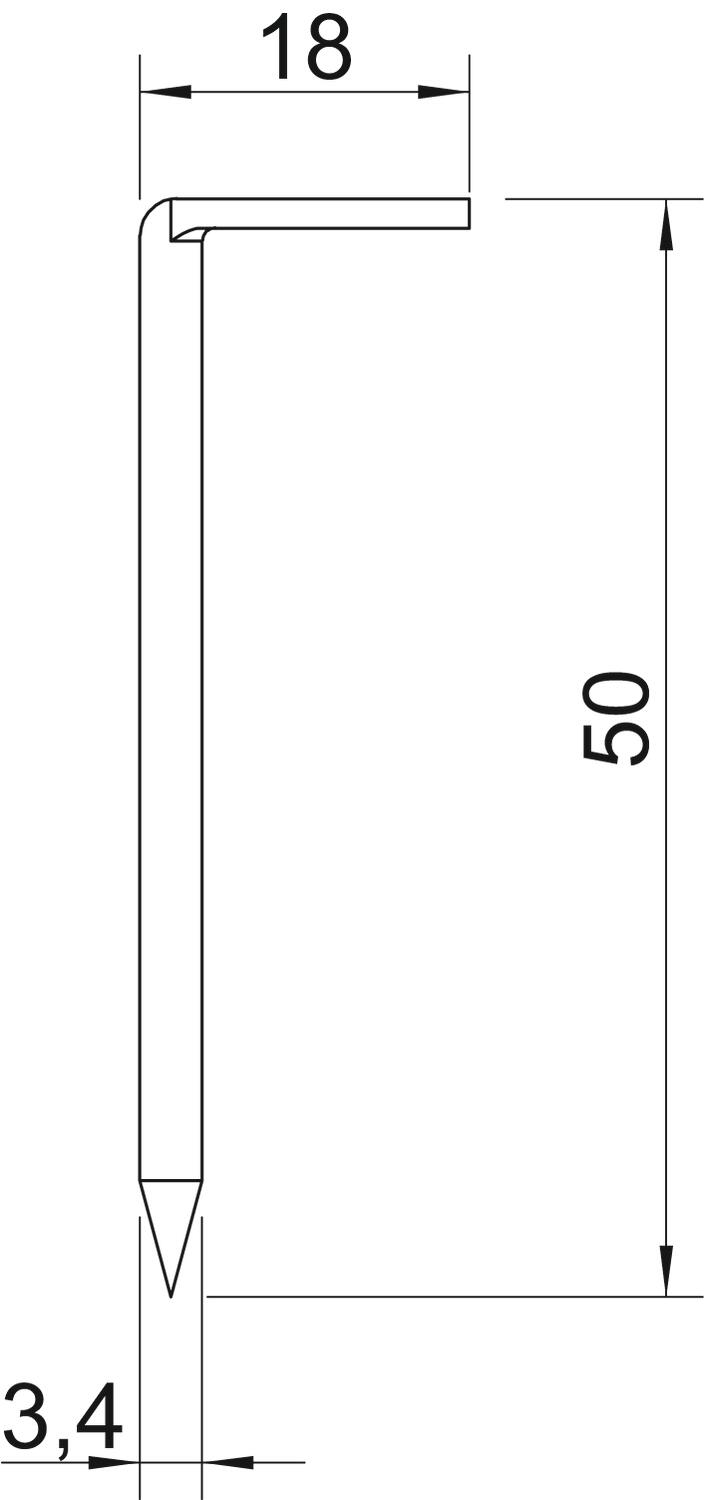

Dimension 3,4x50mm
Dimension B 18 mm
Dimension d 3,4 mm
Dimension L 50 mm
Length 50 mm
Length/shank diameter 50/3,4 mm
Material Steel
Shank diameter 3,4 mm
Surface Electrogalvanized
All types

All types

Types Length Dimension B Dimension d Item no. Quantity SSU
1101 Z 40 G 40 mm 18 mm 3 mm 3342042
250 piece
1101 Z 50 G 50 mm 18 mm 3 mm 3342050
250 piece
1101 Z 60 G 60 mm 18 mm 3 mm 3342069
250 piece
1101 Z 70 G 70 mm 18 mm 3 mm 3342077
250 piece
1101 Z3.4x50 G 50 mm 18 mm 3.4 mm 3342506
250 piece
1101 Z3.4x60 G 60 mm 18 mm 3.4 mm 3342603
250 piece
1101 Z3.4x70 G 70 mm 18 mm 3.4 mm 3342700
250 piece
1101 Z3.4x80 G 80 mm 18 mm 3.4 mm 3342808
250 piece
