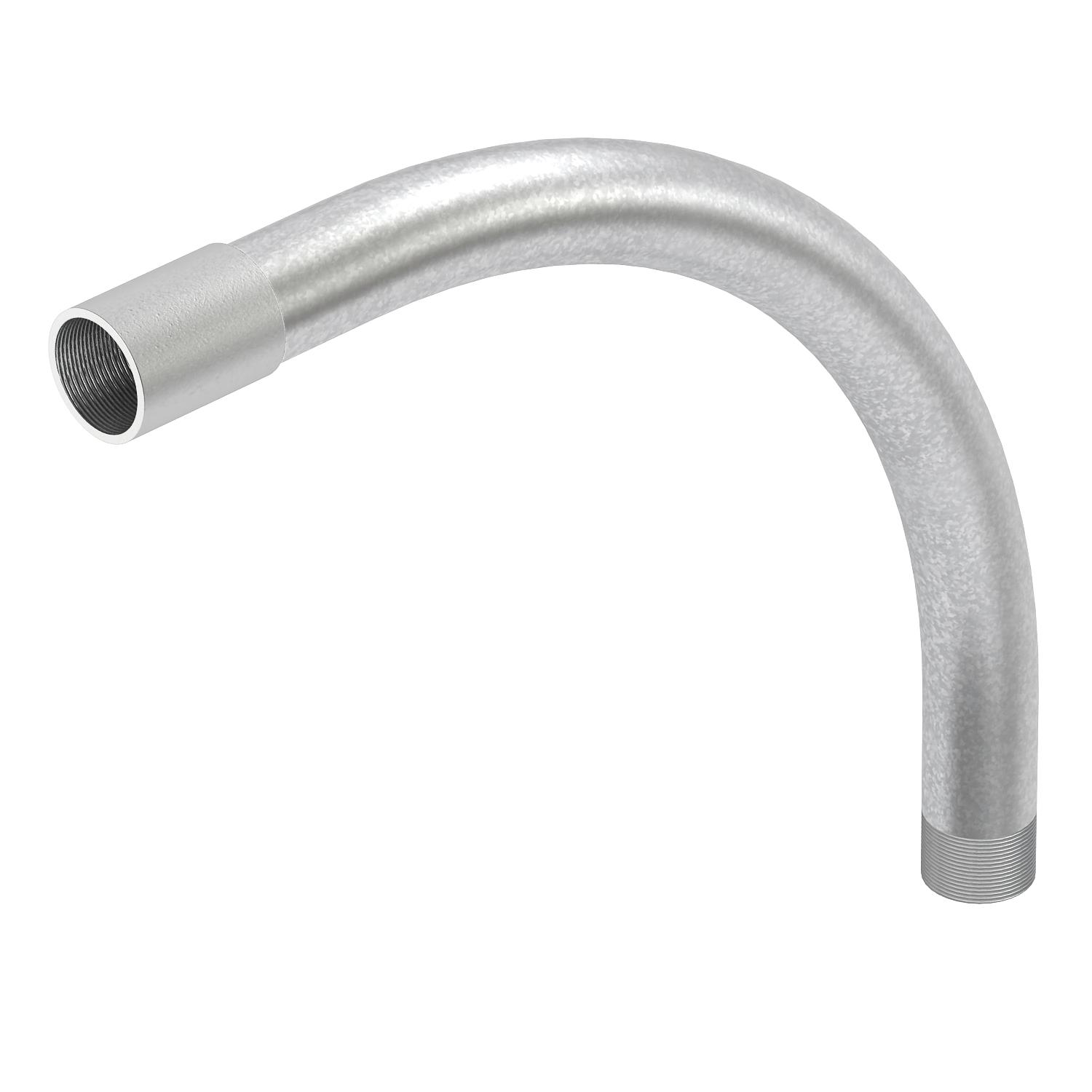

Hot-dip galvanised steel bend, with thread M63x1,5

Hot-dip galvanised steel bend, with thread

Item no. 2046792 | EAN 4012196387663

Item no. / Types

Thread

Product description

Product description

90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.

Technical data

Technical data

Angle of the bend	90 °
Brushed surface	no
Dimension	M63x1,5

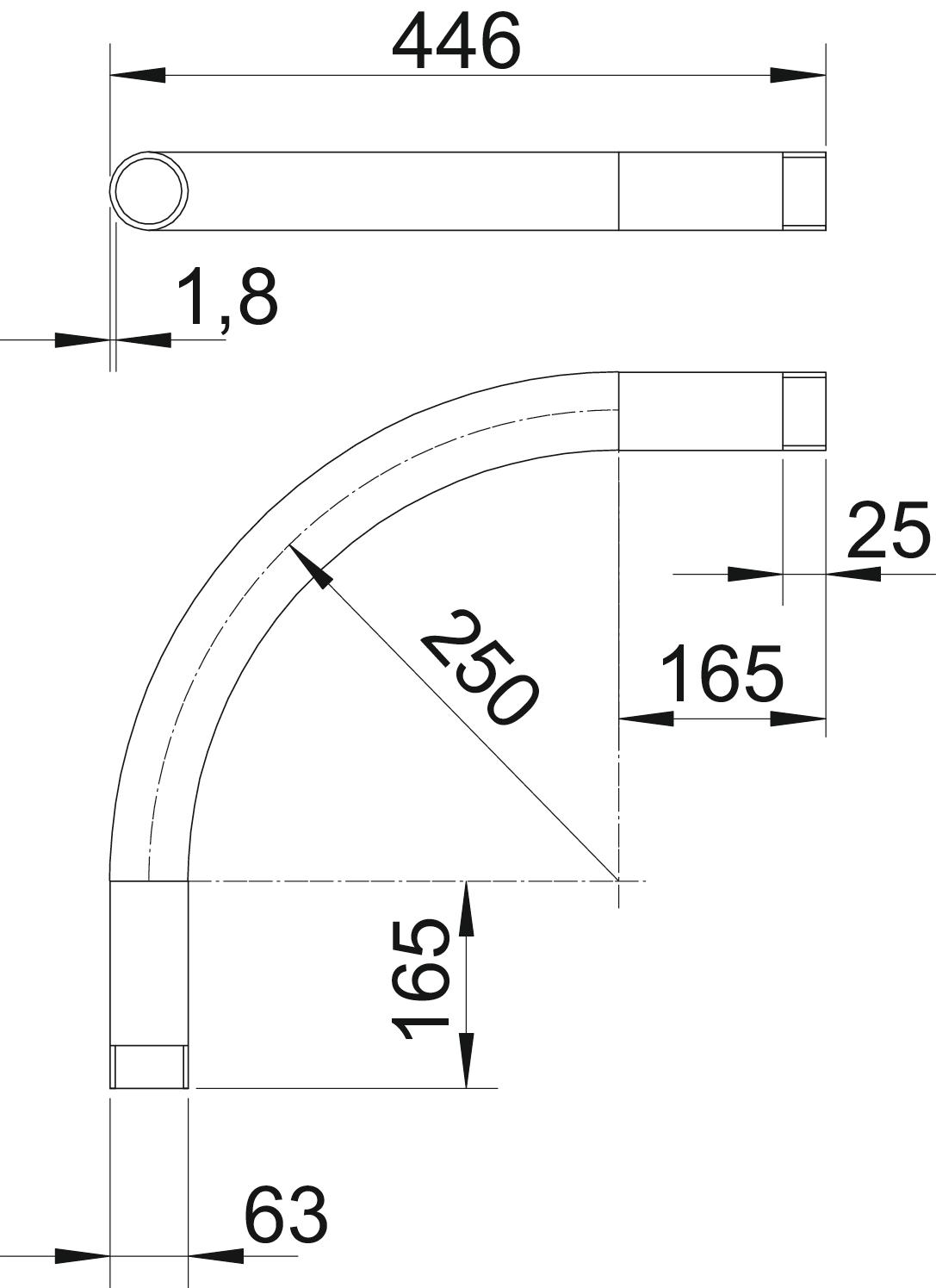

Dimension A	165 mm
Dimension B	446 mm
Dimension D	63 mm
Dimension l	25 mm
Dimension m (mm)	M63
Dimension R	250 mm
Dimension t	1,8 mm
Flexible	no

For nominal pipe diameter	63 mm
Halogen-free	no
Material	Steel
Polished surface	no
Surface	Hot-dip galvanised
Thread	M63x1,5
Two-part	no
Version for	Thread
With inspection opening and lid	no
With sleeve	yes

All types

All types

Types	Thread	Item no.	Quantity	SSU
SBNM16 FT	M16x1,5	2046786	piece	15 piece
SBNM20 FT	M20x1,5	2046787	piece	25 piece
SBNM25 FT	M25x1,5	2046788	piece	25 piece
SBNM32 FT	M32x1,5	2046789	piece	20 piece
SBNM40 FT	M40x1,5	2046790	piece	15 piece
SBNM50 FT	M50x1,5	2046791	piece	5 piece
SBNM63 FT	M63x1,5	2046792	piece	3 piece
