- Product description
-
Product description

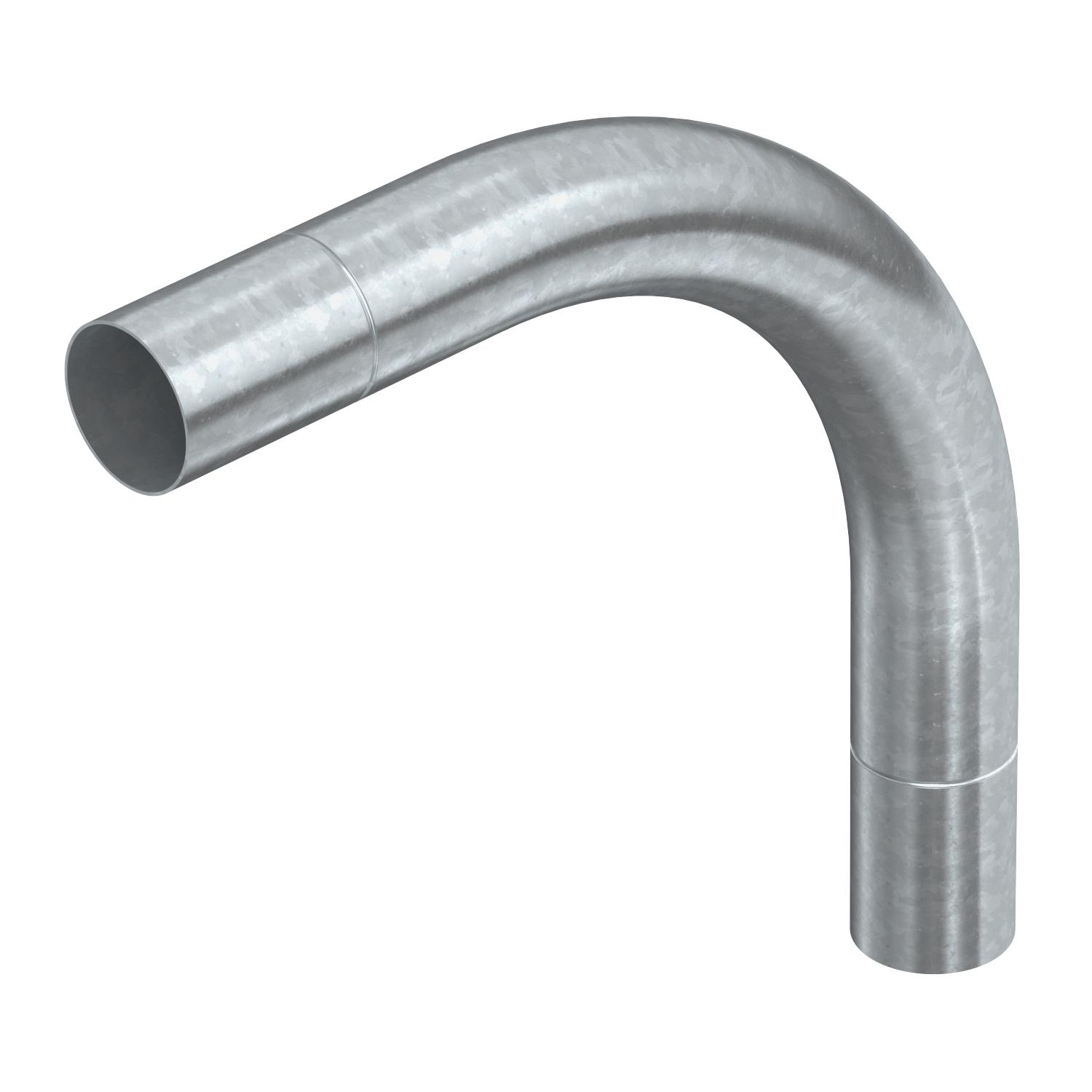

90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
- Technical data
-
Technical data

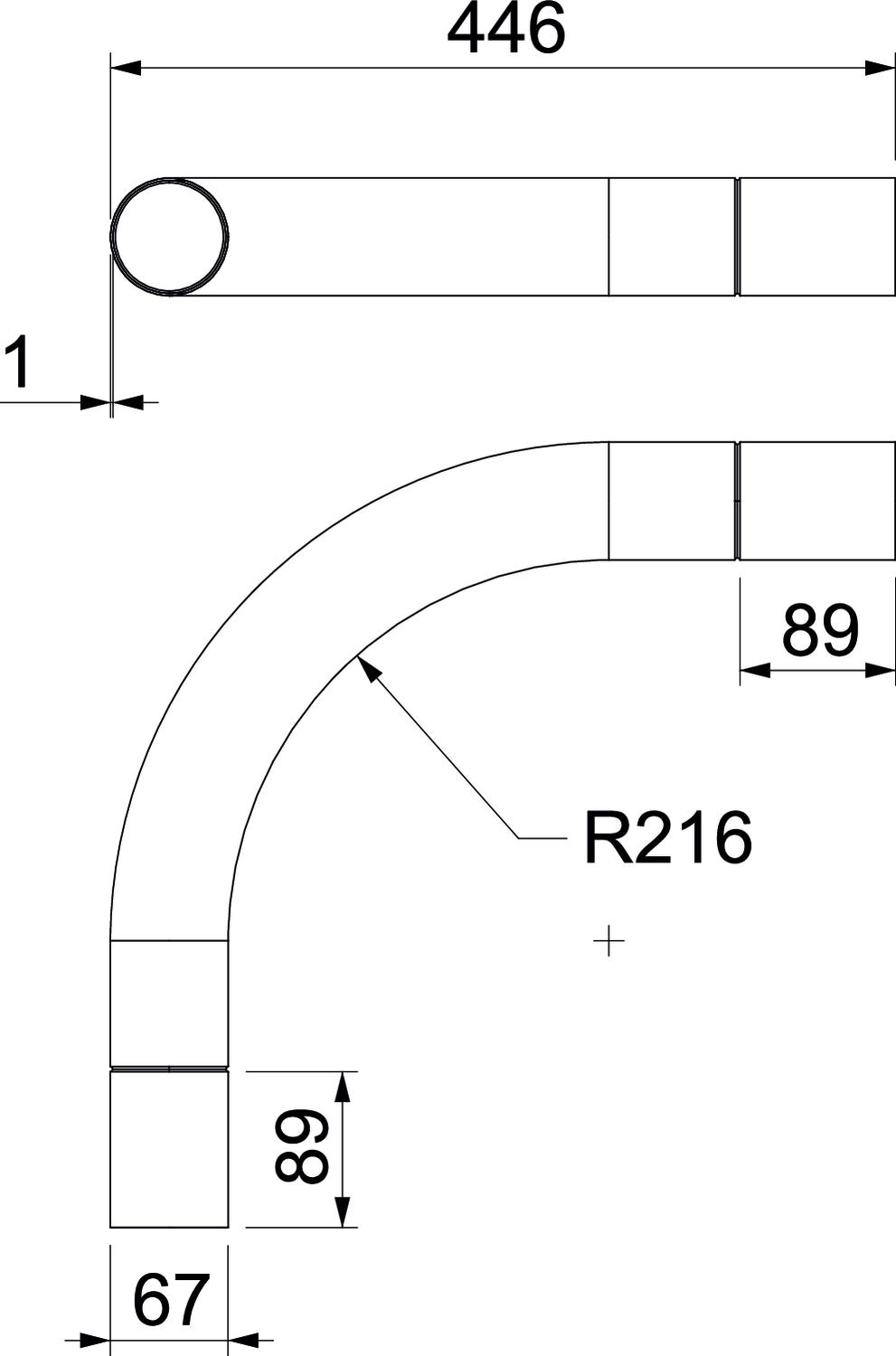

Angle of the bend 90 ° Brushed surface no Dimension Ø63mm Dimension A 163 mm Dimension B 446 mm Dimension d 64 mm Dimension D 67 mm Dimension l 90 mm Dimension m (mm) M63 Dimension R 250 mm Dimension t 1,5 mm Flexible no For nominal pipe diameter 63 mm Halogen-free no Material Steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Surface Hot-dip galvanised Two-part no Version for Connector With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBN63 FT / 2046822 , 0.24MB , pdfDeclaration of conformity SBN63 FT / 2046822 , 0.15MB , pdfUK Declaration of Conformity SBN63 FT / 2046822 , 0.14MB , pdfREACH Declaration of conformity SBN63 FT / 2046822 , 0.12MB , pdfRoHS Declaration of conformity SBN63 FT / 2046822 , 0.12MB , pdf
