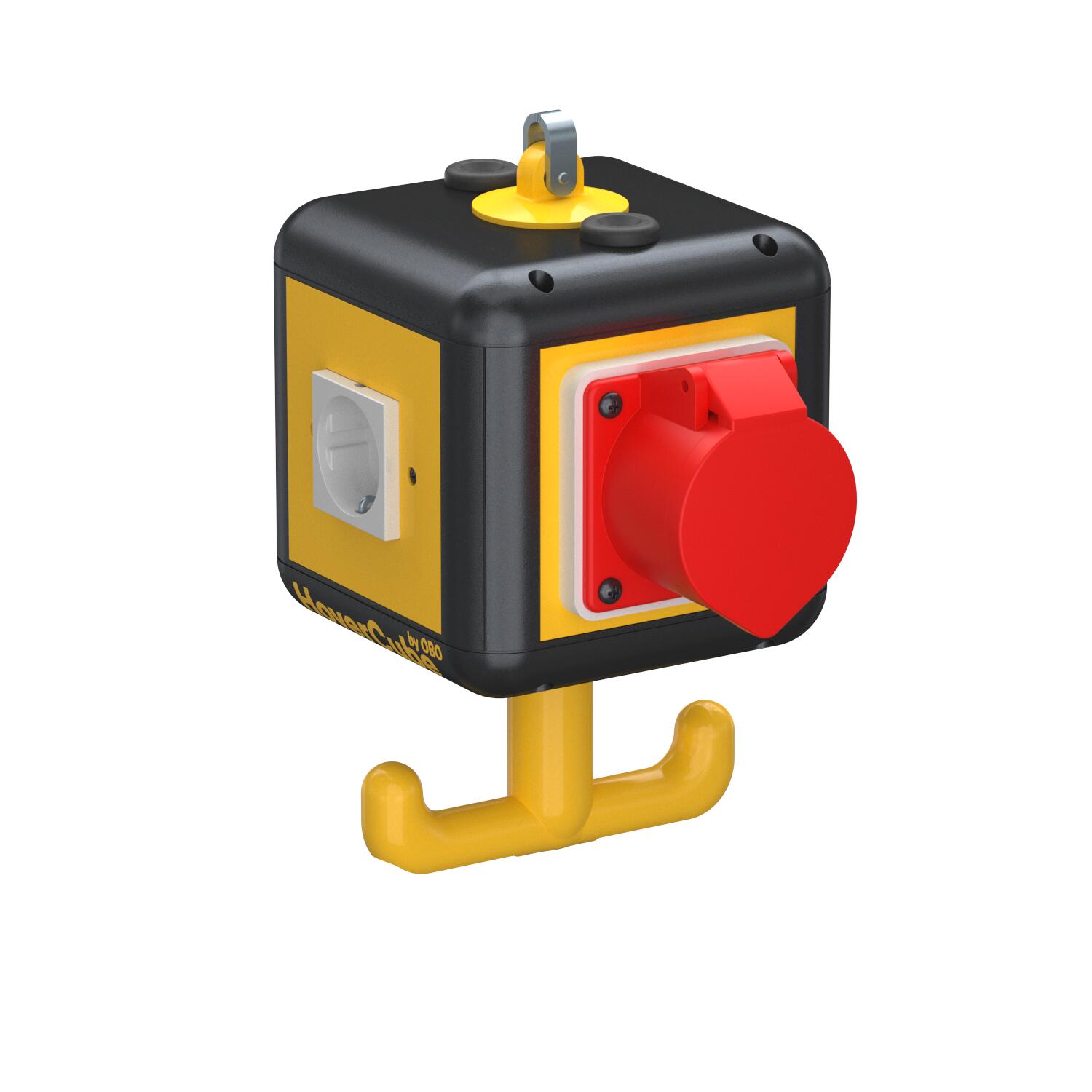

HoverCube VH-4, 3x protective contact socket, 1x CEE 16 A

Item no. 6109804 | EAN 4012195125075

6109804 / VH-4 3SD1C16
3
1
Without
Graphite black; RAL 9011
Product description
Product description

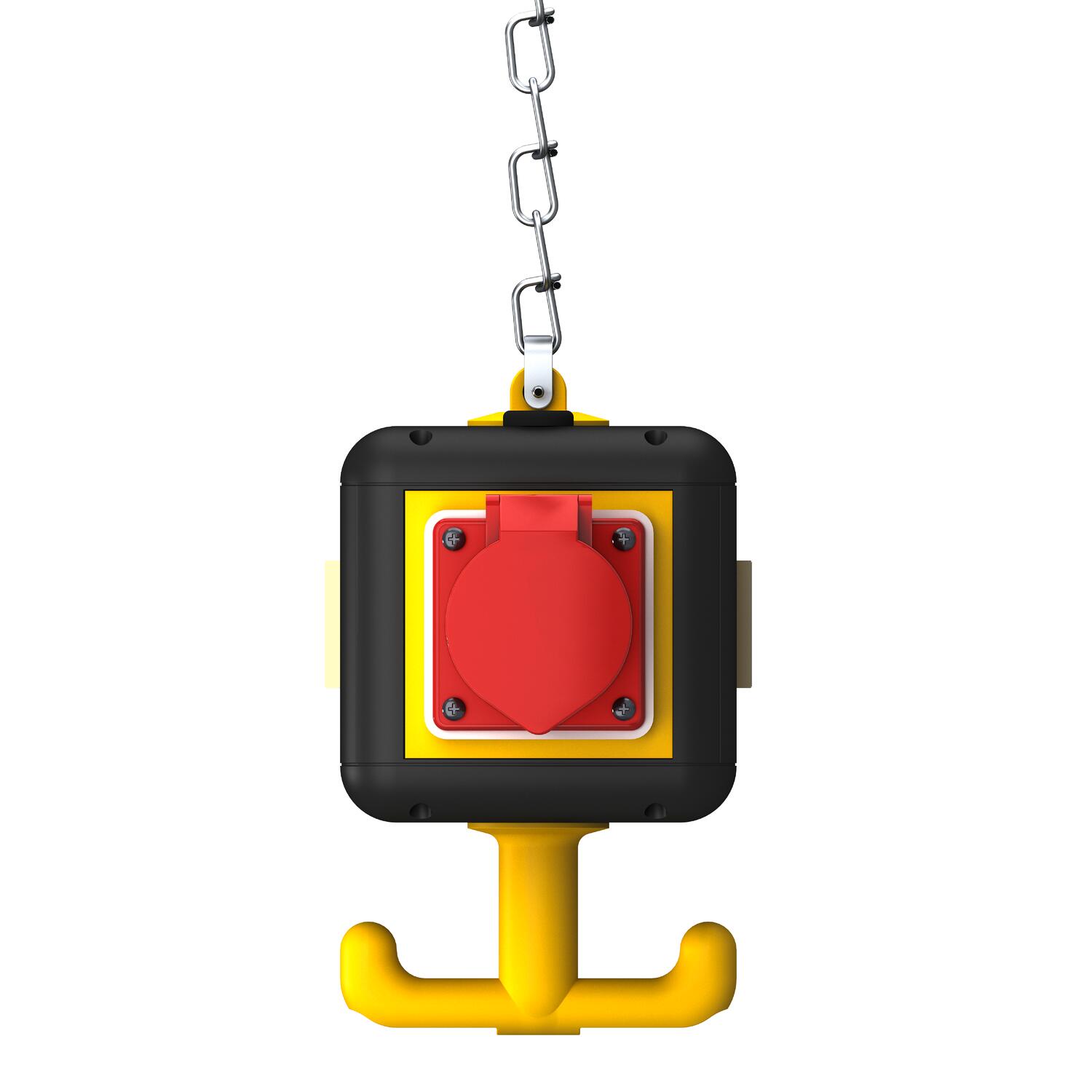

Housing equipped and prewired with suspension lug, grip hook and four cover plates.


Equipped as follows:
3 x single protective contact sockets 16 A/250 V with increased touch protection, prewired for an AC current, connection via 1 x 3-pole terminal, 1 x CEE socket 16 A/415 V, with partition for circuit separation.


- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
Technical data

Technical data

CEE socket, 125 A Without
CEE socket, 16 A 1x16A5p400V
CEE socket, 32 A Without
CEE socket, 63 A Without
Colour Graphite black; RAL 9011

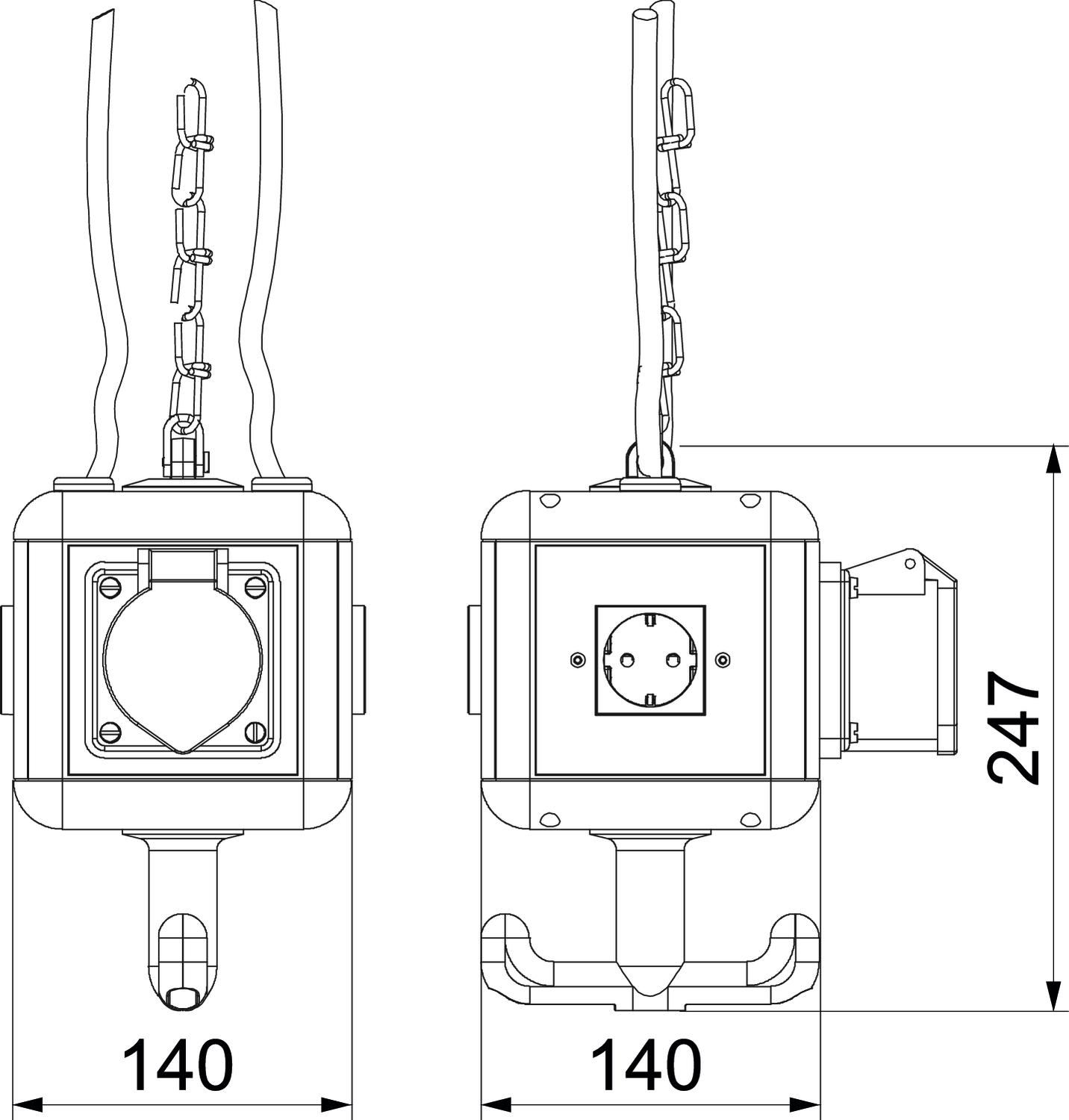

Depth 196 mm
Dimension 140x140x252
FI protection switch Without
Handling abhängbar
Height 247 mm
Material Polyamide
Military version no
Number of CEE sockets 1
Number of SCHUKO sockets 3
Protection rating IP20
Supply/connection option Miscellaneous
Width 140 mm
All types

All types

Types Number of SCHUKO sockets Number of CEE sockets FI protection switch Colour Item no. Quantity SSU
VH-4 3SD1C16 3 1 Without Graphite black; RAL 9011 6109804
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Knotted chain Knotted chain VH-K800 6109870
1 m
Positioner for power supply units VH Positioner for power supply units VH VH-POS 6109887
1 piece
VH/VHF tension spring VH/VHF tension spring VH-F100VA 6109829
40 piece
