HoverCube VH-4, 4x earthing pin socket, with compressed air connection | | | Without | Graphite black; RAL 9011

HoverCube VH-4, 4x earthing pin socket, with compressed air connection

Item no. 6109816 | EAN 4012195125150

Item no. / Types	6109816 / VH-4L 4SF

FI protection switch	Without

Colour	Graphite black; RAL 9011

Product description

Product description

Housing equipped and pre-wired, with 1 m pipe 1/2" and connection for compressed air hose 13 x 3.5 mm and 2-way distributor 1/2", with suspension lug, grip hook and four cover plates.

Equipped as follows: 4x single sockets with earthing pin 16 A/250 V with increased touch protection, pre-wired for two AC currents, connection via 2x 3-pin terminals, 1x CEE socket

16 A/415 V, with partition for circuit separation.

- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.

Technical data

Technical data

CEE socket, 125 A	Without
CEE socket, 16 A	Without
CEE socket, 32 A	Without
CEE socket, 63 A	Without
Colour	Graphite black; RAL 9011
Depth	140 mm

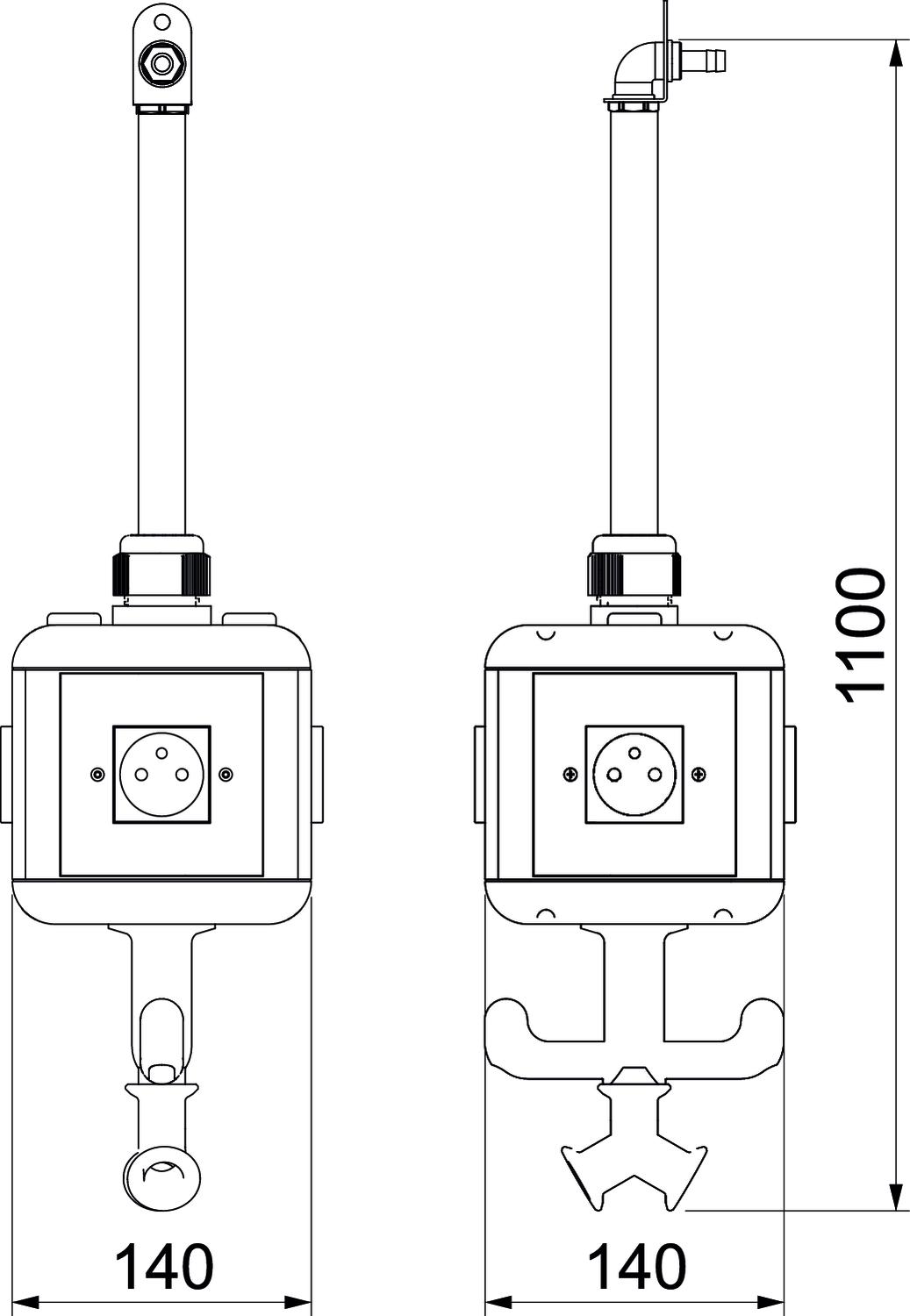

Dimension	140x140x1100
FI protection switch	Without

Handling	abhängbar
Height	1100 mm
Material	Polyamide
Military version	no
Other installations and/or empty slots	5
Protection rating	IP20
Supply/connection option	Miscellaneous
Width	140 mm
