- Product description
-

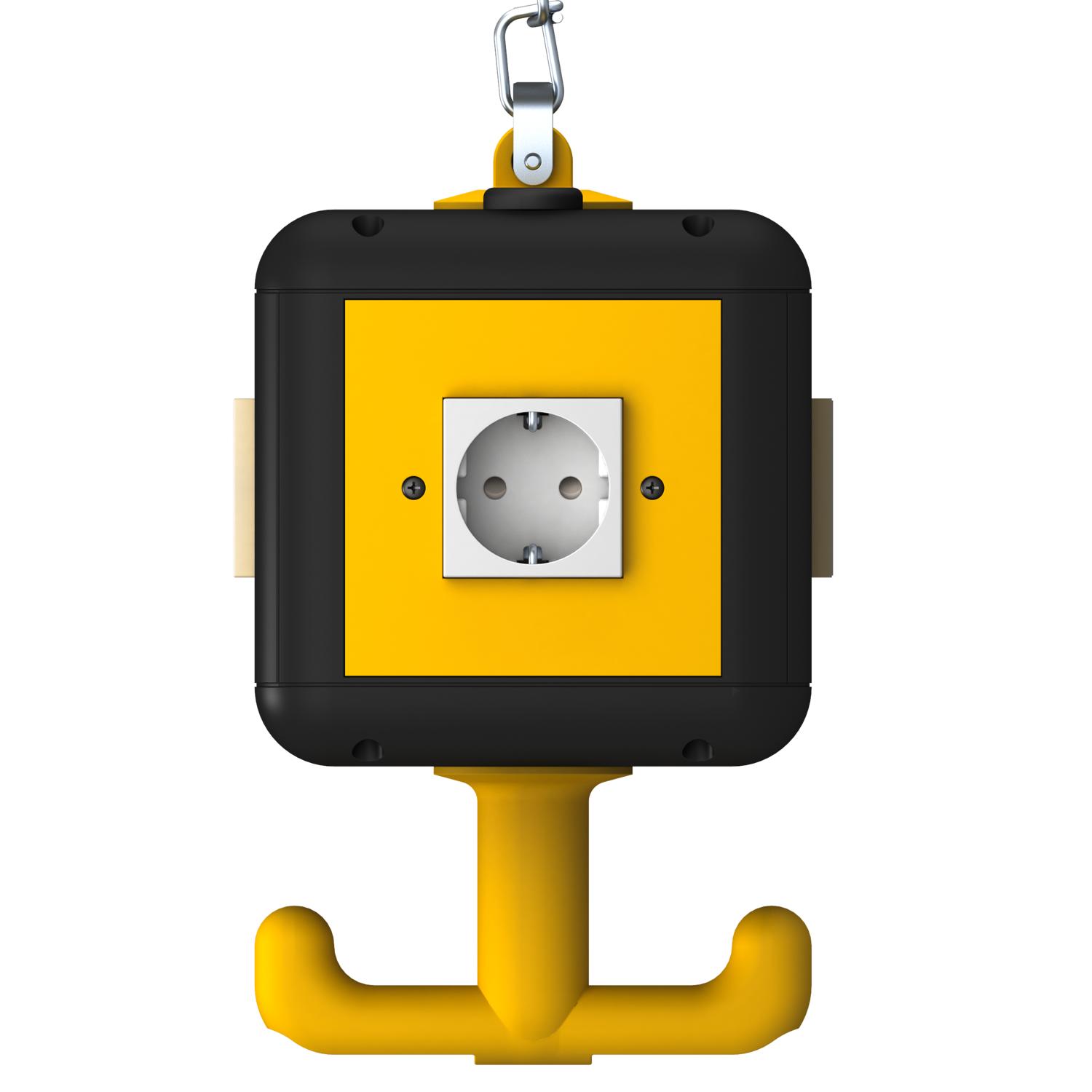

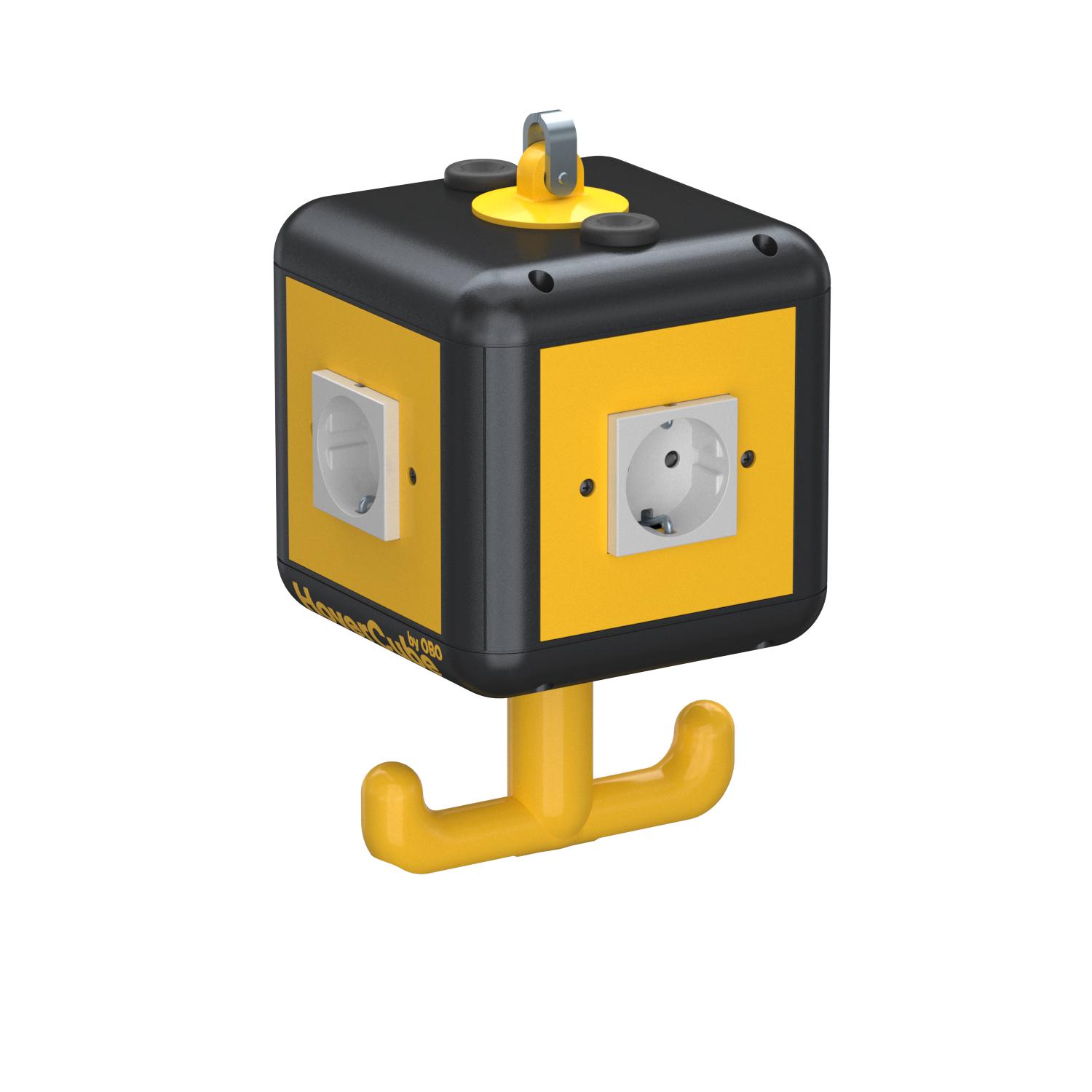

Product descriptionHousing equipped and prewired with suspension lug, grip hook and four cover plates.
Equipped as follows: 4x single protective contact sockets 16 A/250 V with increased touch protection, prewired for two AC currents, connection via 2x 3-pin terminals, 1x CEE socket 16 A/415 V, with partition for circuit separation.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.
- Technical data
-
Technical data

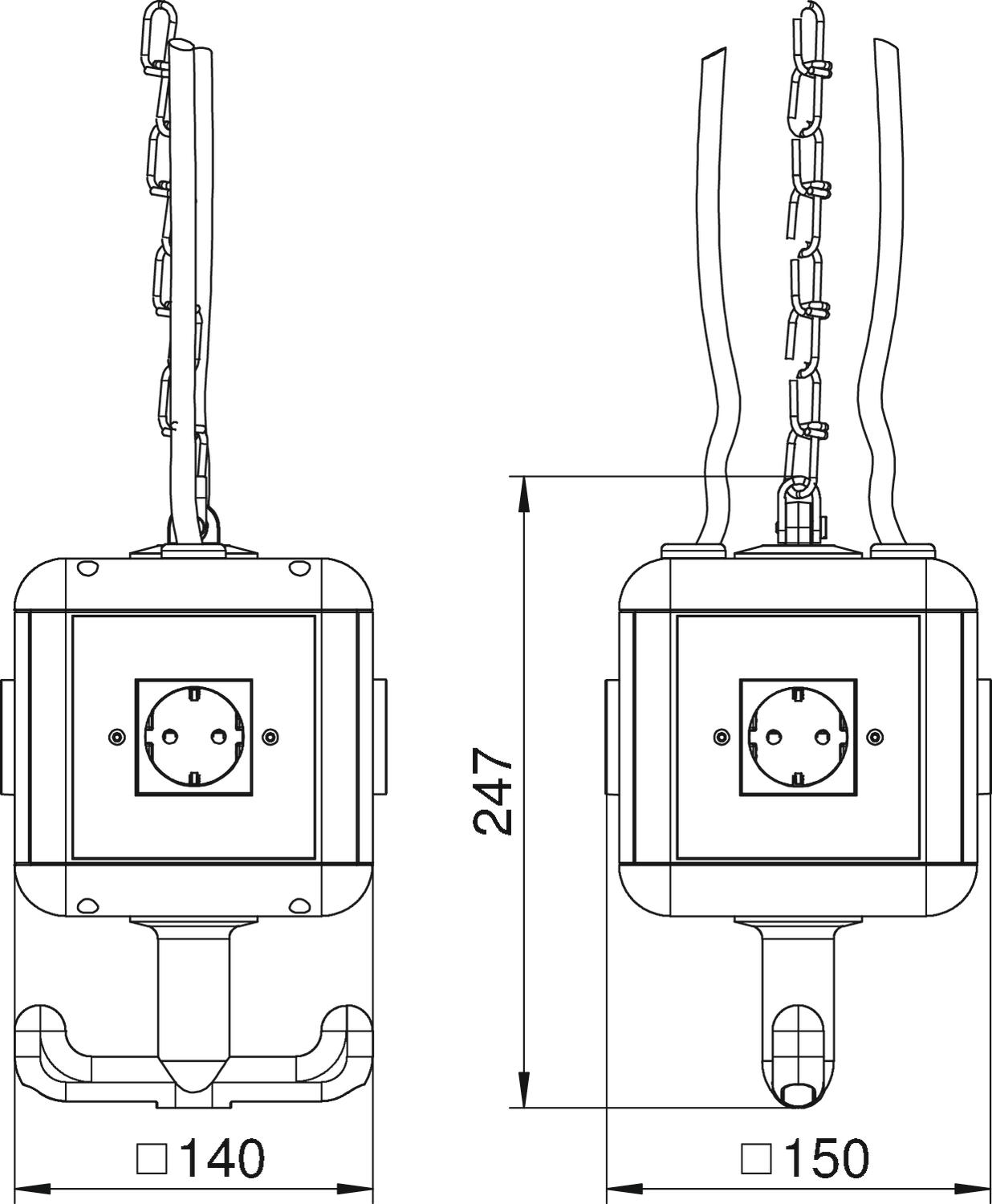

CEE socket, 125 A Without CEE socket, 16 A Without CEE socket, 32 A Without CEE socket, 63 A Without Colour Graphite black; RAL 9011 CO₂ Footprint (GWP) Cradle-to-Gate 3,827 kg CO₂e / 1 Piece Depth 150 mm Dimension 140x140x252 FI protection switch Without Handling abhängbar Height 247 mm Material Polyamide Military version no Number of SCHUKO sockets 4 Protection Without Protection rating IP20 Supply/connection option Miscellaneous Width 140 mm - All types
- Downloads
-
Data sheet VH-4 4SD / 6109802 , 0.21MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity VH-4 4SD / 6109802 , 0.11MB , pdfMounting instructions Mounting instructions, HoverCube (pre-terminated) , 3.74MB , pdfMounting instructions Mounting instructions, VH-4/..; VH-4L/.. , 0.06MB , pdf
