HoverCube VH-4, 4x protective contact socket, with compressed air connection 4 | | | Without | Graphite black; RAL 9011

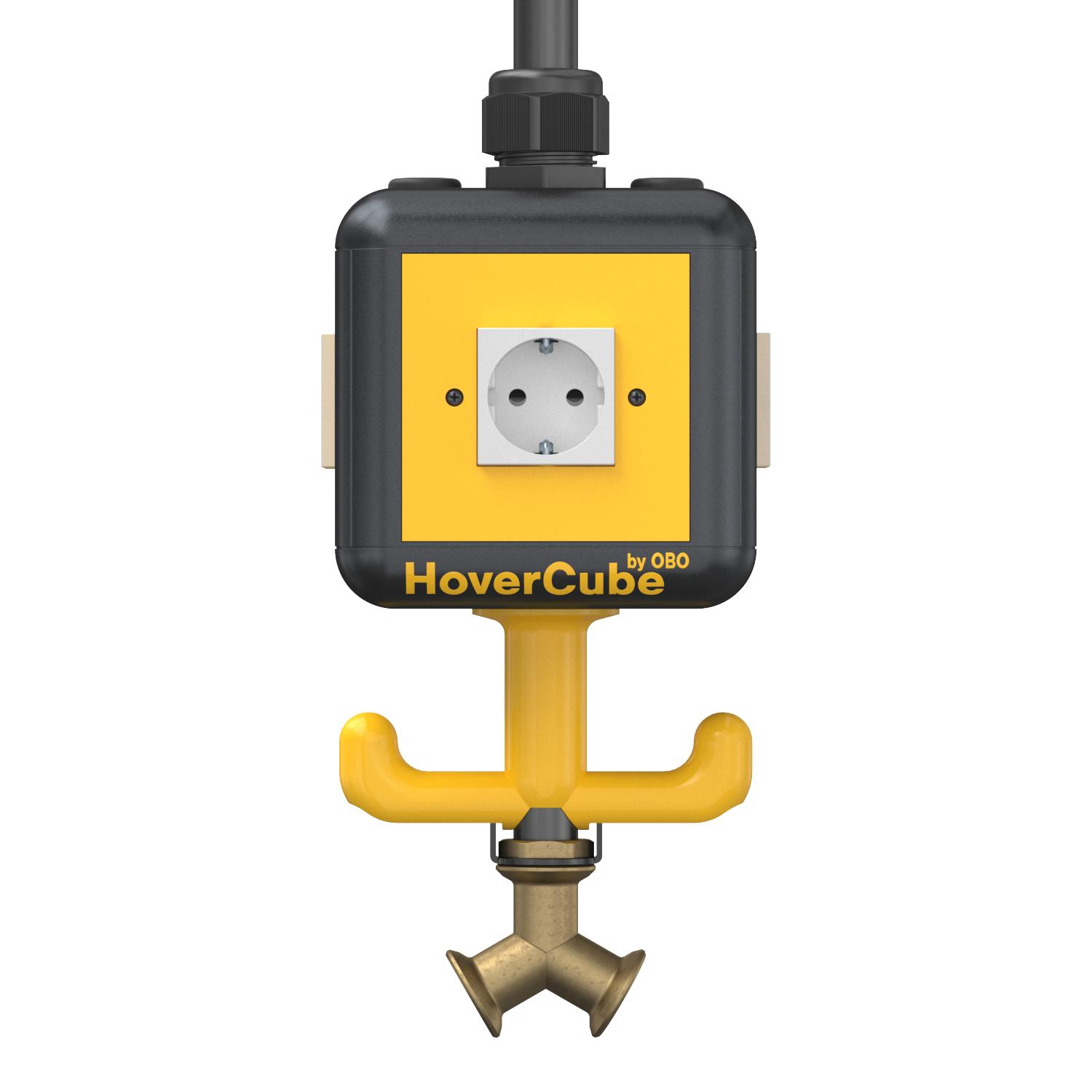

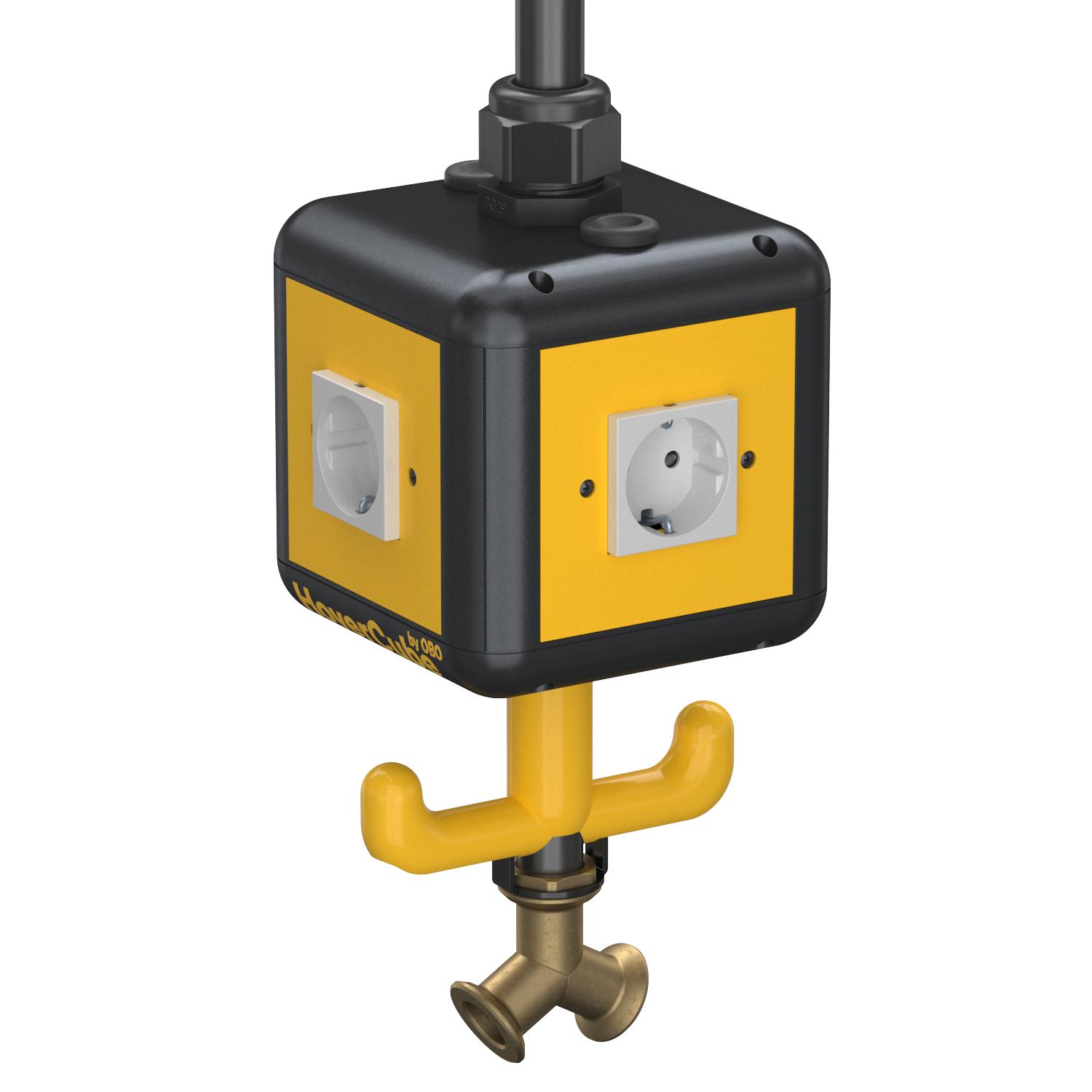

HoverCube VH-4, 4x protective contact socket, with compressed air connection

Item no. 6109812 | EAN 4012195125136

Item no. / Types	6109812 / VH-4L 4SD

Number of SCHUKO sockets	4

FI protection switch	Without

Colour	Graphite black; RAL 9011

Product description

Product description

Housing equipped and prewired, with 1 m pipe 1/2" and connection for compressed air hose 13 x 3.5 mm and 2-way distributor 1/2", with suspension lug, grip hook and four cover plates.

Equipped as follows: 4 x single protective contact sockets 16 A/250 V with increased touch protection, prewired for two AC currents, connection via 2 x 3-pin terminals, 1 x CEE socket 16 A/415 V, with partition for circuit separation.

- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.

Technical data

Technical data

CEE socket, 125 A	Without
CEE socket, 16 A	Without
CEE socket, 32 A	Without
CEE socket, 63 A	Without
Colour	Graphite black; RAL 9011
Depth	150 mm

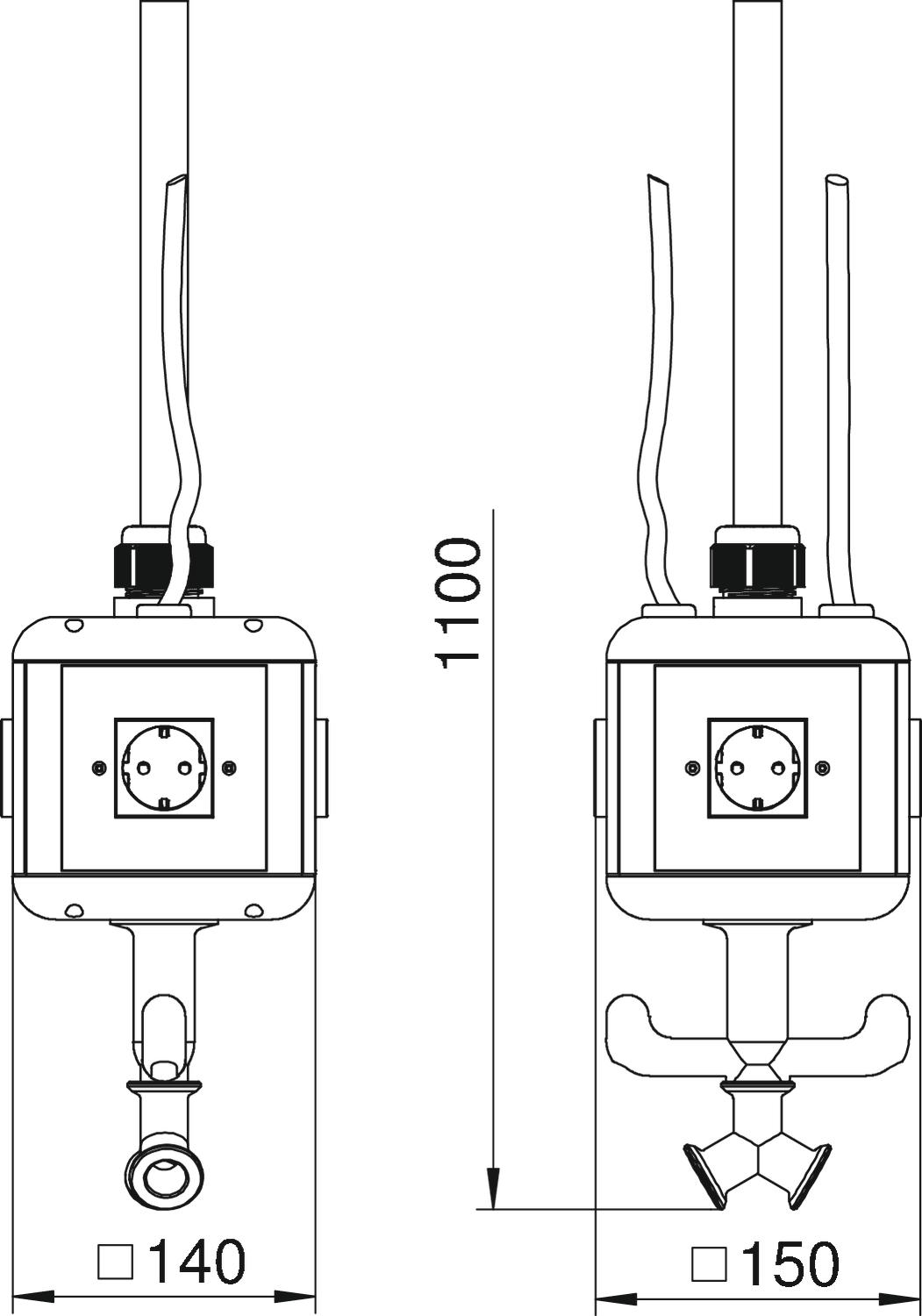

Dimension	140x140x1100
FI protection switch	Without

Handling	abhängbar
Height	1100 mm
Material	Polyamide
Military version	no
Number of SCHUKO sockets	4
Protection rating	IP20
Supply/connection option	Miscellaneous
Width	140 mm
