HoverCube VH-4, empty housing | | | Without | Pure white; RAL 9010
morepic-1 morepic-2

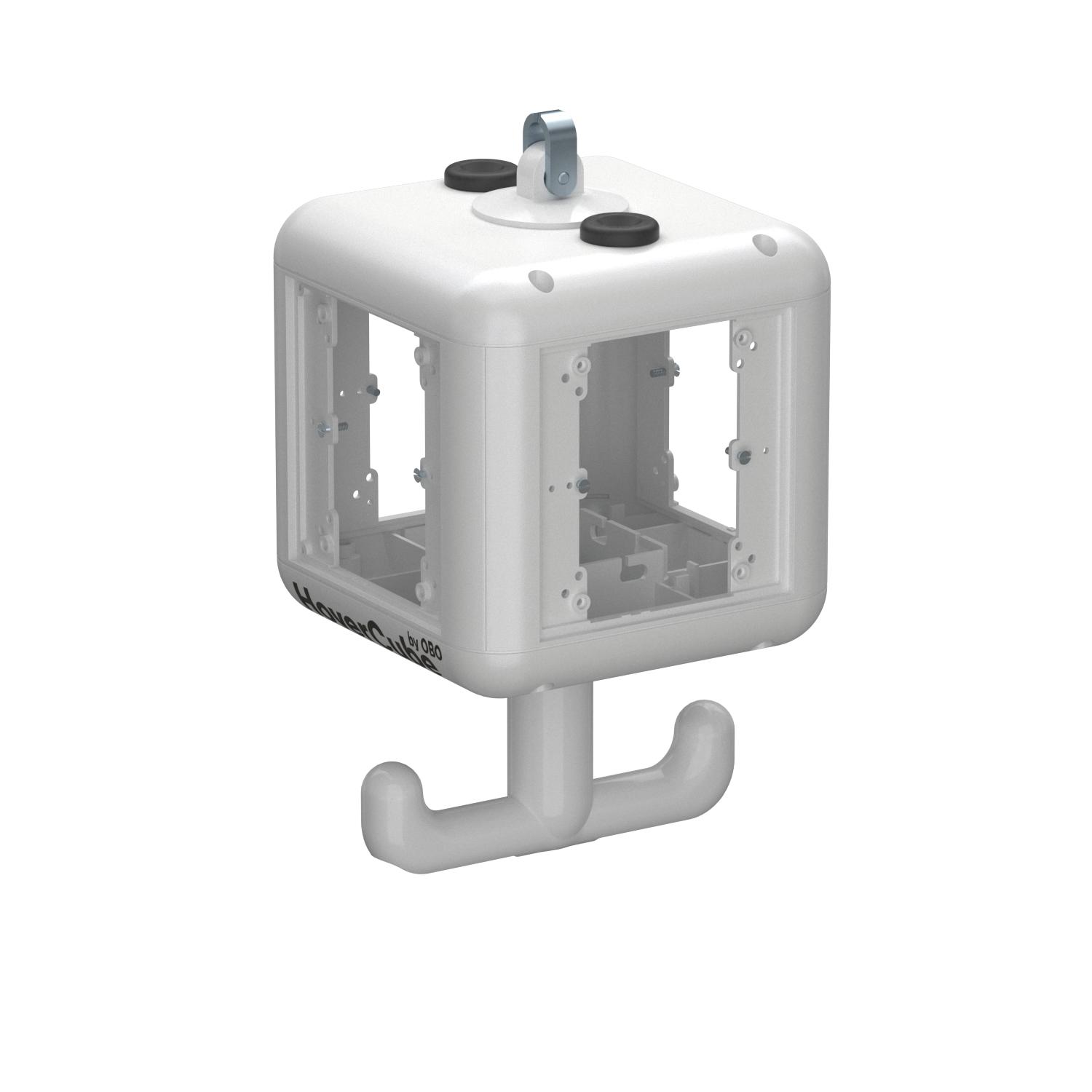

HoverCube VH-4, empty housing

Item no. 6109801 | EAN 4012196101511

6109801 / VH-4 LG RW
Without
Pure white; RAL 9010
Product description

Product description

Empty housing with suspension lug and grip hook, for the installation of four electrical resources, with included partition. Without cover plates.


  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
Technical data

Technical data

CEE socket, 125 A Without
CEE socket, 16 A Without
CEE socket, 32 A Without
CEE socket, 63 A Without
Colour Pure white; RAL 9010
Depth 140 mm
Dimension 140x140x252
FI protection switch Without
Handling abhängbar
Material Polyamide
Military version no
Protection Without
Protection rating IP20
Supply/connection option 2 Leitungen (Ringleitung/zum Durchschleifen)
Type of mains connection Other

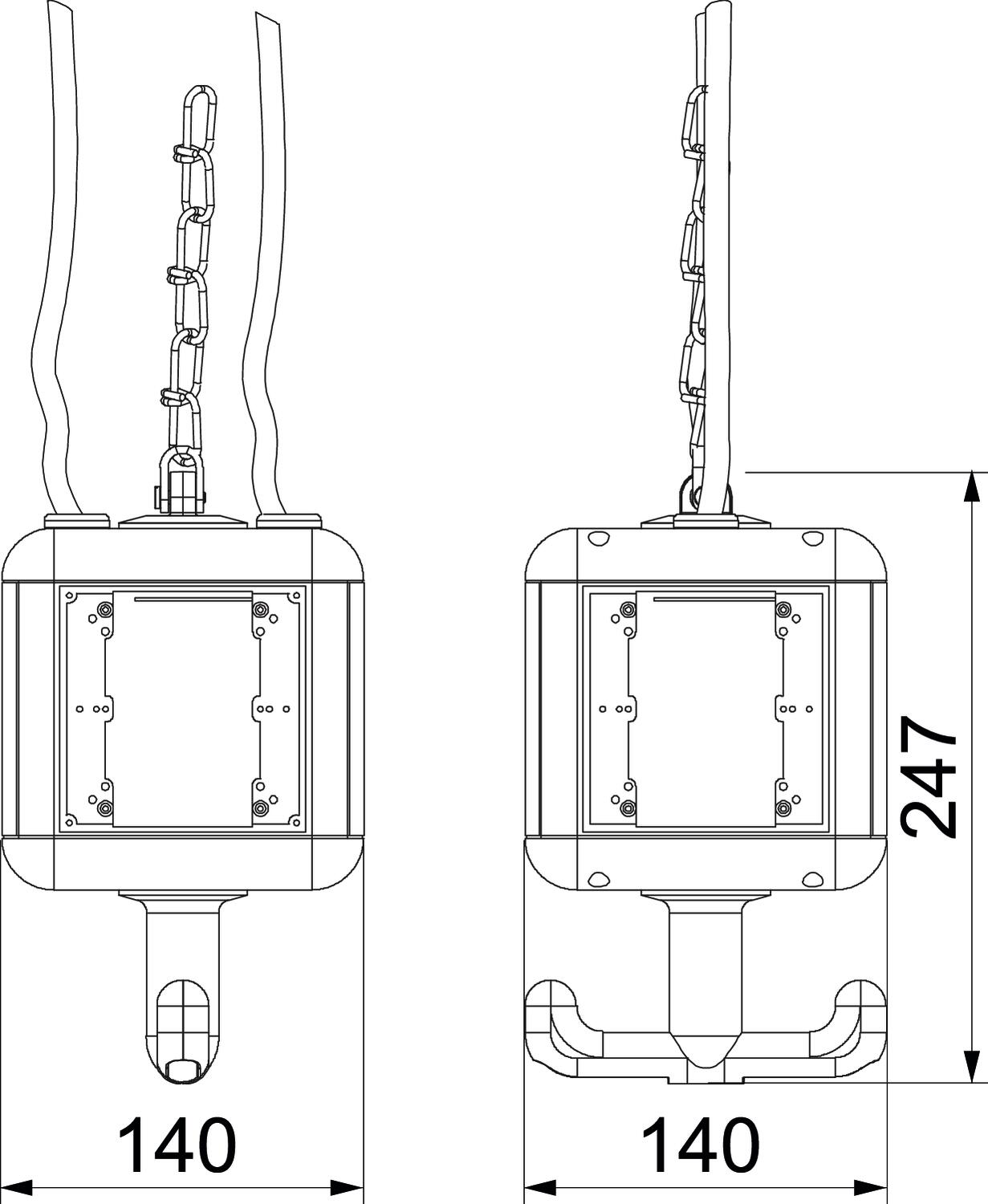

Dimensions

Height 237 mm
Width 140 mm
All types

All types

Types FI protection switch Colour Item no. Quantity SSU
VH-4 LG RW Without Pure white; RAL 9010 6109801
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Knotted chain Knotted chain VH-K800 6109870
1 m
Positioner for power supply units VH Positioner for power supply units VH VH-POS 6109887
1 piece
VH/VHF tension spring VH/VHF tension spring VH-F100VA 6109829
1 piece
