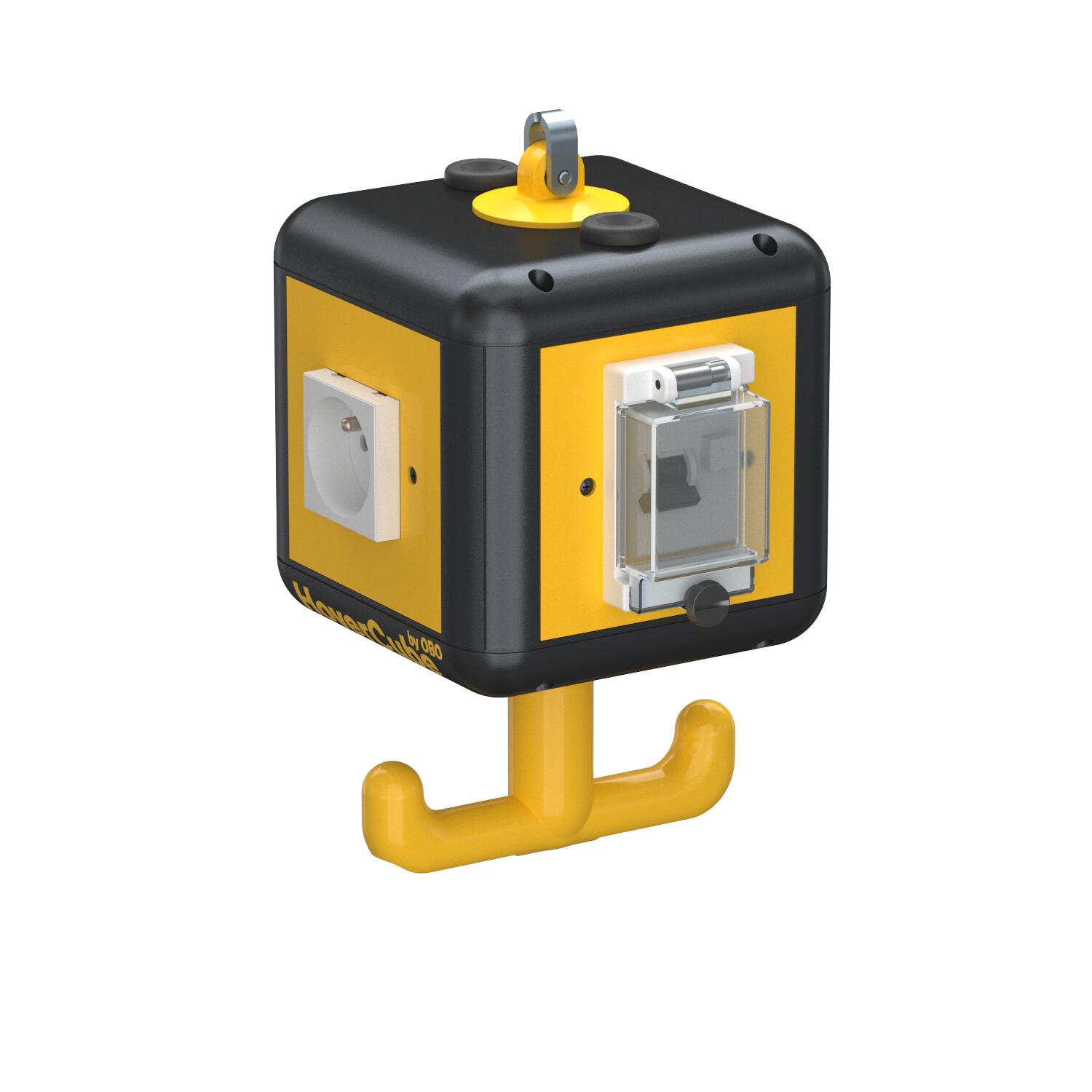

HoverCube VH-4, with FI/LS, 2x protective contact sockets

Item no. 6109782 | EAN 4012196776221

FI mit IFN 0,03 A (Standard)
Graphite black; RAL 9011
Product description

Product description

In the case of an overcurrent/error current (16 A/30 mA), the VH-4 HoverCube with decentralised protection triggers the FI/LS directly. Switching back on can take place directly on the power supply unit.


Equipped as follows:

2x single sockets with earthing pin 16 A/250 V with increased touch protection, prewired for an AC current, connection via 1x 3-pin terminal, with partition for circuit separation and an FI/LS switch.

One unequipped side with a free panel for individual, construction-side equipment (e.g. blanking plate, cover plate for devices/Modul 45 devices).
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • RoHS-conformant
  • Installation electrotechnical expertise
Technical data

Technical data

CEE socket, 125 A Without
CEE socket, 16 A Without
CEE socket, 32 A Without
CEE socket, 63 A Without
Colour Graphite black; RAL 9011

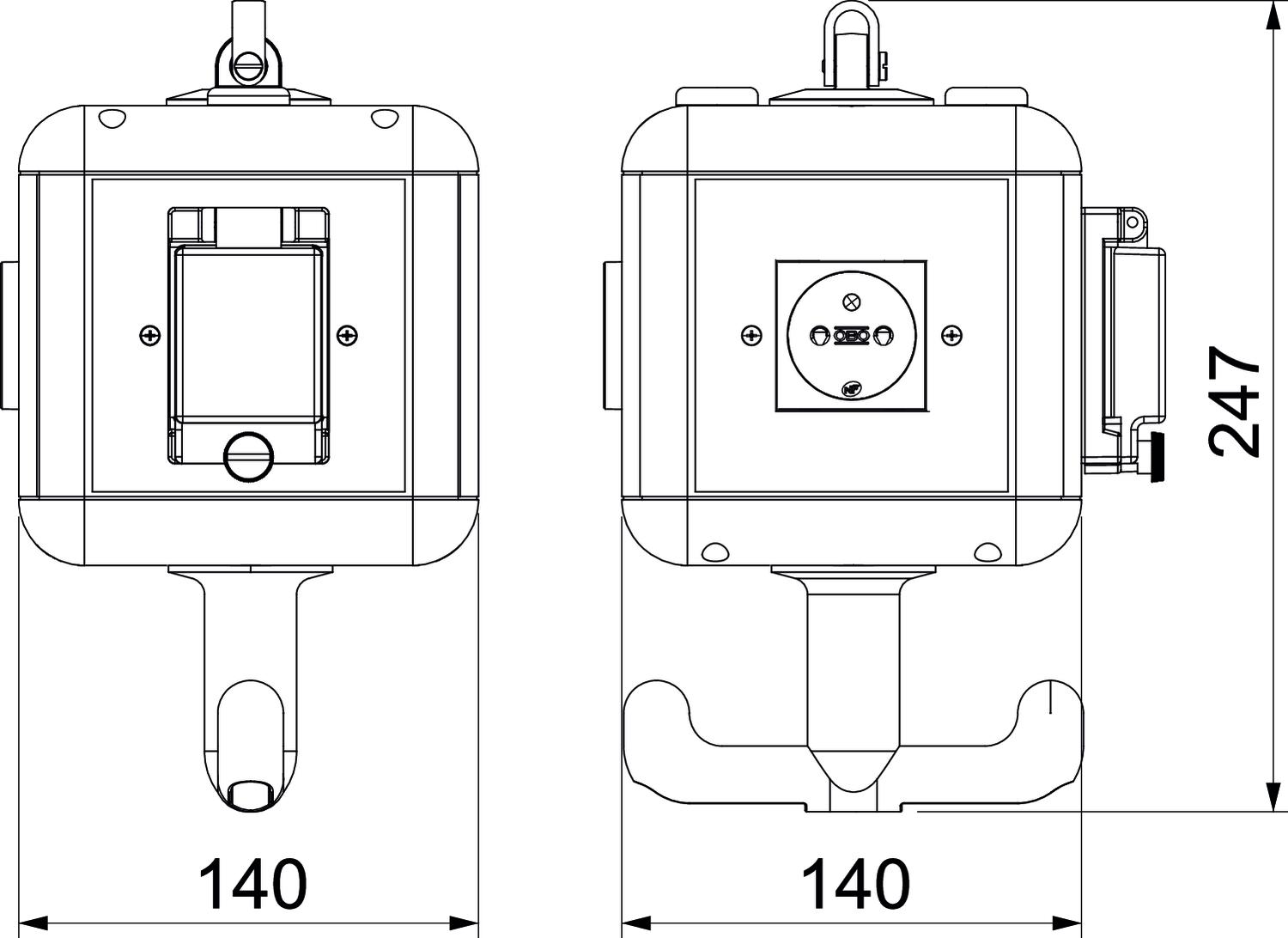

Depth 175 mm
FI protection switch FI mit IFN 0,03 A (Standard)
Handling abhängbar
Height 247 mm
Material Polyamide
Military version no
Other installations and/or empty slots 1
Protection rating IP20
Supply/connection option Miscellaneous
Width 140 mm
All types

All types

Types Number of SCHUKO sockets FI protection switch Colour Item no. Quantity SSU
VH-4 2SD FILS 2 FI mit IFN 0,03 A (Standard) Graphite black; RAL 9011 6109780
1 piece
VH-4 2SF FILS - FI mit IFN 0,03 A (Standard) Graphite black; RAL 9011 6109782
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Knotted chain Knotted chain VH-K800 6109870
1 m
Positioner for power supply units VH Positioner for power supply units VH VH-POS 6109887
1 piece
VH/VHF tension spring VH/VHF tension spring VH-F100VA 6109829
40 piece
