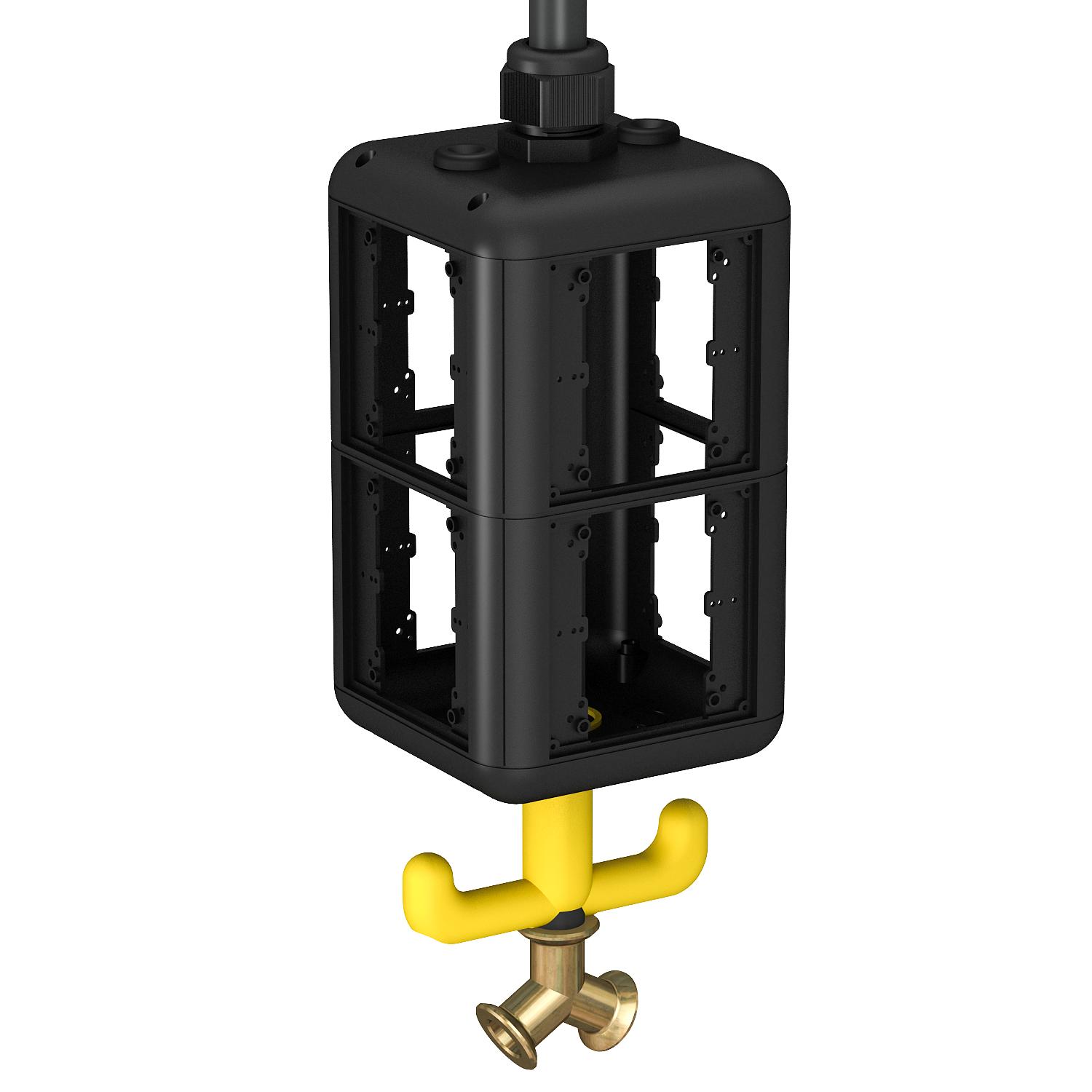

HoverCube VH-8, empty housing, with compressed air connection

Item no. 6109825 | EAN 4012195125211

6109825 / VH-8L LG
Without
Graphite black; RAL 9011
Product description

Product description

Empty housing with 1 m pipe 1/2" and connection for compressed air hose 13 x 3.5 mm and 2-way distributor 1/2". With suspension lug and grip hook, for the installation of electrical resources, with included partition. Without cover plates.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
Technical data

Technical data

CEE socket, 125 A Without
CEE socket, 16 A Without
CEE socket, 32 A Without
CEE socket, 63 A Without
Colour Graphite black; RAL 9011
Depth 140 mm

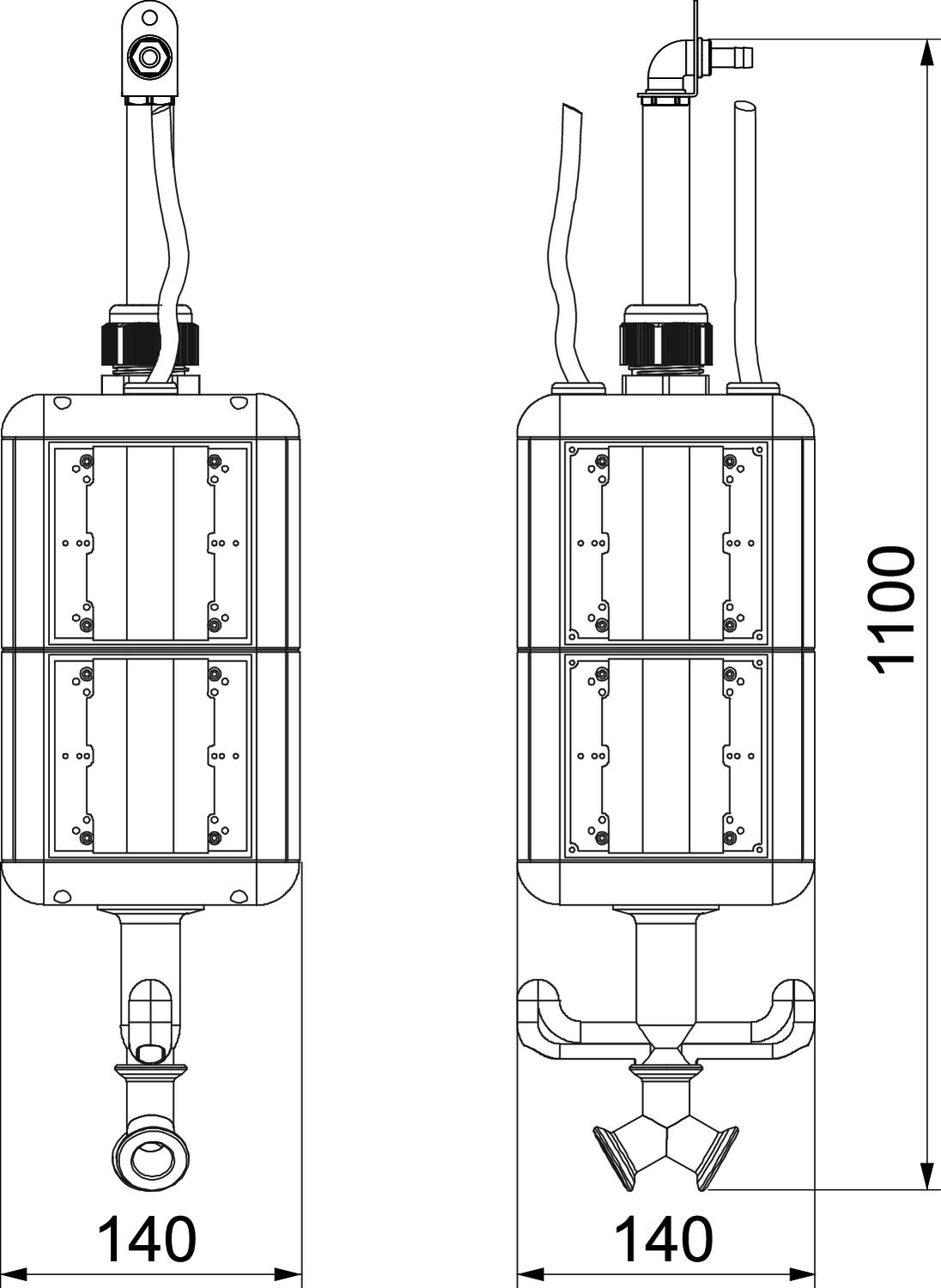

Dimension 140x140x352
FI protection switch Without
Handling abhängbar
Height 1100 mm
Material Polyamide
Military version no
Other installations and/or empty slots 8
Protection rating IP20
Supply/connection option Miscellaneous
Width 140 mm
All types

All types

Types FI protection switch Colour Item no. Quantity SSU
VH-8L LG Without Graphite black; RAL 9011 6109825
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Knotted chain Knotted chain VH-K800 6109870
1 m
Positioner for power supply units VH Positioner for power supply units VH VH-POS 6109887
1 piece
VH/VHF tension spring VH/VHF tension spring VH-F100VA 6109829
40 piece
