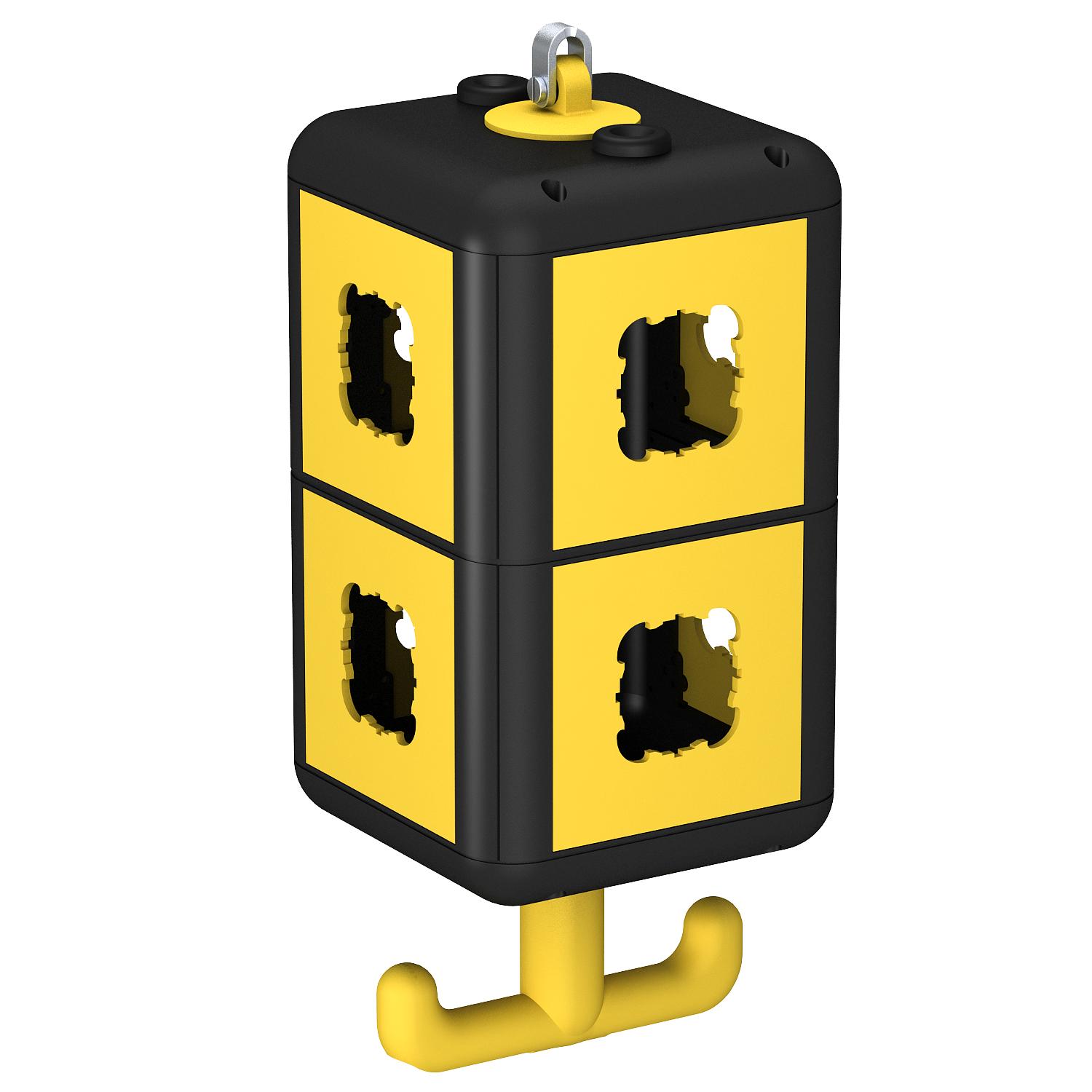

HoverCube VH-8, empty housing, with cover plates

Item no. 6109820 | EAN 4012195125198

6109820 / VH-8 LG8P2
Without
Graphite black; RAL 9011
Product description

Product description

Empty housing with suspension lug and grip hook, for the installation of eight electrical resources, with included partition. With eight cover plates for accessories with concealed support ring or support bracket.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
Technical data

Technical data

CEE socket, 125 A Without
CEE socket, 16 A Without
CEE socket, 32 A Without
CEE socket, 63 A Without
Colour Graphite black; RAL 9011

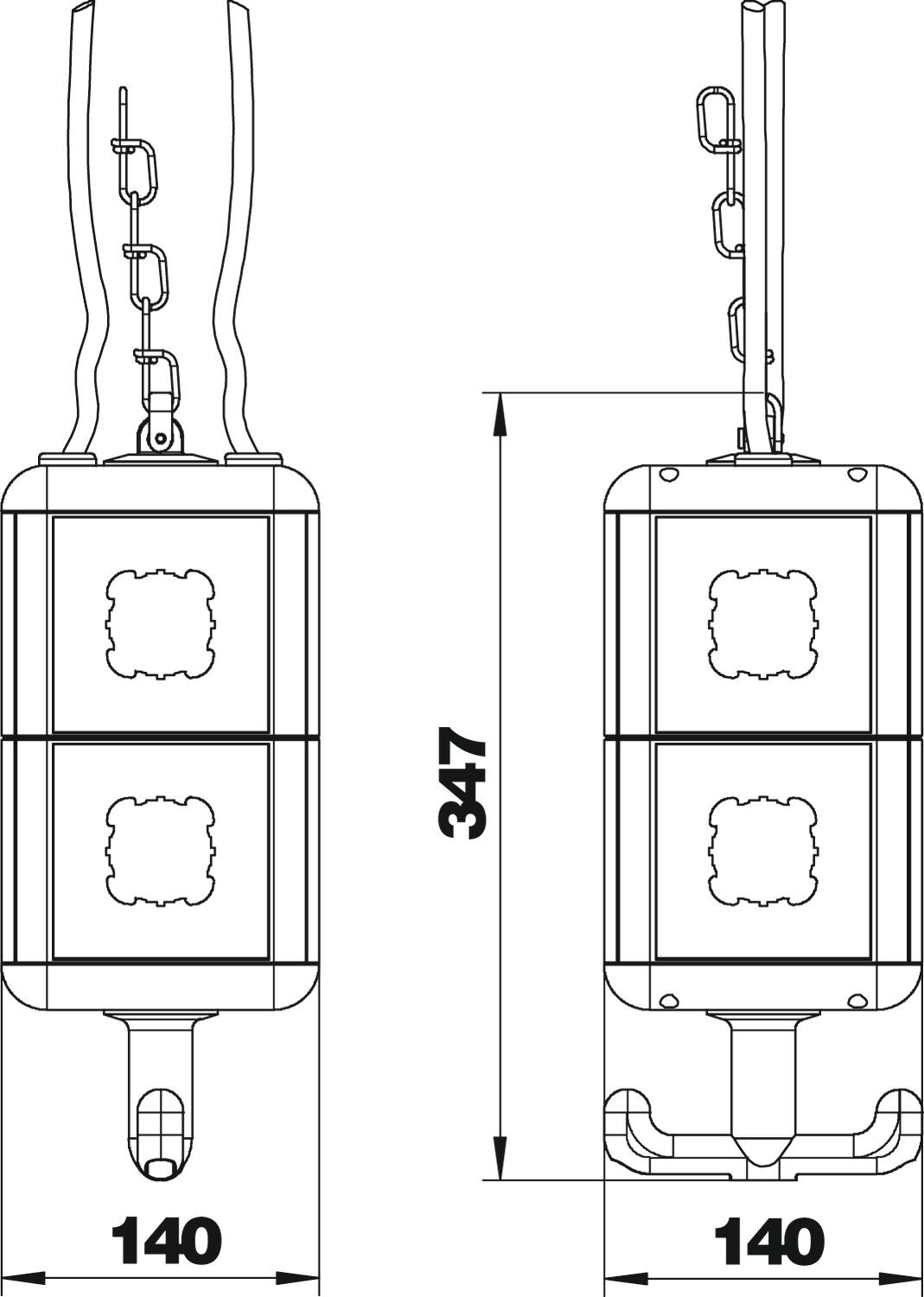

Depth 140 mm
Dimension 140x140x352
FI protection switch Without
Handling abhängbar
Height 347 mm
Material Polyamide
Military version no
Other installations and/or empty slots 8
Protection rating IP20
Supply/connection option Miscellaneous
Width 140 mm
All types

All types

Types FI protection switch Colour Item no. Quantity SSU
VH-8 LG8P2 Without Graphite black; RAL 9011 6109820
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Knotted chain Knotted chain VH-K800 6109870
1 m
Positioner for power supply units VH Positioner for power supply units VH VH-POS 6109887
1 piece
VH/VHF tension spring VH/VHF tension spring VH-F100VA 6109829
40 piece
