- Product description
-
Product description

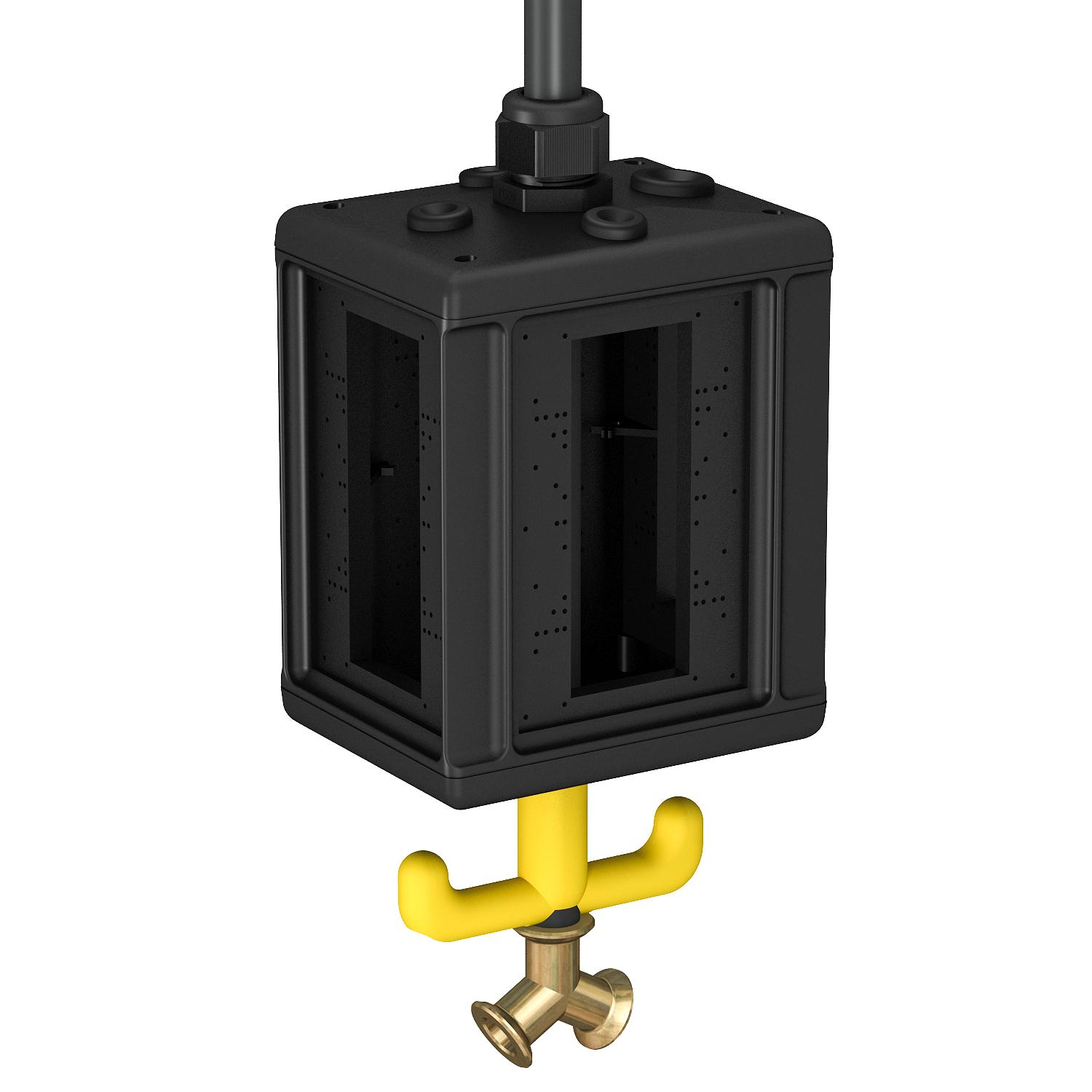

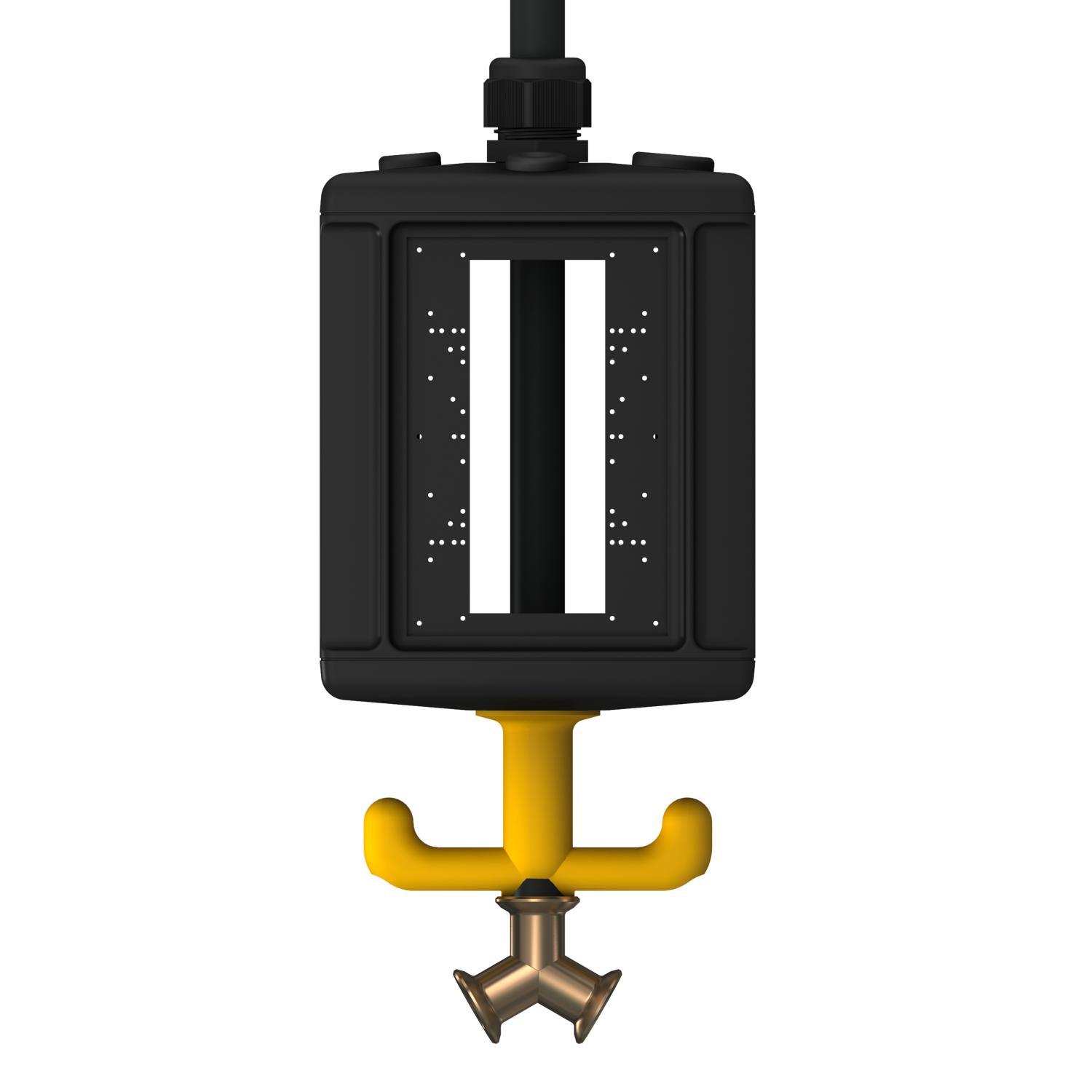

Empty housing with 1 m pipe 1/2" and connection for compressed air hose 13 x 3.5 mm and 2-way distributor 1/2". With suspension lug and grip hook, for the installation of electrical resources, with included partition. Without cover plates to supply workplaces in wet areas. Protection rating: IP44.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.
- Technical data
-
Technical data

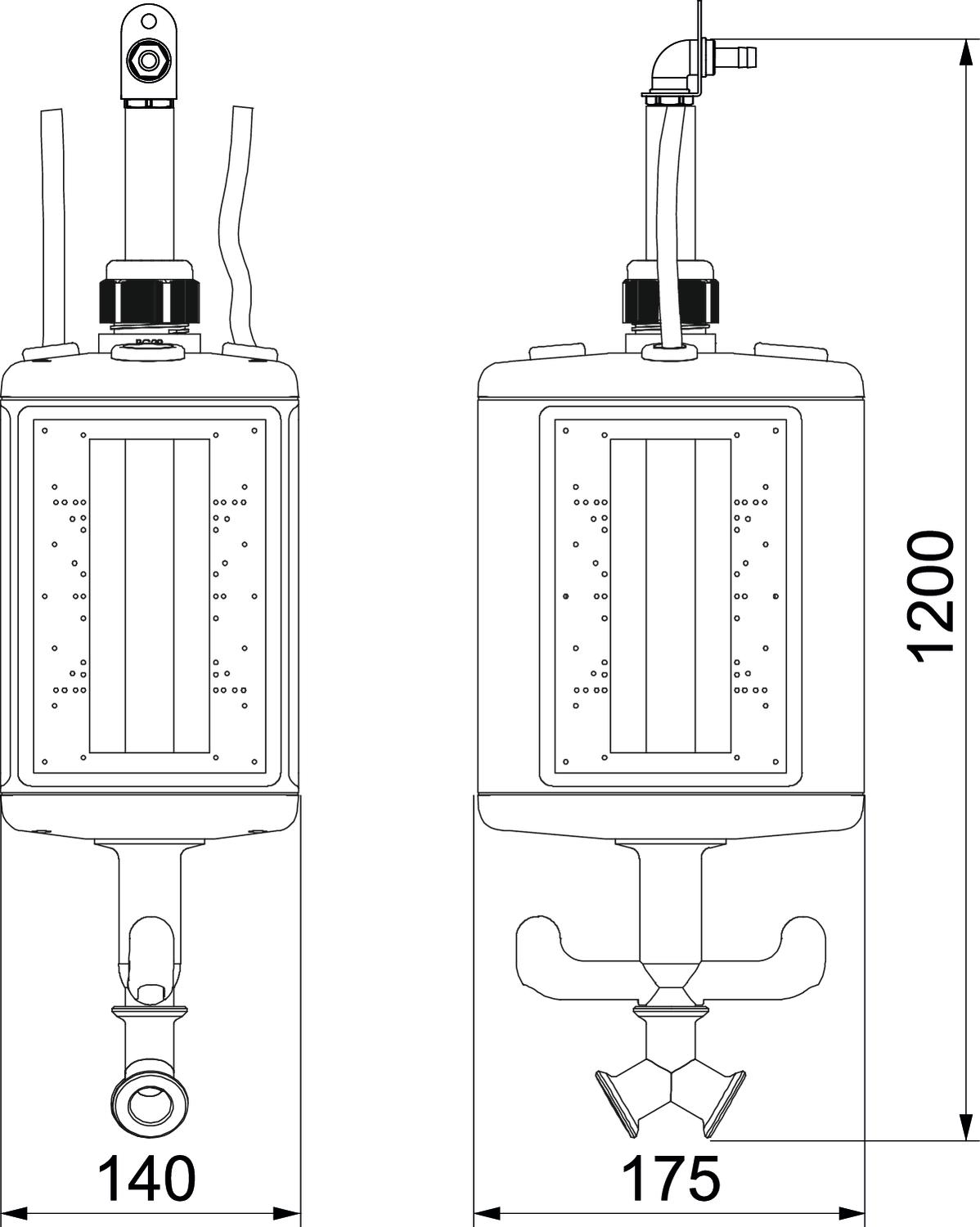

CEE socket, 125 A Without CEE socket, 16 A Without CEE socket, 32 A Without CEE socket, 63 A Without Colour Graphite black; RAL 9011 Depth 175 mm Dimension 175x135x1100 FI protection switch Without Handling abhängbar Height 1100 mm Material Polyamide Military version no Other installations and/or empty slots 8 Protection rating IP44 Supply/connection option Miscellaneous Width 140 mm - All types
- Downloads
-
Data sheet VHF-8L LG / 6109827 , 0.25MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity VHF-8L LG / 6109827 , 0.13MB , pdfRoHS Declaration of conformity VHF-8L LG / 6109827 , 0.13MB , pdfMounting instructions Mounting instructions, HoverCube (pre-terminated) , 3.74MB , pdf
